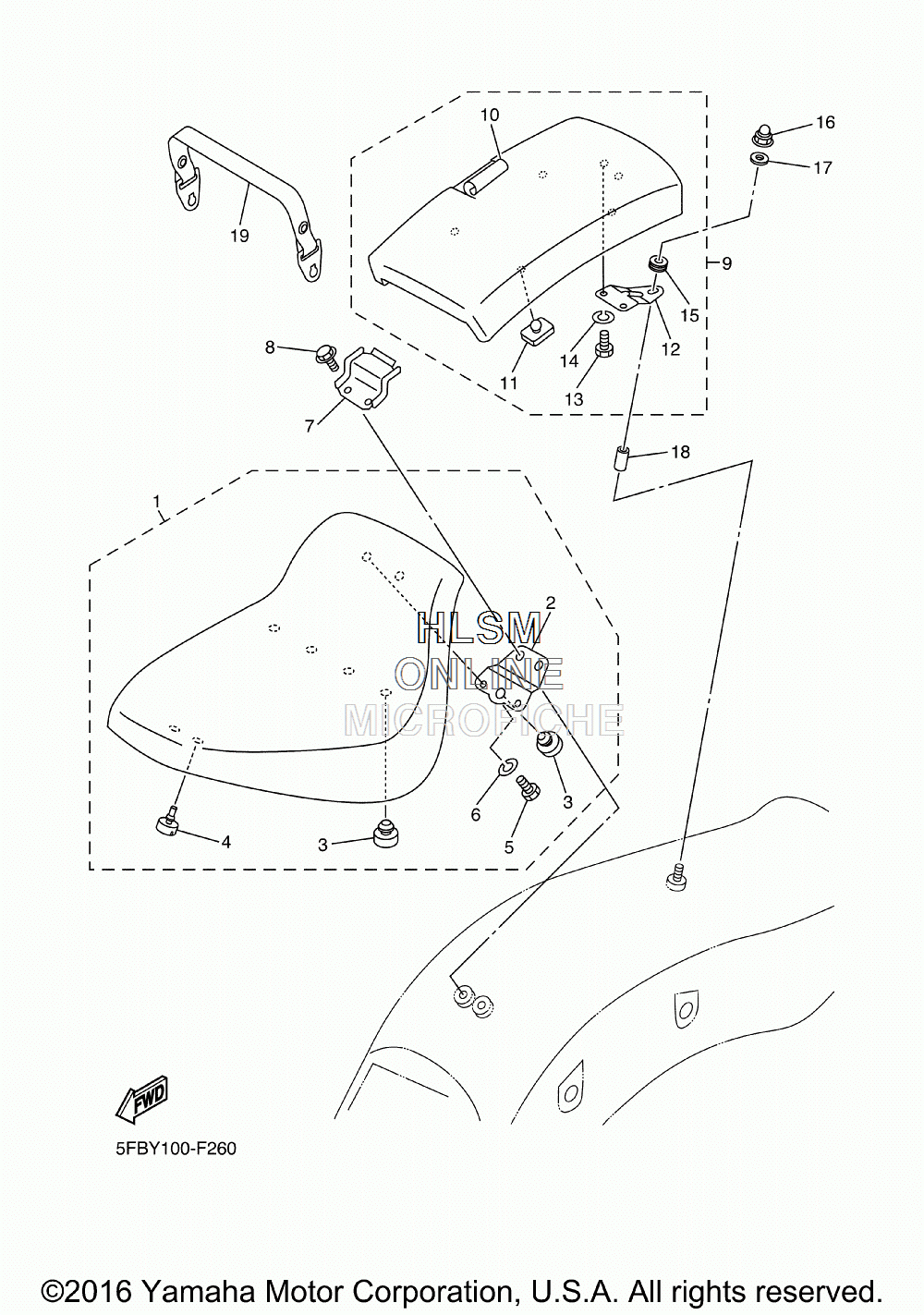

SEAT для Yamaha V STAR 650 CUSTOM MIDNIGHT [ XVS65WM/CM] (5FBY/5S11) - 2007 года выпуска
-
№АртикулНазвание
-
14VR-24710-20-00 SINGLE SEAT ASSYSINGLE SEAT ASSY
-
24TR-2475H-00-00 ...BRACKET, SEAT LEVER 1...BRACKET, SEAT LEVER 1
-
322W-24741-00-00 ...PAD, SEAT...PAD, SEAT
-
435T-24724-00-00 ...DAMPER, SEAT...DAMPER, SEAT
-
597007-06012-00 ...BOLT...BOLT
-
692907-06100-00 ...WASHER, SPRING...WASHER, SPRING
-
74TR-2475K-00-00 BRACKET 3BRACKET 3
-
891317-06025-00 BOLT, HEX. SOCKET HEADBOLT, HEX. SOCKET HEAD
-
94TR-24750-31-00 TANDEM SEAT ASSYTANDEM SEAT ASSY
-
104TR-24751-10-00 ...COVER, TANDEM SEAT...COVER, TANDEM SEAT
-
11509-24724-00-00 ...DAMPER, SEAT...DAMPER, SEAT
-
125FB-2475J-01-00 ...BRACKET, SEAT LEVER 2...BRACKET, SEAT LEVER 2
-
1397007-06012-00 ...BOLT...BOLT
-
1492907-06100-00 ...WASHER, SPRING...WASHER, SPRING
-
155YS-24742-00-00 ...GROMMET...GROMMET
-
1690176-08001-00 NUT, CROWNNUT, CROWN
-
1790201-08042-00 WASHER, PLATEWASHER, PLATE
-
1890387-081M9-00 COLLARCOLLAR
-
194TR-24720-00-00 SEAT BAND ASSYSEAT BAND ASSY
