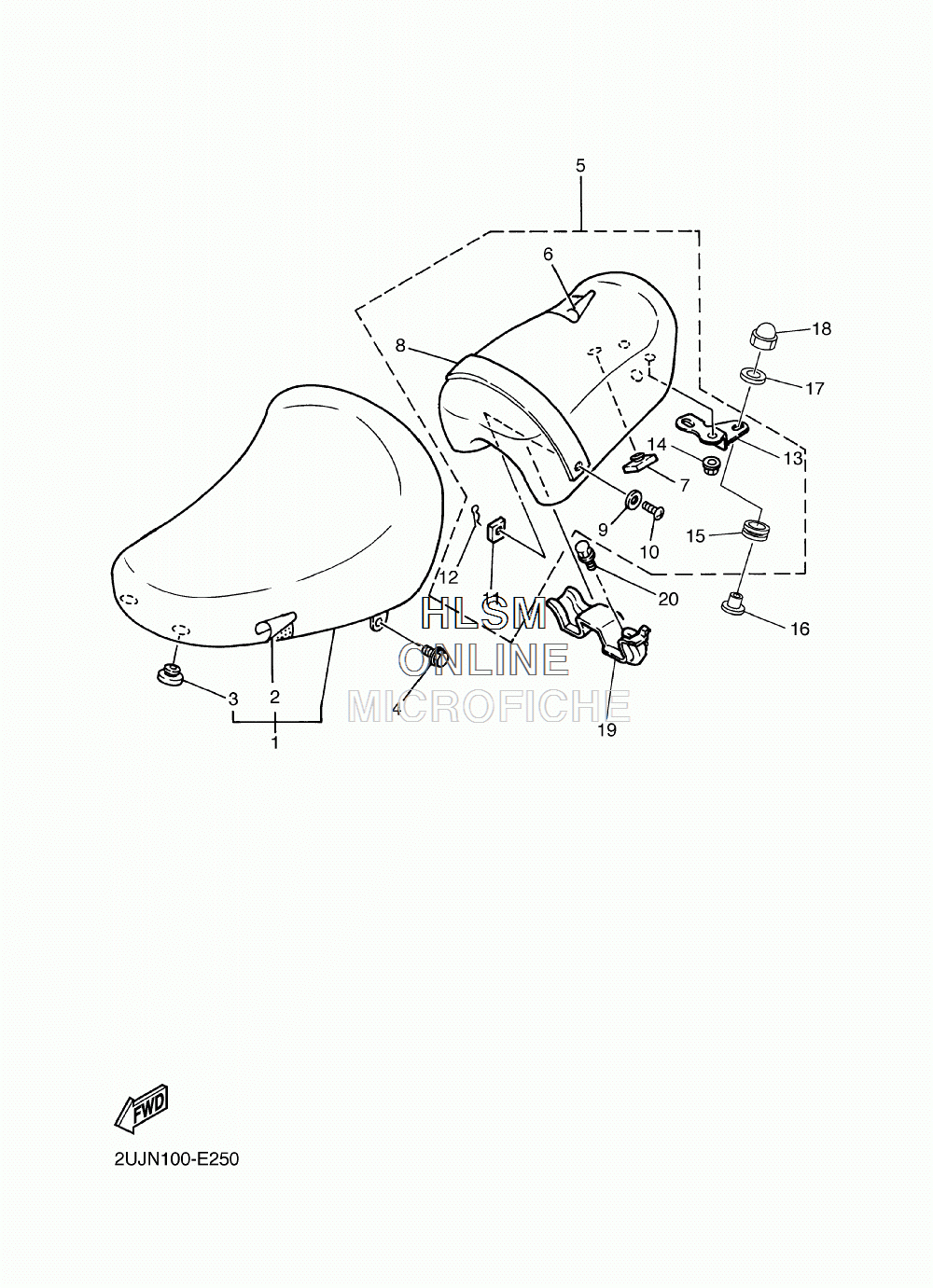

SEAT для Yamaha VIRAGO 250 (2UJS/3BGG) [XV250W/C] - 2007 года выпуска
-
№АртикулНазвание
-
12UJ-24710-00-00 SINGLE SEAT ASSYSINGLE SEAT ASSY
-
22UJ-24731-00-00 ...COVER, SEAT...COVER, SEAT
-
318A-24724-00-00 ...DAMPER, SEAT...DAMPER, SEAT
-
495807-06016-00 BOLT, FLANGEBOLT, FLANGE
-
52UJ-24750-10-00 TANDEM SEAT ASSYTANDEM SEAT ASSY
-
62UJ-24751-00-00 ...COVER, TANDEM SEAT...COVER, TANDEM SEAT
-
7509-24724-00-00 ...DAMPER, SEAT...DAMPER, SEAT
-
82UJ-24734-00-00 ...BAND, SEAT...BAND, SEAT
-
91WG-24712-00-00 ...PLATE...PLATE
-
1047X-24739-00-00 ...BOLT, SEAT FITTING...BOLT, SEAT FITTING
-
1190173-06015-00 ...NUT, SQUARE...NUT, SQUARE
-
1290468-10050-00 ...CLIP...CLIP
-
132UJ-2475J-00-00 ...BRACKET, SEAT LEVER 2...BRACKET, SEAT LEVER 2
-
1495707-06500-00 ...NUT, FLANGE...NUT, FLANGE
-
155YS-24742-00-00 ...GROMMET...GROMMET
-
165YS-2471N-00-00 COLLAR 1COLLAR 1
-
1790201-08042-00 WASHER, PLATEWASHER, PLATE
-
1890176-08001-00 NUT, CROWNNUT, CROWN
-
192UJ-2475H-00-00 BRACKET, SEAT LEVER 1BRACKET, SEAT LEVER 1
-
2095027-06012-00 BOLT, FLANGEBOLT, FLANGE
