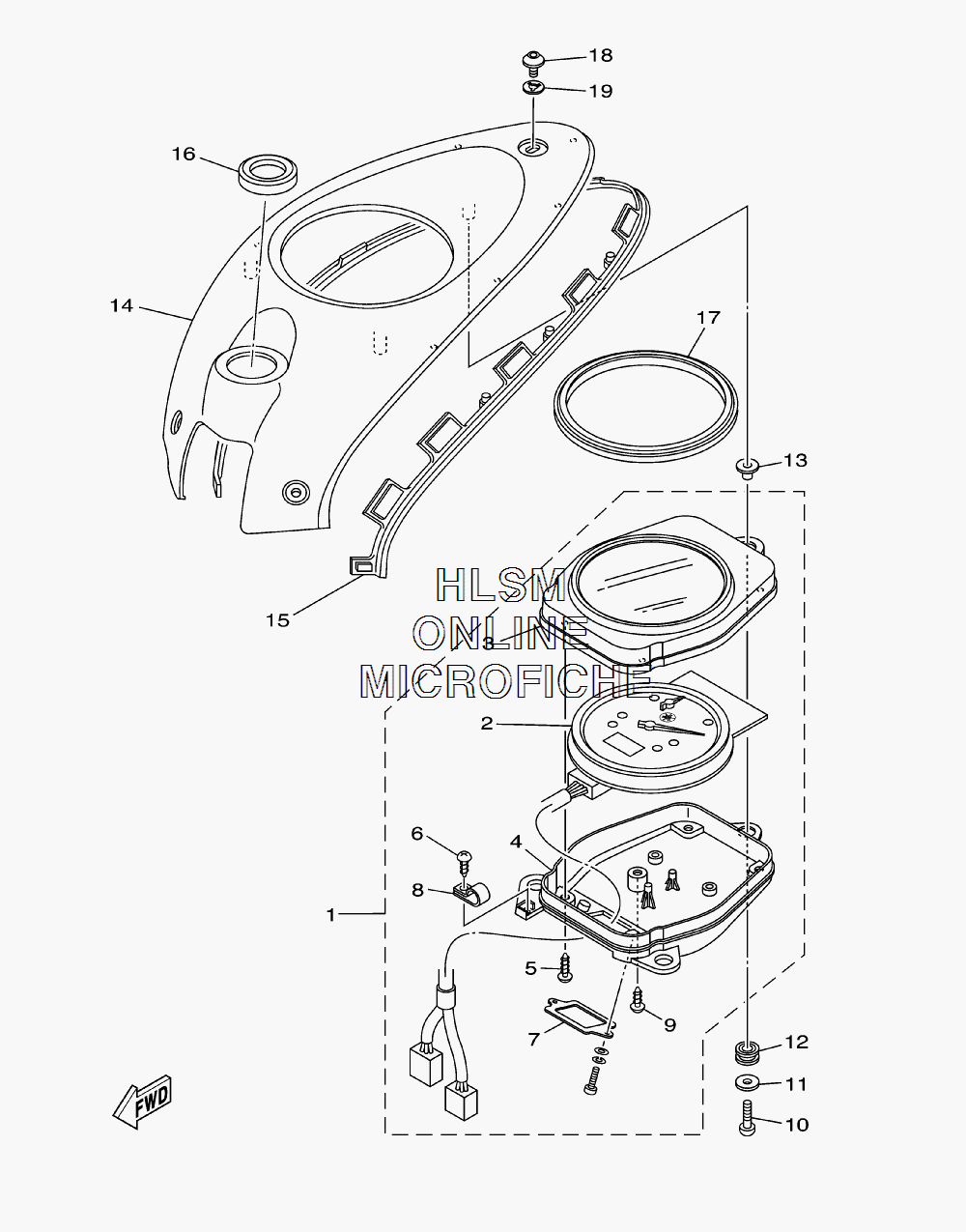

INSTRUMENT PANEL для Yamaha ROAD STAR S - 2008 года выпуска
-
№АртикулНазвание
-
15VN-83500-20-00 SPEEDOMETER ASSYSPEEDOMETER ASSY
-
25VN-83510-20-00 ...SPEEDOMETER ASSY...SPEEDOMETER ASSY
-
35VN-8353E-20-00 ...CASE, METER UPPER...CASE, METER UPPER
-
44WM-8353F-02-00 ...CASE, METER LOWER...CASE, METER LOWER
-
597707-40016-00 ...SCREW, TRUSS...SCREW, TRUSS
-
690164-04023-00 ...SCREW, TAPPING...SCREW, TAPPING
-
74WM-83519-00-00 ...BRACKET, METER...BRACKET, METER
-
85EL-8357E-00-00 ...CLAMP...CLAMP
-
997707-40010-00 ...SCREW, TRUSS...SCREW, TRUSS
-
1090157-05112-00 SCREW, PAN HEAD(3XV)SCREW, PAN HEAD(3XV)
-
1190201-05036-00 WASHER, PLATEWASHER, PLATE
-
124WM-83513-00-00 DAMPERDAMPER
-
1390387-050T5-00 COLLAR (82M)COLLAR (82M)
-
145VN-83559-00-00 COVER, METERCOVER, METER
-
154WM-28345-01-00 MOLE 1MOLE 1
-
164WM-28346-00-00 MOLE 2MOLE 2
-
174WM-28347-00-00 MOLE 3MOLE 3
-
1890149-06264-00 SCREW, SPEC'L SHAPESCREW, SPEC'L SHAPE
-
194U5-2176E-00-00 PLATEPLATE
