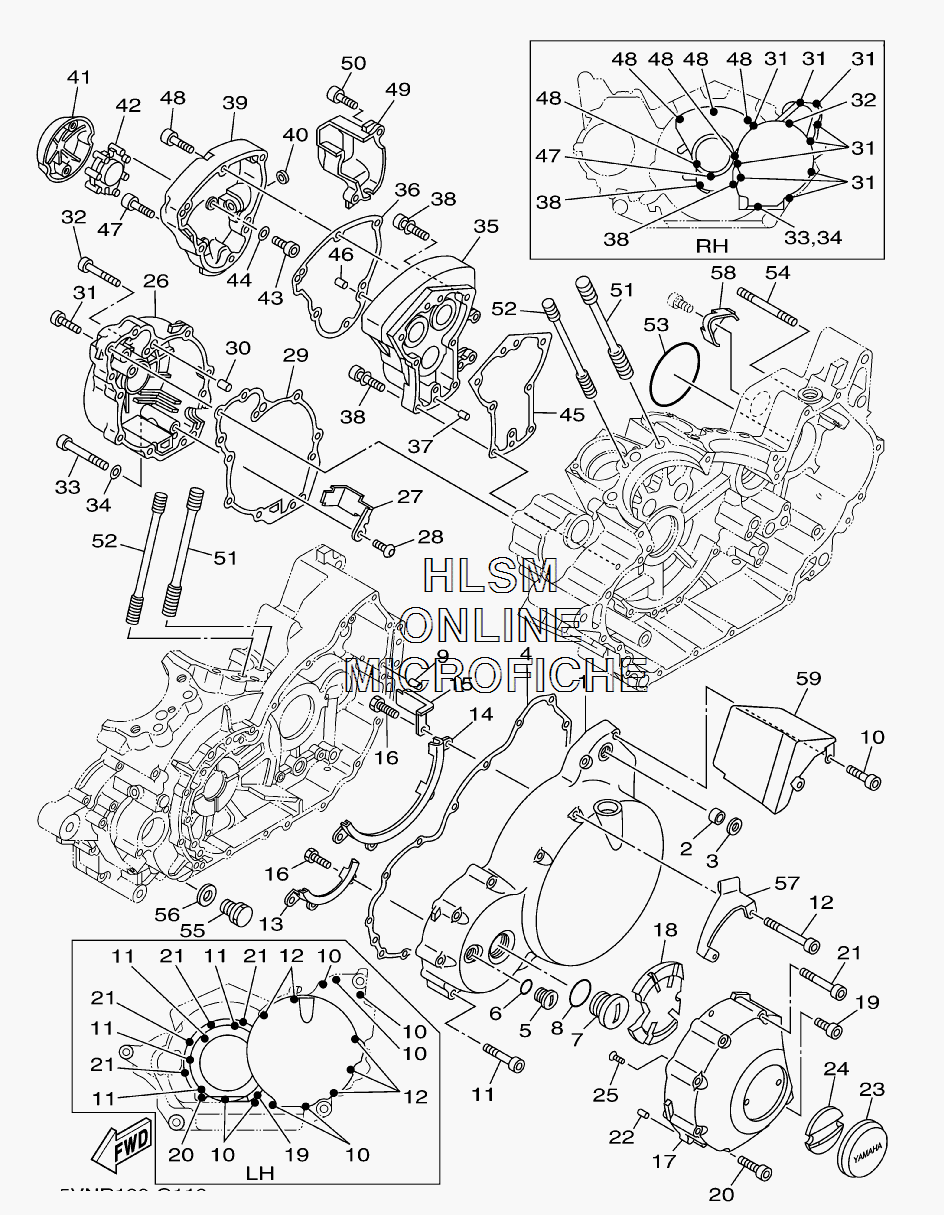

CRANKCASE COVER для Yamaha ROAD STAR XL - 2008 года выпуска
-
№АртикулНазвание
-
14WM-15411-00-00 COVER, CRANKCASE 1COVER, CRANKCASE 1
-
293317-11287-00 BEARINGBEARING
-
393102-12224-00 OIL SEAL,SD-TYPEOIL SEAL,SD-TYPE
-
45VN-15451-00-00 GASKET, CRANKCASE COVER 1GASKET, CRANKCASE COVER 1
-
590340-14117-00 PLUG, STRAIGHT SCREWPLUG, STRAIGHT SCREW
-
693210-14369-00 O-RINGO-RING
-
790340-32080-00 PLUG, STRAIGHT SCREWPLUG, STRAIGHT SCREW
-
893210-32172-00 O-RINGO-RING
-
999530-10114-00 PIN, DOWELPIN, DOWEL
-
1091314-06035-00 BOLT, SOCKET HEATBOLT, SOCKET HEAT
-
1191314-06045-00 BOLT, SOCKETBOLT, SOCKET
-
1291314-06070-00 BOLT, SOCKET HEADBOLT, SOCKET HEAD
-
134WM-15142-00-00 GUIDE 1GUIDE 1
-
144WM-15143-00-00 GUIDEGUIDE
-
155YU-15484-00-00 CLAMP 2CLAMP 2
-
1690149-06004-00 SCREWSCREW
-
175PX-15423-00-00 COVER 2COVER 2
-
184WM-15326-00-00 DAMPER 2DAMPER 2
-
1991314-06025-00 BOLT (3DM)BOLT (3DM)
-
2091314-06035-00 BOLT, SOCKET HEATBOLT, SOCKET HEAT
-
2191314-06060-00 BOLT, SOCKETBOLT, SOCKET
-
2291808-16023-00 PIN, DOWELPIN, DOWEL
-
234WM-15425-00-00 COVER, GENERATOR 2COVER, GENERATOR 2
-
244WM-15316-00-00 DAMPER 1DAMPER 1
-
2590151-05001-00 SCREW, COUNTERSUNKSCREW, COUNTERSUNK
-
265PX-15421-00-00 COVER, CRANKCASE 2COVER, CRANKCASE 2
-
275VN-15377-00-00 GUIDE, INLETGUIDE, INLET
-
2890149-06004-00 SCREWSCREW
-
295PX-15461-02-00 GASKET, CRANKCASE COVER 2GASKET, CRANKCASE COVER 2
-
3099530-10114-00 PIN, DOWELPIN, DOWEL
-
3191314-06030-00 BOLT, SOCKETBOLT, SOCKET
-
3291314-06050-00 BOLT (3JP)BOLT (3JP)
-
3391314-06065-00 BOLT, SOCKETBOLT, SOCKET
-
3490430-06014-00 GASKETGASKET
-
355PX-15431-10-00 COVER, CRANKCASE 3COVER, CRANKCASE 3
-
365YU-15462-01-00 GASKET, CRANKCASE COVER 3GASKET, CRANKCASE COVER 3
-
3793606-10227-00 PIN, DOWELPIN, DOWEL
-
3890110-06300-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
394WM-12278-01-00 COVER, DECOMP.COVER, DECOMP.
-
4093104-08089-00 OIL SEAL,SDO-TYPEOIL SEAL,SDO-TYPE
-
414WM-15427-00-00 COVER, CAP 2COVER, CAP 2
-
424WM-15335-00-00 DAMPER 3DAMPER 3
-
4390110-06004-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
4490430-06014-00 GASKETGASKET
-
455PX-12286-00-00 GASKET, DECOMPRESSIONGASKET, DECOMPRESSION
-
4693606-10227-00 PIN, DOWELPIN, DOWEL
-
4791314-06025-00 BOLT (3DM)BOLT (3DM)
-
4891314-06030-00 BOLT, SOCKETBOLT, SOCKET
-
495MB-12275-10-00 COVER, DECOMP LEVERCOVER, DECOMP LEVER
-
5091314-06025-00 BOLT (3DM)BOLT (3DM)
-
5190116-12240-00 BOLT, STUDBOLT, STUD
-
5290116-10344-00 BOLT, STUDBOLT, STUD
-
5393210-750A1-00 O-RINGO-RING
-
5490116-08065-00 BOLT, STUDBOLT, STUD
-
5590340-14132-00 PLUG, STRAIGHT SCREWPLUG, STRAIGHT SCREW
-
56214-11198-01-00 GASKETGASKET
-
574WM-15441-00-00 HOLDER, CLUTCH CABLEHOLDER, CLUTCH CABLE
-
585PX-15413-00-00 COVERCOVER
-
595VN-15470-00-00 AIR DUCT ASSYAIR DUCT ASSY
