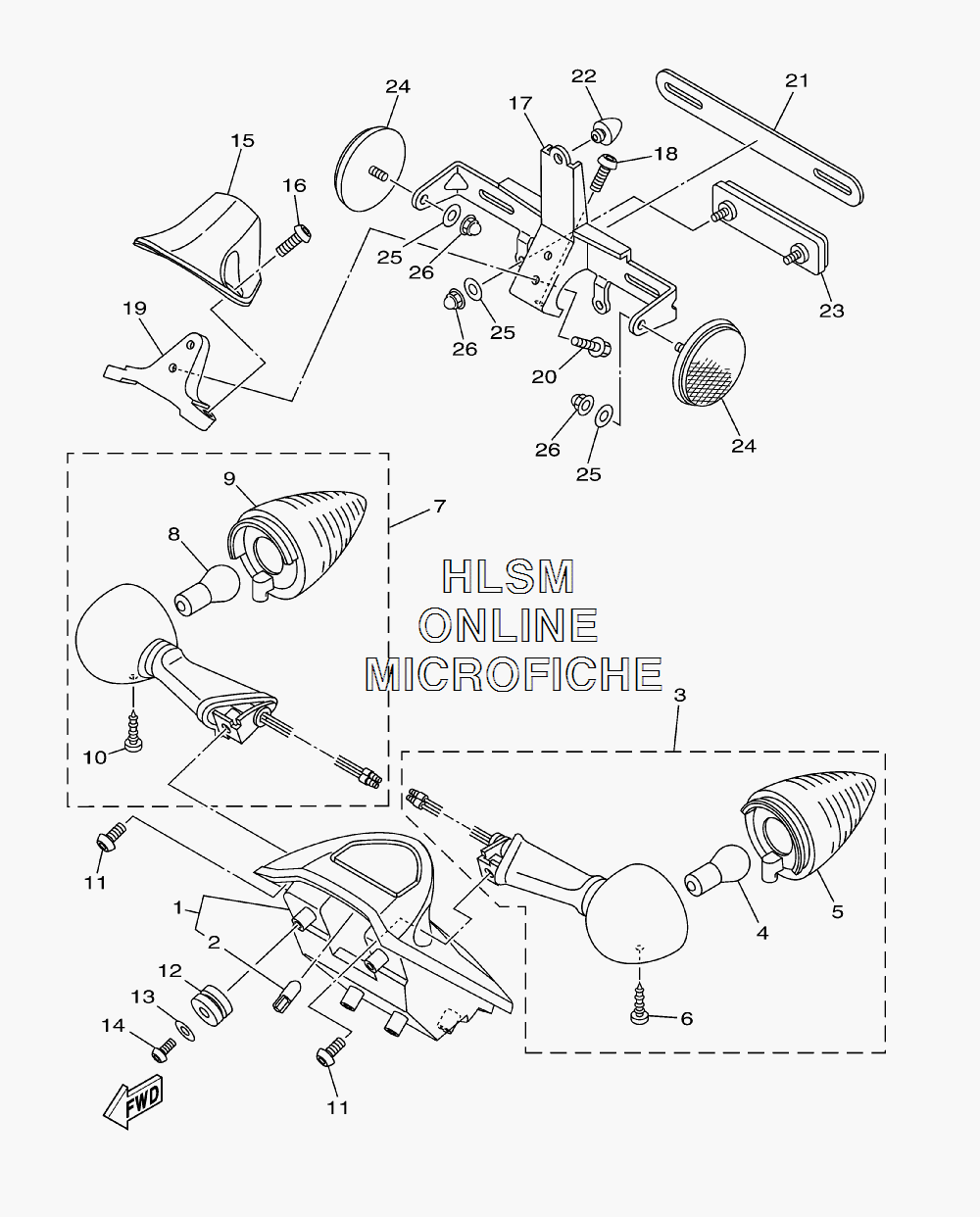

TAILLIGHT для Yamaha ROADLINER S - 2008 года выпуска
-
№АртикулНазвание
-
11D7-84710-01-00 TAILLIGHT UNIT ASSYTAILLIGHT UNIT ASSY
-
24SV-84347-00-00 ...BULB (12V-5W)...BULB (12V-5W)
-
31D7-83330-01-00 REAR FLASHER LIGHT ASSY 1REAR FLASHER LIGHT ASSY 1
-
45VN-83331-00-00 ...BULB, FLASHER (12V-21W)...BULB, FLASHER (12V-21W)
-
51D7-83332-01-00 ...LENS, FLASHER...LENS, FLASHER
-
697780-40010-00 ...SCREW, TAPPING...SCREW, TAPPING
-
71D7-83340-01-00 REAR FLASHER LIGHT ASSY 2REAR FLASHER LIGHT ASSY 2
-
85VN-83331-00-00 ...BULB, FLASHER (12V-21W)...BULB, FLASHER (12V-21W)
-
91D7-83342-01-00 ...LENS, FLASHER 2...LENS, FLASHER 2
-
1097780-40010-00 ...SCREW, TAPPING...SCREW, TAPPING
-
111D7-84752-00-00 BOLT, FITTINGBOLT, FITTING
-
125PX-84553-00-00 DAMPERDAMPER
-
1390201-05036-00 WASHER, PLATEWASHER, PLATE
-
1492012-05012-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
151D7-84558-00-00 STAY, LICENCE BRACKETSTAY, LICENCE BRACKET
-
1692014-08020-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
171D7-84551-00-00 BRACKET, LICENCEBRACKET, LICENCE
-
1892014-08020-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
191D7-8454L-00-00 BRACKETBRACKET
-
2095027-06012-00 BOLT,FLANGE (4MY)BOLT,FLANGE (4MY)
-
211D7-8454E-00-00 BRACKET, NUMBER PLATEBRACKET, NUMBER PLATE
-
2242U-21639-00-00 DAMPER 2DAMPER 2
-
231FK-85130-00-00 REAR REFLECTOR ASSYREAR REFLECTOR ASSY
-
24449-85131-02-00 REFLECTOR, REAR 1REFLECTOR, REAR 1
-
2590201-05020-00 WASHER, PLATEWASHER, PLATE
-
2690176-05003-00 NUT, CROWNNUT, CROWN
