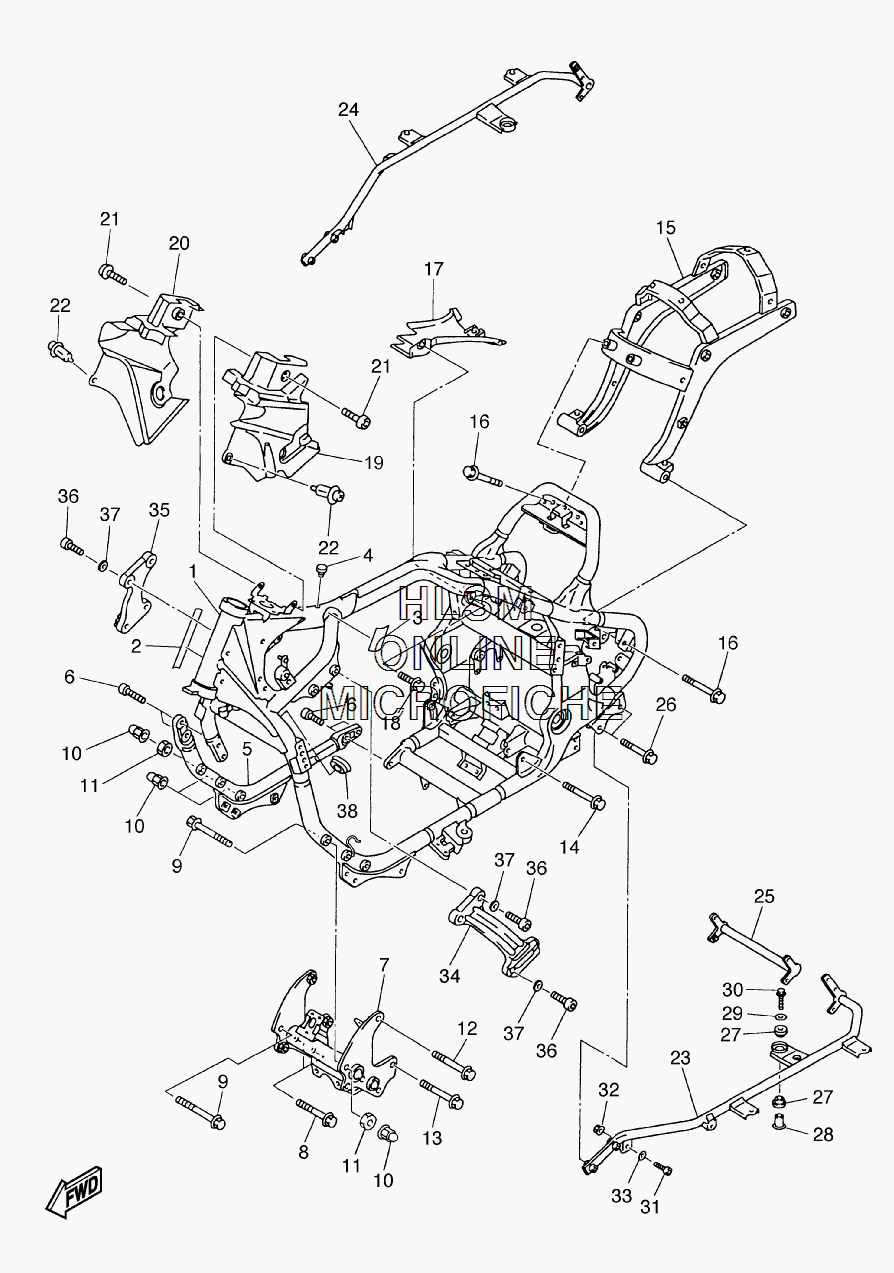

FRAME для Yamaha ROYAL STAR TOUR DELUXE - 2008 года выпуска
-
№АртикулНазвание
-
11D6-21110-00-00 FRAME COMP.FRAME COMP.
-
23HA-24141-00-00 PROTECTOR, FUEL TANKPROTECTOR, FUEL TANK
-
32AL-84553-00-00 DAMPERDAMPER
-
490338-07124-00 PLUG, SPEC'L SHAPEPLUG, SPEC'L SHAPE
-
54XY-21150-00-33 DOWN TUBE COMP. 2 (YB FOR DPBML)DOWN TUBE COMP. 2 (YB FOR DPBML)
-
690110-10161-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
74XY-2141V-01-00 CROSS BAR COMPLETECROSS BAR COMPLETE
-
895827-10070-00 BOLT, FLANGEBOLT, FLANGE
-
995827-10080-00 BOLT, FLANGEBOLT, FLANGE
-
1090176-10075-00 NUT, CROWNNUT, CROWN
-
1190170-10206-00 NUTNUT
-
1290105-10788-00 BOLT, WASHER BASEDBOLT, WASHER BASED
-
1390105-10788-00 BOLT, WASHER BASEDBOLT, WASHER BASED
-
1490105-12252-00 BOLT, WASHER BASEDBOLT, WASHER BASED
-
154XY-21190-02-00 REAR FRAME COMP.REAR FRAME COMP.
-
1695827-10035-00 BOLT, WASHER BASEDBOLT, WASHER BASED
-
174XY-2117M-00-00 COVER 2COVER 2
-
1890119-06236-00 BOLT WITH WASHERBOLT WITH WASHER
-
194XY-2171E-00-00 COVER, SIDE 5COVER, SIDE 5
-
204XY-2171X-00-00 COVER, SIDE 6COVER, SIDE 6
-
2190154-05013-00 SCREW, BINDINGSCREW, BINDING
-
2290269-06083-00 RIVETRIVET
-
234XY-21445-00-00 STAY, MUFFLER 1STAY, MUFFLER 1
-
244XY-21446-00-00 STAY, MUFFLER 2STAY, MUFFLER 2
-
254YE-2144F-01-00 STAY, MUFFLER 3STAY, MUFFLER 3
-
2690105-08310-00 BOLT, WASHER BASEDBOLT, WASHER BASED
-
2736Y-14747-00-00 DAMPER, MUFFLERDAMPER, MUFFLER
-
284G0-14638-00-00 COLLARCOLLAR
-
2990201-10669-00 WASHER, PLATEWASHER, PLATE
-
3095807-10040-00 BOLT, FLANGEBOLT, FLANGE
-
3191317-08035-00 BOLTBOLT
-
3295607-08200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
3390201-08326-00 WASHER, PLATEWASHER, PLATE
-
344XY-21315-20-00 STAY, ENGINE 2STAY, ENGINE 2
-
354XY-21316-20-00 STAY, ENGINE 3STAY, ENGINE 3
-
3691314-10035-00 BOLTBOLT
-
3792990-10600-00 WASHER, PLATEWASHER, PLATE
-
3890480-01141-00 GROMMETGROMMET
