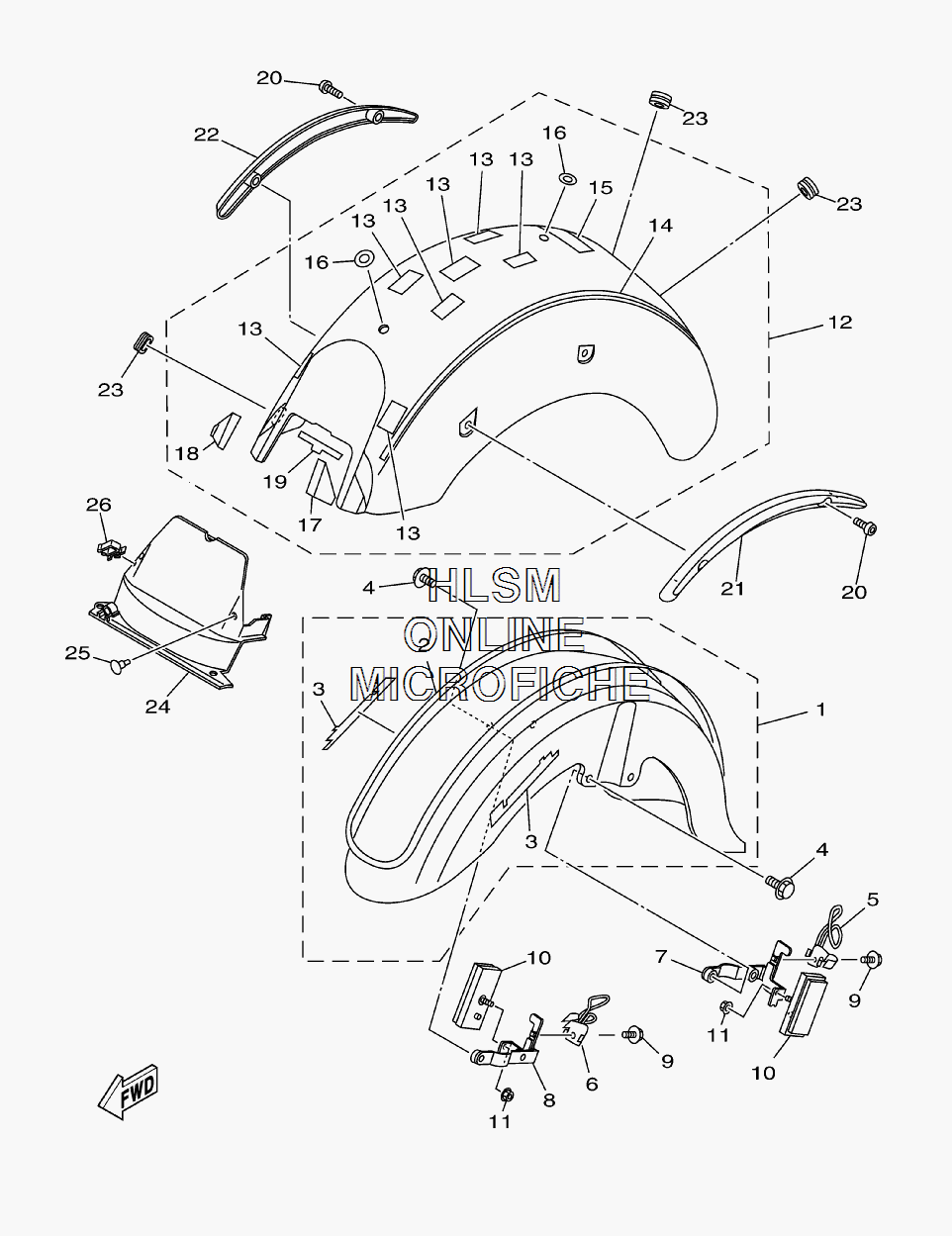

FENDER - FRONT / REAR для Yamaha V STAR 1100 SILVERADO - 2008 года выпуска
-
№АртикулНазвание
-
15KS-Y215R-0C-P2 FRONT FENDER ASSY (SMX)FRONT FENDER ASSY (SMX)
-
15KS-Y2151-1Y-P5 FRONT FENDER ASSY (DRMK)FRONT FENDER ASSY (DRMK)
-
25YS-21570-50-00 ...GRAPHIC SET, FRONT FENDER (SMX)...GRAPHIC SET, FRONT FENDER (SMX)
-
35BN-21565-00-00 ...EMBLEM, 2...EMBLEM, 2
-
495817-08020-00 BOLT,FLANGE (8AB)BOLT,FLANGE (8AB)
-
55KS-21597-00-00 HOLDER,WIRE 1HOLDER,WIRE 1
-
65KS-21598-00-00 HOLDER, WIRE 2HOLDER, WIRE 2
-
75KS-21587-00-00 STAY 1STAY 1
-
85KS-21588-00-00 STAY 2STAY 2
-
995807-06010-00 BOLT, FLANGEBOLT, FLANGE
-
1011H-85110-01-00 REFLECTOR ASSYREFLECTOR ASSY
-
1195707-05500-00 NUT, FLANGE 3GMNUT, FLANGE 3GM
-
125KS-W216R-0A-P2 REAR FENDER COMP. (SMX)REAR FENDER COMP. (SMX)
-
125KS-W216R-11-P5 REAR FENDER COMP. (DRMK)REAR FENDER COMP. (DRMK)
-
133SP-21732-00-00 ...SEAL 1...SEAL 1
-
145YS-2165A-50-00 ...GRAPHIC SET, REAR FENDER (SMX)...GRAPHIC SET, REAR FENDER (SMX)
-
151D6-2153E-00-00 ...EMBLEM, YAMAHA...EMBLEM, YAMAHA
-
164NK-21735-00-00 ...SEAL 2...SEAL 2
-
175KS-21669-00-00 ...SEAL...SEAL
-
185KS-21669-10-00 ...SEAL...SEAL
-
195KS-21669-20-00 ...SEAL...SEAL
-
2092014-08025-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
214WM-2164F-00-00 STAY 1STAY 1
-
224WM-2164G-00-00 STAY 2STAY 2
-
2390480-15061-00 GROMMETGROMMET
-
245KS-21629-00-00 GUARD, MUDGUARD, MUD
-
2590269-07077-00 RIVETRIVET
-
2690464-16021-00 CLAMPCLAMP
