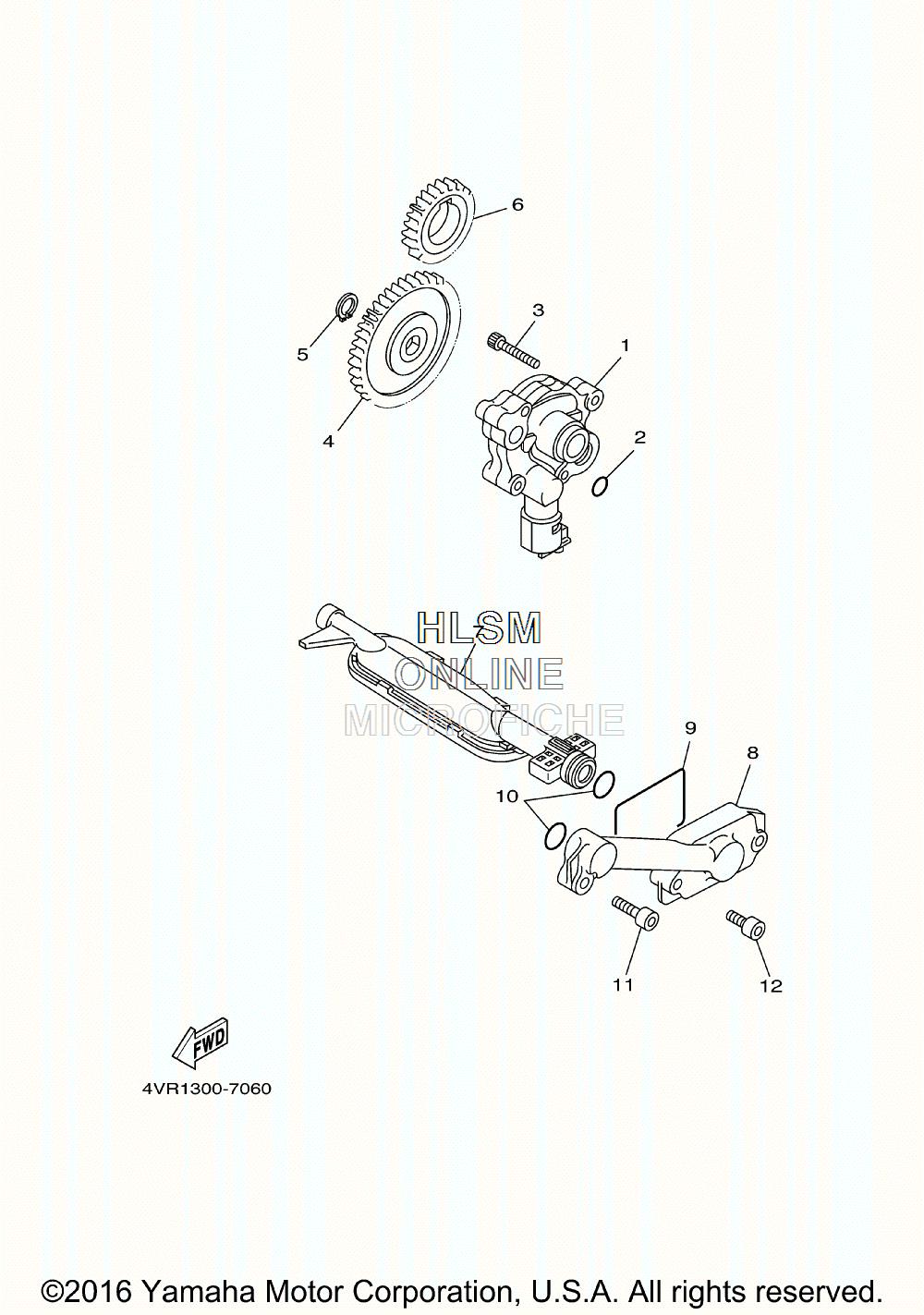

OIL PUMP для Yamaha V STAR 650 CLASSIC - 2008 года выпуска
-
№АртикулНазвание
-
14VR-13300-00-00 OIL PUMP ASSYOIL PUMP ASSY
-
293210-10096-00 O-RINGO-RING
-
391317-06030-00 BOLTBOLT
-
44VR-13325-00-00 GEAR, PUMP DRIVEN (39T)GEAR, PUMP DRIVEN (39T)
-
599009-11400-00 CIRCLIPCIRCLIP
-
622U-13324-00-00 GEAR, DRIVE (24T)GEAR, DRIVE (24T)
-
74TR-13410-00-00 STRAINER HOUSING ASSYSTRAINER HOUSING ASSY
-
84VR-13417-00-00 COVER, STRAINERCOVER, STRAINER
-
922U-13415-00-00 SEAL, OIL STRAINERSEAL, OIL STRAINER
-
1093210-15151-00 O-RINGO-RING
-
1191314-06025-00 BOLT (3DM)BOLT (3DM)
-
1291314-06020-00 BOLT (3JB)BOLT (3JB)
