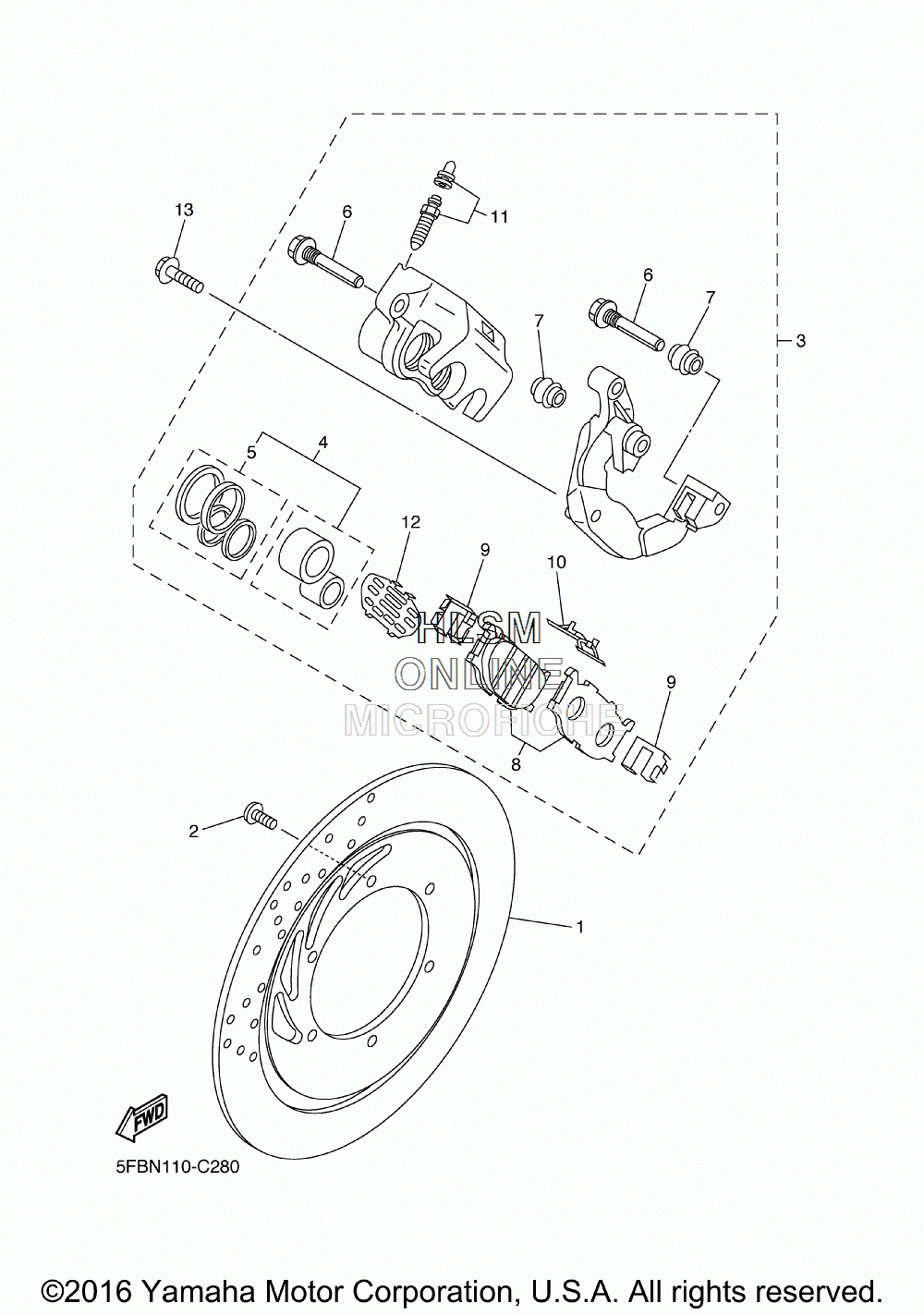

BRAKE - FRONT CALIPER для Yamaha V STAR 650 SILVERADO [ XVS65ATXB/CB/S/CS] (4C5L/4C5M) - 2008 года выпуска
-
№АртикулНазвание
-
15BN-2582U-00-00 DISC, BRAKE (RIGHT)DISC, BRAKE (RIGHT)
-
290109-083G4-00 BOLTBOLT
-
34WM-2580U-01-00 CALIPER ASSY (RIGHT)CALIPER ASSY (RIGHT)
-
43JB-W0057-00-00 ...PISTON ASSY, CALIPER...PISTON ASSY, CALIPER
-
53JB-W0047-00-00 ...CALIPER SEAL KIT...CALIPER SEAL KIT
-
65JW-25914-10-00 ...PIN, SLIDE...PIN, SLIDE
-
74TT-25937-00-00 ...BOOT 2...BOOT 2
-
84WM-W0045-00-00 ...BRAKE PAD KIT...BRAKE PAD KIT
-
94BP-25919-00-00 ...SUPPORT, PAD...SUPPORT, PAD
-
103YX-25929-00-00 ...SPRING, ANTI RATTLE...SPRING, ANTI RATTLE
-
1151L-W0048-00-00 ...BLEED SCREW KIT...BLEED SCREW KIT
-
125BN-25827-00-00 ...SHIM, CALIPER...SHIM, CALIPER
-
1390109-100G0-00 BOLTBOLT
