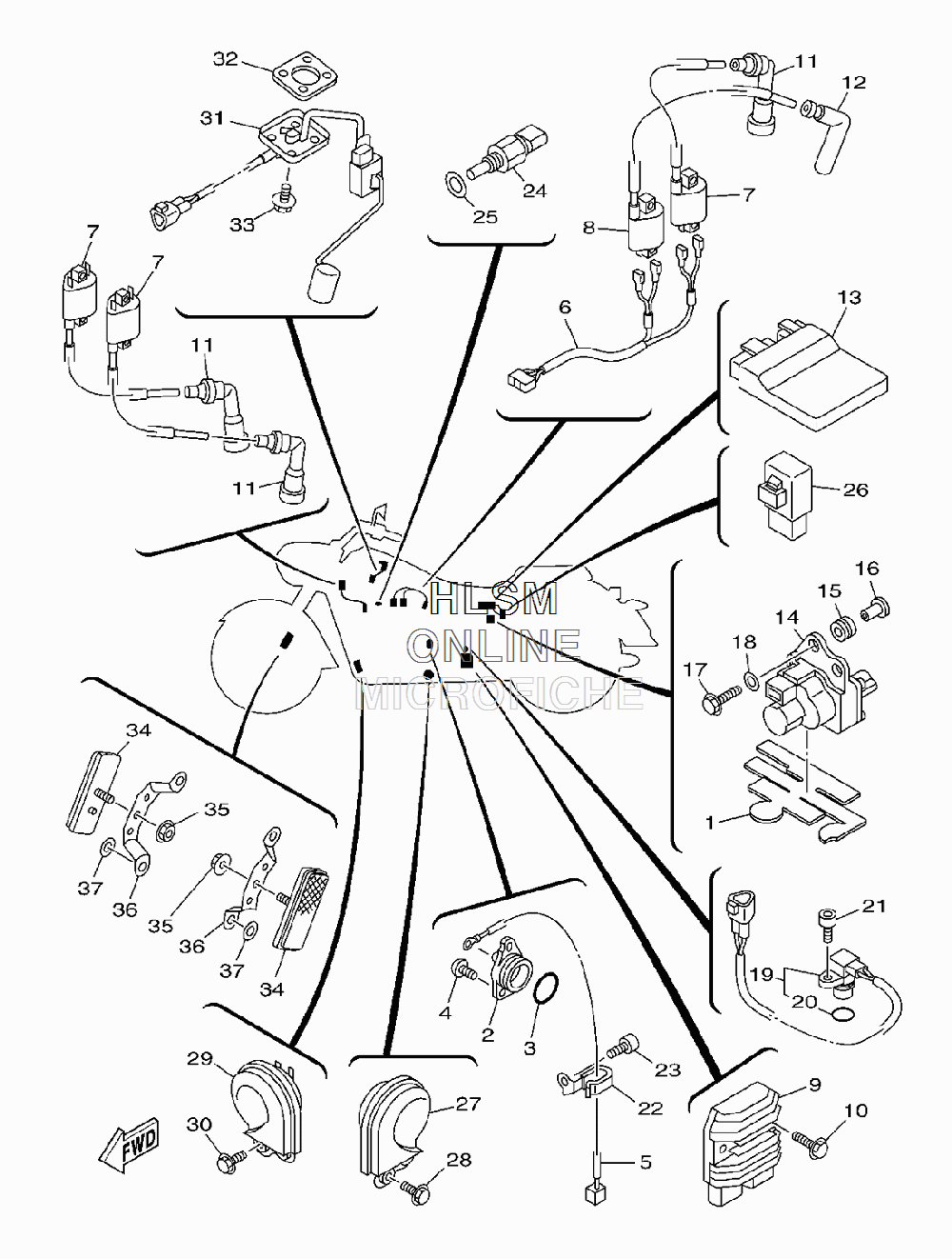

ELECTRICAL для Yamaha ROADLINER S - 2009 года выпуска
-
№АртикулНазвание
-
11D7-2177M-00-00 DAMPER, LOCATING 3DAMPER, LOCATING 3
-
21AE-82540-00-00 NEUTRAL SWITCH ASSYNEUTRAL SWITCH ASSY
-
393210-29196-00 O-RINGO-RING
-
490149-06069-00 SCREWSCREW
-
55C7-82509-00-00 WIRE, SUB LEADWIRE, SUB LEAD
-
61D7-82509-20-00 WIRE, SUB LEADWIRE, SUB LEAD
-
71D7-82310-01-00 IGNITION COIL ASSYIGNITION COIL ASSY
-
81D7-82310-10-00 IGNITION COIL ASSYIGNITION COIL ASSY
-
91D7-81960-00-00 RECTIFIER AND REGULATOR ASSYRECTIFIER AND REGULATOR ASSY
-
1095022-06025-00 BOLT, FLANGEBOLT, FLANGE
-
111D7-82370-00-00 PLUG CAP ASSYPLUG CAP ASSY
-
125VK-82370-00-00 PLUG CAP ASSYPLUG CAP ASSY
-
131D7-8591A-00-00 ENGINE CONTROL UNIT ASSYENGINE CONTROL UNIT ASSY
-
145VY-85820-00-00 SERVO MOTOR ASSYSERVO MOTOR ASSY
-
1590480-14005-00 GROMMETGROMMET
-
1690387-063E6-00 COLLARCOLLAR
-
1795022-06025-00 BOLT, FLANGEBOLT, FLANGE
-
1890201-06M31-00 WASHER, PLATEWASHER, PLATE
-
191D7-83755-00-00 SENSOR, SPEEDSENSOR, SPEED
-
204D9-81168-00-00 O-RINGO-RING
-
2190110-06168-00 BOLTBOLT
-
2290465-08127-00 CLAMPCLAMP
-
2390110-06227-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
245PX-83591-00-00 THERMO UNITTHERMO UNIT
-
2590201-12172-00 WASHER, PLATEWASHER, PLATE
-
261D7-83350-00-00 FLASHER RELAY ASSYFLASHER RELAY ASSY
-
271D7-83371-00-00 HORNHORN
-
2890119-06001-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
291D7-83371-10-00 HORNHORN
-
3090119-06001-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
311D7-85752-00-00 SENDER UNIT ASSY, FUEL METERSENDER UNIT ASSY, FUEL METER
-
325G3-85753-00-00 GASKET, SENDER UNITGASKET, SENDER UNIT
-
3390119-05071-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
3411H-85110-01-00 REFLECTOR ASSYREFLECTOR ASSY
-
3595607-05200-00 NUT, U FLANGENUT, U FLANGE
-
361D7-85112-00-00 BRACKET, REFLECTOR 1BRACKET, REFLECTOR 1
-
3790201-112U6-00 WASHER, PLATEWASHER, PLATE
