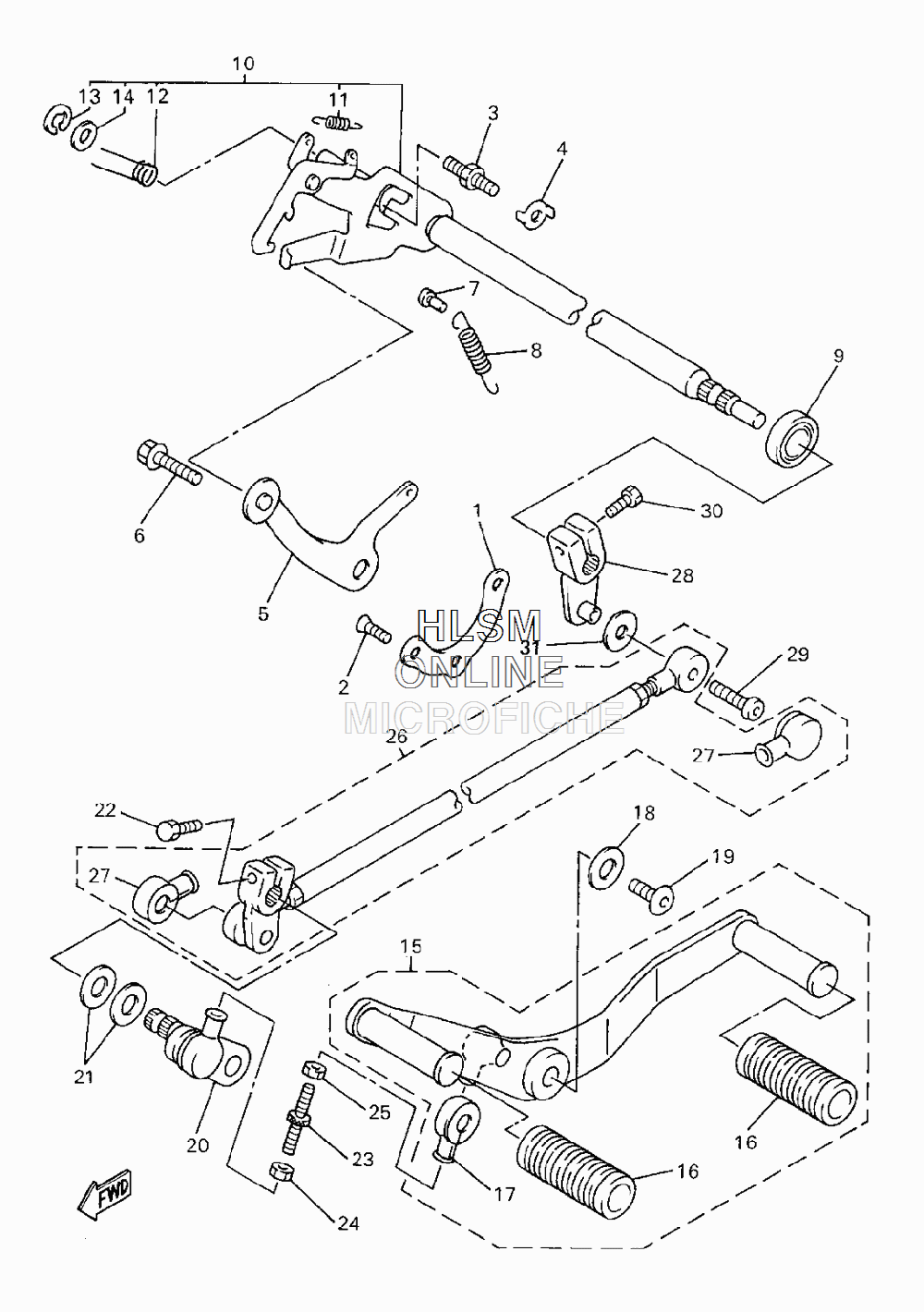

SHIFT SHAFT для Yamaha ROYAL STAR VENTURE S - 2009 года выпуска
-
№АртикулНазвание
-
126H-18536-00-00 STOPPER, SHIFT BARSTOPPER, SHIFT BAR
-
290151-06041-00 SCREW,FLATHEAD(4EJ)SCREW,FLATHEAD(4EJ)
-
390109-08050-00 BOLTBOLT
-
490215-08115-00 WASHER, LOCKWASHER, LOCK
-
526H-18140-02-00 STOPPER LEVER ASSYSTOPPER LEVER ASSY
-
690109-063F8-00 BOLTBOLT
-
7132-16346-00-00 HOOK, SPRINGHOOK, SPRING
-
890507-14064-00 SPRING, TENSIONSPRING, TENSION
-
993102-14209-00 OIL SEALOIL SEAL
-
104NK-18101-01-00 SHIFT SHAFT ASSYSHIFT SHAFT ASSY
-
1190506-08227-00 SPRING, TENSIONSPRING, TENSION
-
1290508-32588-00 SPRING, TORSIONSPRING, TORSION
-
1399001-10600-00 CIRCLIPCIRCLIP
-
1490201-127E1-00 WASHER, PLATEWASHER, PLATE
-
154XY-18110-00-00 SHIFT PEDAL ASSYSHIFT PEDAL ASSY
-
164NK-18113-10-00 COVER, SHIFT PEDALCOVER, SHIFT PEDAL
-
172H9-18154-00-00 COVER, DUSTCOVER, DUST
-
1890201-06070-00 WASHER, PLATEWASHER, PLATE
-
1990149-06280-00 SCREWSCREW
-
204NK-18197-01-00 SHAFTSHAFT
-
2190201-12688-00 WASHER, PLATEWASHER, PLATE
-
2297024-06020-00 BOLTBOLT
-
234NK-18115-00-00 ROD, SHIFTROD, SHIFT
-
2495304-06700-00 NUTNUT
-
2590170-06228-00 NUT (COUNTER CLOCKWISE)NUT (COUNTER CLOCKWISE)
-
264NK-18150-02-00 SHIFT LEVER ASSYSHIFT LEVER ASSY
-
272H9-18154-00-00 COVER, DUSTCOVER, DUST
-
284NK-18151-01-00 LEVER, SHIFT 3LEVER, SHIFT 3
-
2990149-06229-00 SCREWSCREW
-
3097027-06020-00 BOLT, HEXAGONBOLT, HEXAGON
-
3190201-06589-00 WASHER, PLATEWASHER, PLATE
