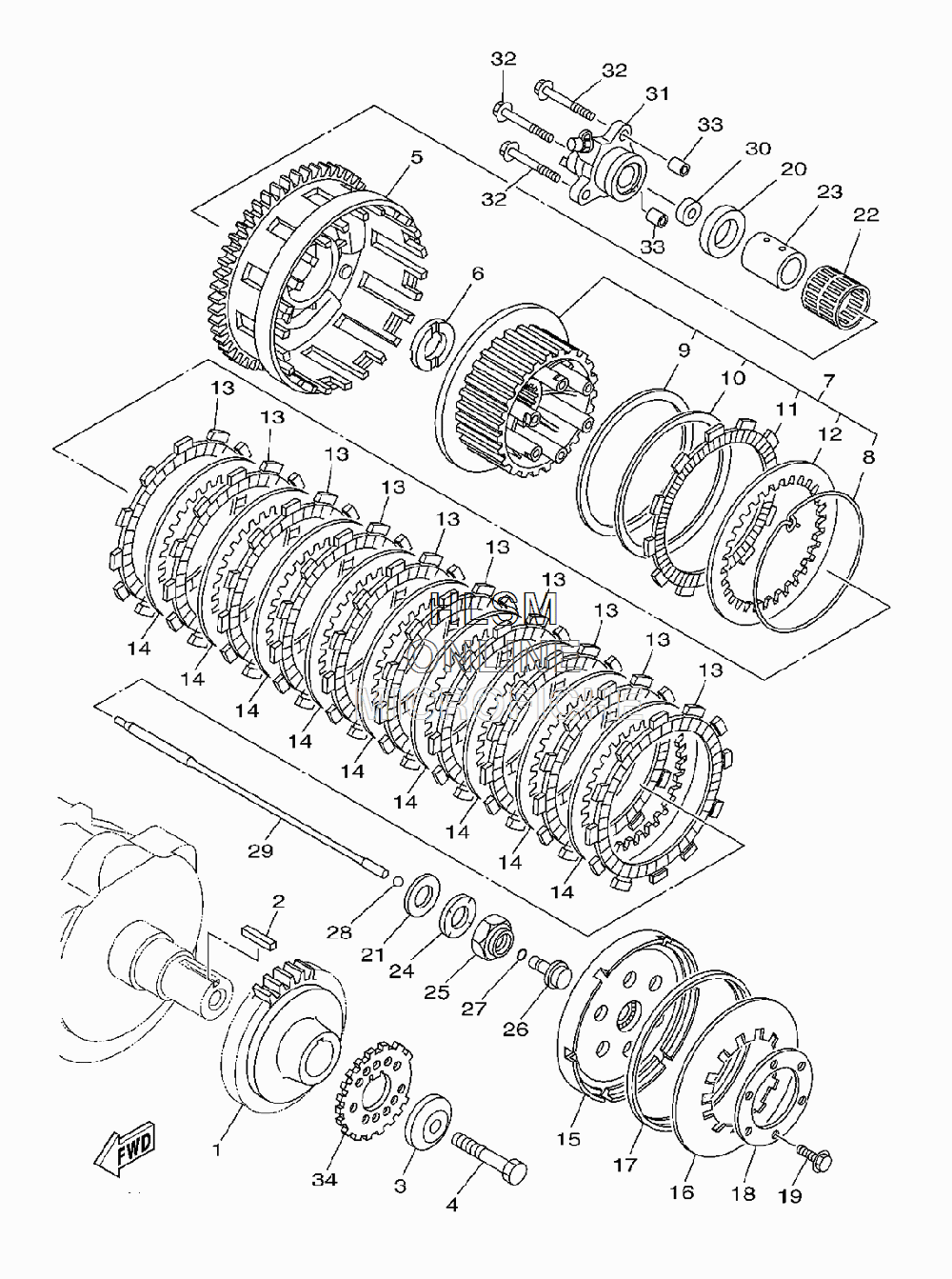

CLUTCH для Yamaha STRATOLINER S - 2009 года выпуска
-
№АртикулНазвание
-
11D7-16111-00-00 GEAR, PRIMARY DRIVEGEAR, PRIMARY DRIVE
-
24WM-16193-00-00 KEY, FEATHERKEY, FEATHER
-
34WM-16181-00-00 SPACER 1SPACER 1
-
490105-12059-00 BOLT, FLANGEBOLT, FLANGE
-
51D7-16150-00-00 PRIMARY DRIVEN GEAR COMP.PRIMARY DRIVEN GEAR COMP.
-
61D7-16154-00-00 PLATE, THRUST 1PLATE, THRUST 1
-
71D7-16370-00-00 CLUTCH BOSS ASSYCLUTCH BOSS ASSY
-
82H7-16385-00-00 RING, CLUTCH BOSSRING, CLUTCH BOSS
-
936Y-16384-00-00 PLATE, SEATPLATE, SEAT
-
1036Y-16383-00-00 SPRING, CLUTCH BOSSSPRING, CLUTCH BOSS
-
114XV-16331-00-00 PLATE, FRICTION 2PLATE, FRICTION 2
-
122H7-16325-00-00 PLATE, CLUTCH 2PLATE, CLUTCH 2
-
135YU-16321-00-00 PLATE, FRICTIONPLATE, FRICTION
-
142H7-16325-00-00 PLATE, CLUTCH 2PLATE, CLUTCH 2
-
151D7-16350-00-00 PRESSURE PLATE ASSYPRESSURE PLATE ASSY
-
165C7-16334-00-00 SPRING, CLUTCH 2SPRING, CLUTCH 2
-
1736Y-16335-00-00 HOUSING, SPRINGHOUSING, SPRING
-
181TX-16352-00-00 PLATE, PRESSURE 2PLATE, PRESSURE 2
-
1995812-06025-00 BOLT, FLANGEBOLT, FLANGE
-
201D7-16164-00-00 PLATE, THRUST 2PLATE, THRUST 2
-
2190201-22013-00 WASHER, PLATEWASHER, PLATE
-
2293310-33559-00 BEARINGBEARING
-
2390387-28006-00 COLLARCOLLAR
-
2490208-22003-00 WASHER, CONICAL SPRINGWASHER, CONICAL SPRING
-
2590179-22010-00 NUTNUT
-
264KG-16356-00-00 ROD, PUSH 1ROD, PUSH 1
-
2793210-06632-00 O-RINGO-RING
-
2893511-32017-00 BALL 11/32BALL 11/32
-
291D7-16357-00-00 ROD, PUSH 2ROD, PUSH 2
-
3093109-08061-00 OIL SEALOIL SEAL
-
311D7-16381-00-00 PUSH LEVER COMP.PUSH LEVER COMP.
-
3295814-06055-00 BOLT, FLANGEBOLT, FLANGE
-
3399530-08012-00 PIN, DOWELPIN, DOWEL
-
341D7-81673-01-00 ROTORROTOR
