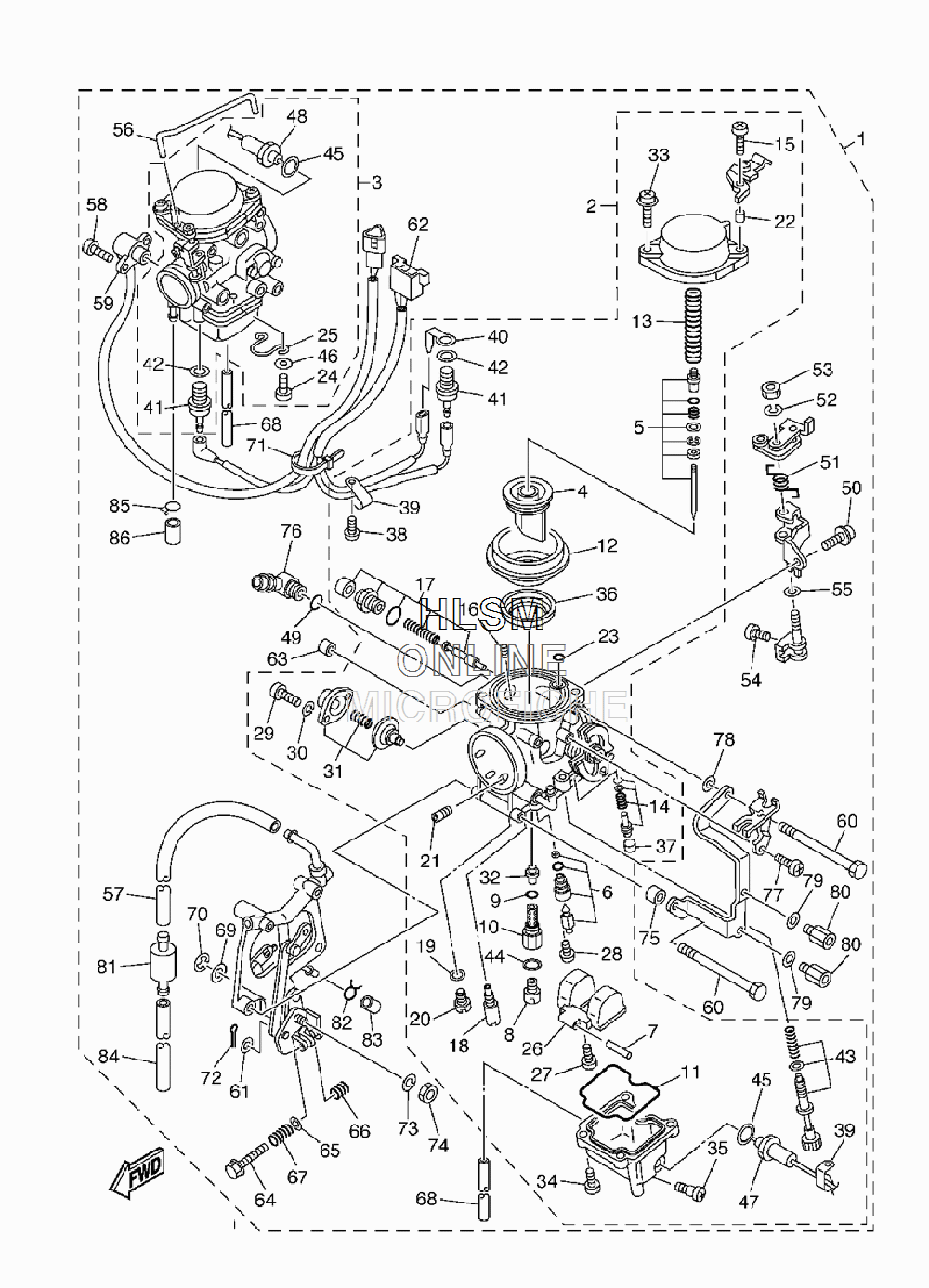

CARBURETOR для Yamaha V STAR 1100 CUSTOM - 2009 года выпуска
-
№АртикулНазвание
-
15YS-14900-00-00 CARBURETOR ASSY FOR YCR (CALIF. ONLY)CARBURETOR ASSY FOR YCR (CALIF. ONLY)
-
15YS-14906-00-00 CARBURETOR ASSY FOR YR (EXCEPT CALIF.)CARBURETOR ASSY FOR YR (EXCEPT CALIF.)
-
25YS-14901-00-00 CARBURETOR ASSY #1 (REAR)CARBURETOR ASSY #1 (REAR)
-
35YS-14902-00-00 CARBURETOR ASSY #2 (FRONT)CARBURETOR ASSY #2 (FRONT)
-
45EL-14112-00-00 VALVE, THROTTLE 1VALVE, THROTTLE 1
-
55EL-1490J-00-00 NEEDLE SETNEEDLE SET
-
65EL-14107-12-00 NEEDLE VALVE SETNEEDLE VALVE SET
-
7127-14186-00-00 PIN, FLOATPIN, FLOAT
-
83G2-1423A-73-00 JET, MAIN (#112.5) #1 (REAR)JET, MAIN (#112.5) #1 (REAR)
-
83G2-14231-23-00 JET, MAIN (#115) #2 (FRONT)JET, MAIN (#115) #2 (FRONT)
-
9583-14561-00-00 O-RINGO-RING
-
105KS-14261-00-00 HOLDERHOLDER
-
115DM-14561-00-00 O-RINGO-RING
-
125EL-24411-00-00 DIAPHRAGMDIAPHRAGM
-
134KM-14933-00-00 SPRING, DIAPHRAGMSPRING, DIAPHRAGM
-
144XY-14105-00-00 PILOT SCREW SETPILOT SCREW SET
-
1597885-05016-00 SCREW, PAN HEAD #1 (REAR)SCREW, PAN HEAD #1 (REAR)
-
161HX-14231-29-00 JET, MAIN (#145)JET, MAIN (#145)
-
175EL-1410A-00-00 STARTER SETSTARTER SET
-
184KM-14142-17-00 JET, PILOT (#17.5)JET, PILOT (#17.5)
-
195EL-14918-00-00 RINGRING
-
203G2-1423A-59-00 JET, MAIN (#42.5)JET, MAIN (#42.5)
-
211HX-1423E-25-00 JET, MAIN (#63.8)JET, MAIN (#63.8)
-
224KM-14194-00-00 RINGRING
-
23354-14147-00-00 O-RINGO-RING
-
2498517-04012-00 SCREW, PAN HEAD #2 (FRONT)SCREW, PAN HEAD #2 (FRONT)
-
2533M-14139-00-00 CLIP, PIPE #2 (FRONT)CLIP, PIPE #2 (FRONT)
-
265DM-14985-00-00 FLOATFLOAT
-
2798507-04008-00 SCREW, PAN HEADSCREW, PAN HEAD
-
281FN-14565-00-00 SCREWSCREW
-
2998507-04014-00 SCREW, PAN HEADSCREW, PAN HEAD
-
3092907-04100-00 WASHER, SPRINGWASHER, SPRING
-
315EL-1490H-00-00 DIAPHRAGM SET 5DIAPHRAGM SET 5
-
325DM-14141-40-00 NOZZLE, MAINNOZZLE, MAIN
-
334KM-14216-00-00 SCREW #1 (REAR)SCREW #1 (REAR)
-
334KM-14216-00-00 SCREW #2 (FRONT)SCREW #2 (FRONT)
-
3498507-04010-00 SCREW, PAN HEAD #2 (FRONT)SCREW, PAN HEAD #2 (FRONT)
-
3498507-04010-00 SCREW, PAN HEAD #1 (REAR)SCREW, PAN HEAD #1 (REAR)
-
3512R-14191-00-00 PLUG, DRAINPLUG, DRAIN
-
365EL-14561-00-00 O-RINGO-RING
-
373F9-14118-00-00 CAPCAP
-
3898517-04006-00 SCREW, PAN HEAD #1 (REAR)SCREW, PAN HEAD #1 (REAR)
-
393XV-14243-00-00 PLATE #1 (REAR)PLATE #1 (REAR)
-
404DH-82103-00-00 TERMINAL 1 #1 (REAR)TERMINAL 1 #1 (REAR)
-
415FU-83790-20-00 HEATER ASSY (30W)HEATER ASSY (30W)
-
4290201-08016-00 WASHER, PLATEWASHER, PLATE
-
435EL-14103-00-00 THROTTLE SCREW SET #1 (REAR)THROTTLE SCREW SET #1 (REAR)
-
4422U-14561-00-00 O-RINGO-RING
-
45256-14956-01-00 WASHERWASHER
-
4692990-04600-00 WASHER, PLATE #2 (FRONT)WASHER, PLATE #2 (FRONT)
-
475KS-1410H-00-00 FUEL CUT SOLENOID VALVE #1 (REAR)FUEL CUT SOLENOID VALVE #1 (REAR)
-
485KS-1410H-10-00 FUEL CUT SOLENOID VALVE #2 (FRONT)FUEL CUT SOLENOID VALVE #2 (FRONT)
-
493LN-1416A-00-00 O-RINGO-RING
-
504SV-24453-00-00 SCREWSCREW
-
515EL-14935-00-00 SPRINGSPRING
-
5292990-05100-00 WASHER, SPRINGWASHER, SPRING
-
5395317-05700-00 NUTNUT
-
5411H-14991-00-00 SCREWSCREW
-
5531H-14194-00-00 RINGRING
-
565EL-14577-00-00 RODROD
-
575EL-14987-10-00 HOSEHOSE
-
584WM-14565-00-00 SCREWSCREW
-
595EL-85885-00-00 THROTTLE SENSOR ASSYTHROTTLE SENSOR ASSY
-
605EL-14592-00-00 SCREWSCREW
-
614NK-14285-00-00 WASHERWASHER
-
625KS-81517-00-00 WIRE, SUB LEADWIRE, SUB LEAD
-
635EL-14196-00-00 PIPEPIPE
-
645EL-14991-00-00 SCREWSCREW
-
6522F-14117-00-00 WASHER, PLUG SCREWWASHER, PLUG SCREW
-
665EL-14212-00-00 SPRING, PILOT ADJUSTINGSPRING, PILOT ADJUSTING
-
673F7-14133-00-00 SPRING, THROTTLE STOPSPRING, THROTTLE STOP
-
685EL-14197-10-00 PIPEPIPE
-
691A8-14953-00-00 WASHERWASHER
-
70812-14137-00-00 CLIPCLIP
-
7135H-14139-00-00 CLIP, PIPECLIP, PIPE
-
7291492-10008-00 PIN, COTTERPIN, COTTER
-
7392907-06100-00 WASHER, SPRINGWASHER, SPRING
-
7495382-06700-00 NUTNUT
-
755EL-14149-00-00 PIPEPIPE
-
765EL-14251-00-00 NIPPLENIPPLE
-
7798507-04010-00 SCREW, PAN HEADSCREW, PAN HEAD
-
7892990-06600-00 WASHER, PLATEWASHER, PLATE
-
791FK-14179-00-00 WASHER, STARTER LEVERWASHER, STARTER LEVER
-
805EL-14592-10-00 SCREWSCREW
-
814X7-2149Y-00-00 FILTER ASSYFILTER ASSY
-
828A7-14139-00-00 CLIP, PIPECLIP, PIPE
-
83895-14169-00-00 CAPCAP
-
845EL-14987-20-00 HOSEHOSE
-
8555X-14937-00-00 CLIPCLIP
-
865GK-1491A-00-00 CAPCAP
