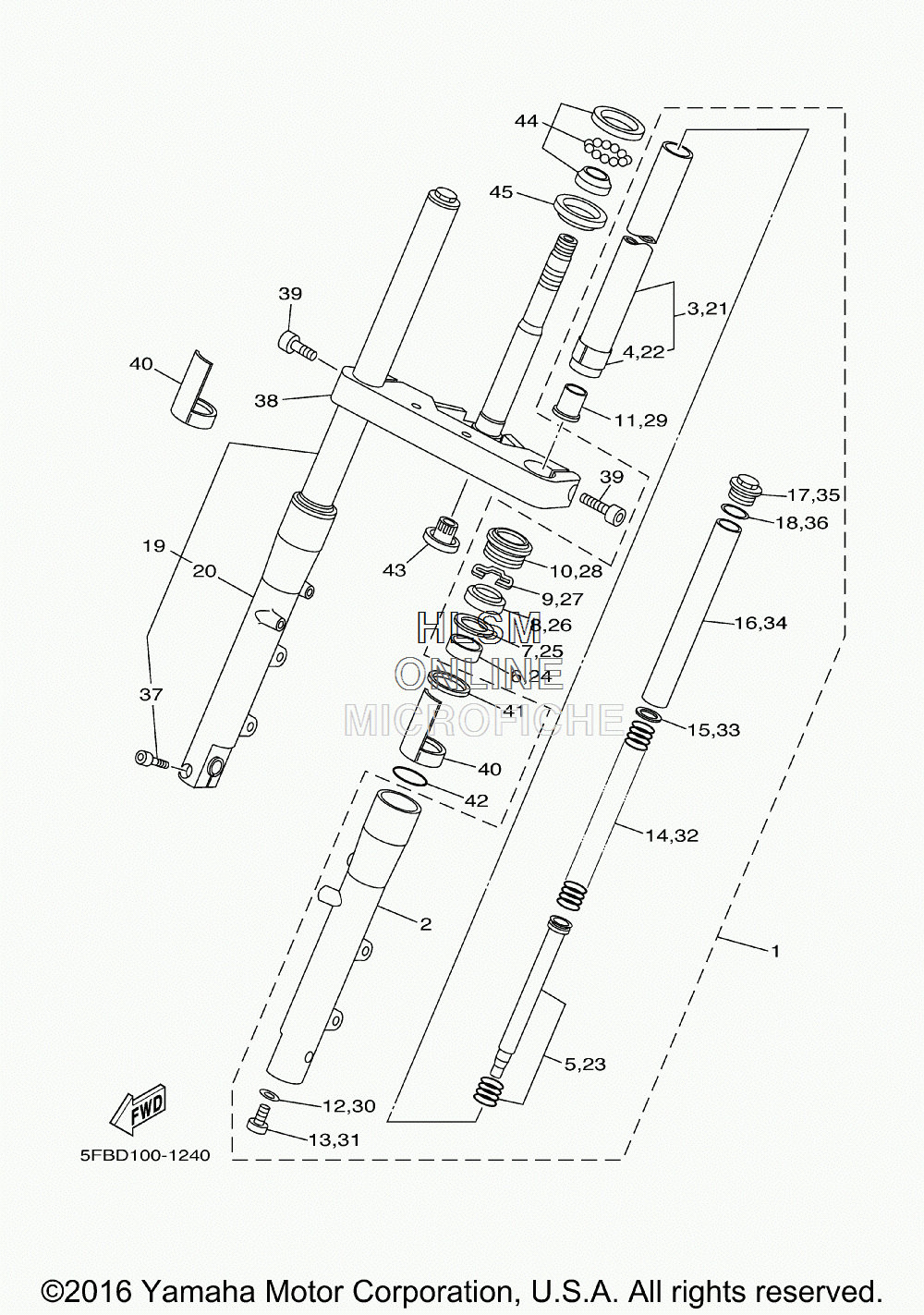

SUSPENSION - FRONT FORK для Yamaha V STAR 650 CUSTOM [ XVS65YL/CL] (3B6D/3B6E) - 2009 года выпуска
-
№АртикулНазвание
-
15KP-23102-11-00 FRONT FORK ASSY (LEFT HAND)FRONT FORK ASSY (LEFT HAND)
-
25KP-23126-10-00 ...TUBE, OUTER (LEFT)...TUBE, OUTER (LEFT)
-
35KP-23110-00-00 ...INNER TUBE COMP. 1...INNER TUBE COMP. 1
-
45BN-23171-00-00 ......PISTON, FRONT FORK......PISTON, FRONT FORK
-
55KP-23170-00-00 ...CYLINDER COMP., FRONT FORK...CYLINDER COMP., FRONT FORK
-
64FM-23125-40-00 ...METAL, SLIDE 1...METAL, SLIDE 1
-
736Y-23146-10-00 ...WASHER, OIL SEAL...WASHER, OIL SEAL
-
84EB-23145-01-00 ...OIL SEAL...OIL SEAL
-
926H-23156-00-00 ...RING, SNAP...RING, SNAP
-
104EB-23144-00-00 ...SEAL, DUST...SEAL, DUST
-
114YR-23173-00-00 ...SPINDLE, TAPER...SPINDLE, TAPER
-
12509-23158-L0-00 ...GASKET...GASKET
-
13278-23181-50-00 ...BOLT, HEXAGON SOCKET HEAD...BOLT, HEXAGON SOCKET HEAD
-
145KP-23141-00-00 ...SPRING, FRONT FORK...SPRING, FRONT FORK
-
154DW-23149-40-00 ...WASHER, SPRING UPPER...WASHER, SPRING UPPER
-
164TR-23118-00-00 ...SPACER...SPACER
-
171D0-23111-00-00 ...BOLT, CAP...BOLT, CAP
-
1843F-23188-10-00 ...O-RING...O-RING
-
195KP-23103-11-00 FRONT FORK ASSY (RIGHT HAND)FRONT FORK ASSY (RIGHT HAND)
-
205KP-23136-10-00 ...TUBE, OUTER (RIGHT)...TUBE, OUTER (RIGHT)
-
215KP-23110-00-00 ...INNER TUBE COMP. 1...INNER TUBE COMP. 1
-
225BN-23171-00-00 ......PISTON, FRONT FORK......PISTON, FRONT FORK
-
235KP-23170-00-00 ...CYLINDER COMP., FRONT FORK...CYLINDER COMP., FRONT FORK
-
244FM-23125-40-00 ...METAL, SLIDE 1...METAL, SLIDE 1
-
2536Y-23146-10-00 ...WASHER, OIL SEAL...WASHER, OIL SEAL
-
264EB-23145-01-00 ...OIL SEAL...OIL SEAL
-
2726H-23156-00-00 ...RING, SNAP...RING, SNAP
-
284EB-23144-00-00 ...SEAL, DUST...SEAL, DUST
-
294YR-23173-00-00 ...SPINDLE, TAPER...SPINDLE, TAPER
-
30509-23158-L0-00 ...GASKET...GASKET
-
31278-23181-50-00 ...BOLT, HEXAGON SOCKET HEAD...BOLT, HEXAGON SOCKET HEAD
-
325KP-23141-00-00 ...SPRING, FRONT FORK...SPRING, FRONT FORK
-
334DW-23149-40-00 ...WASHER, SPRING UPPER...WASHER, SPRING UPPER
-
344TR-23118-00-00 ...SPACER...SPACER
-
351D0-23111-00-00 ...BOLT, CAP...BOLT, CAP
-
3643F-23188-10-00 ...O-RING...O-RING
-
3791314-08040-00 ...BOLT, HEXAGON SOCKET HEAD...BOLT, HEXAGON SOCKET HEAD
-
385KP-23340-11-00 UNDER BRACKET COMP.UNDER BRACKET COMP.
-
3991314-10030-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
405EL-2331G-00-00 COVERCOVER
-
415EL-23376-00-00 STOPPERSTOPPER
-
425EL-23147-00-00 O-RINGO-RING
-
434KM-23123-01-00 COVER, UNDER 1COVER, UNDER 1
-
4493399-99932-00 BEARINGBEARING
-
453FV-23462-00-00 SEAL, STEERINGSEAL, STEERING
