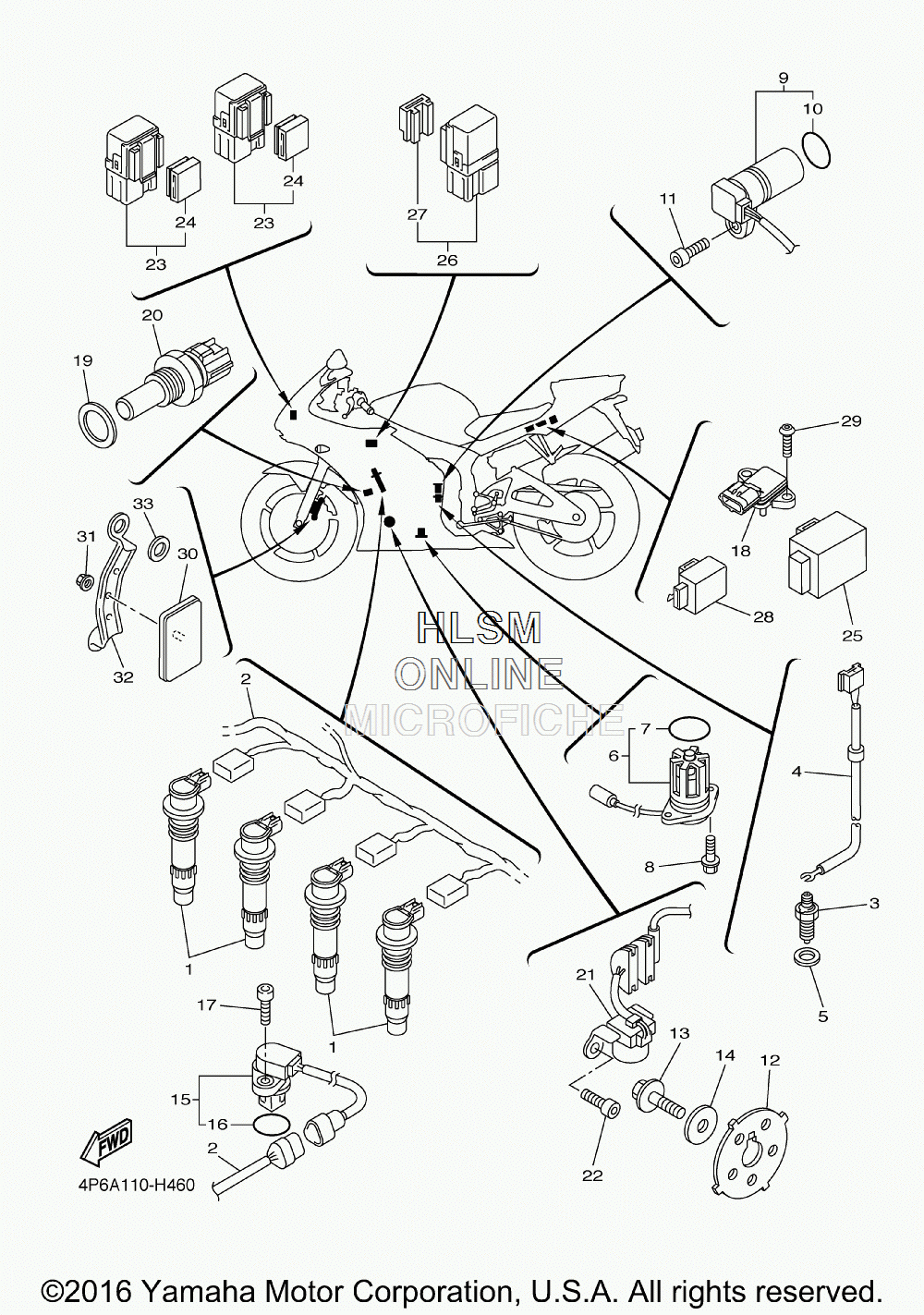

ELECTRICAL для Yamaha YZFR6S [ YZFR6SYB/YL/CB/CL] (46PA/46PB) - 2009 года выпуска
-
№АртикулНазвание
-
15SL-82310-20-00 IGNITION COIL ASSYIGNITION COIL ASSY
-
25SL-82309-12-00 WIRE, SUB LEADWIRE, SUB LEAD
-
33GB-82540-01-00 NEUTRAL SWITCH ASSYNEUTRAL SWITCH ASSY
-
42C0-82541-00-00 WIRE, LEADWIRE, LEAD
-
590430-10148-00 GASKETGASKET
-
65SL-85720-01-00 OIL LEVEL GAUGE ASSYOIL LEVEL GAUGE ASSY
-
75VY-8A8E0-00-00 ...O-RING...O-RING
-
895027-06016-00 BOLT, FLANGEBOLT, FLANGE
-
95EB-83755-01-00 SENSOR, SPEEDSENSOR, SPEED
-
104D9-81168-00-00 ...O-RING...O-RING
-
1191317-06016-00 BOLT, HEX. SOCKET HEADBOLT, HEX. SOCKET HEAD
-
125SL-81673-00-00 ROTORROTOR
-
1390105-08113-00 BOLT, FLANGEBOLT, FLANGE
-
1490201-08753-00 WASHER, PLATEWASHER, PLATE
-
155PW-85896-10-00 SENSOR, CAM POSITIONSENSOR, CAM POSITION
-
164D9-81168-00-00 ...O-RING...O-RING
-
1790110-06117-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
185VX-82380-00-00 SENSOR, PRESSURESENSOR, PRESSURE
-
1990201-12790-00 WASHER, PLATEWASHER, PLATE
-
208CC-85790-01-00 THERMOSENSOR ASSYTHERMOSENSOR ASSY
-
215SL-81670-00-00 PICK-UP ASSYPICK-UP ASSY
-
2290110-06125-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
235JJ-81950-20-00 RELAY ASSY (5JJ-20)RELAY ASSY (5JJ-20)
-
245JJ-81952-00-00 ...HOLDER, RELAY...HOLDER, RELAY
-
255VK-81950-40-00 RELAY ASSY (5VK-40)RELAY ASSY (5VK-40)
-
265EA-81950-20-00 RELAY ASSY (5EA-02)RELAY ASSY (5EA-02)
-
275EA-81952-00-00 ...HOLDER, RELAY...HOLDER, RELAY
-
284MY-83350-01-00 FLASHER RELAY ASSYFLASHER RELAY ASSY
-
2992017-05016-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
3020G-85110-00-00 REFLECTOR ASSYREFLECTOR ASSY
-
3195707-05500-00 NUT, FLANGENUT, FLANGE
-
325SL-85112-00-00 BRACKET, REFLECTOR 1BRACKET, REFLECTOR 1
-
3390201-08759-00 WASHER, PLATEWASHER, PLATE
