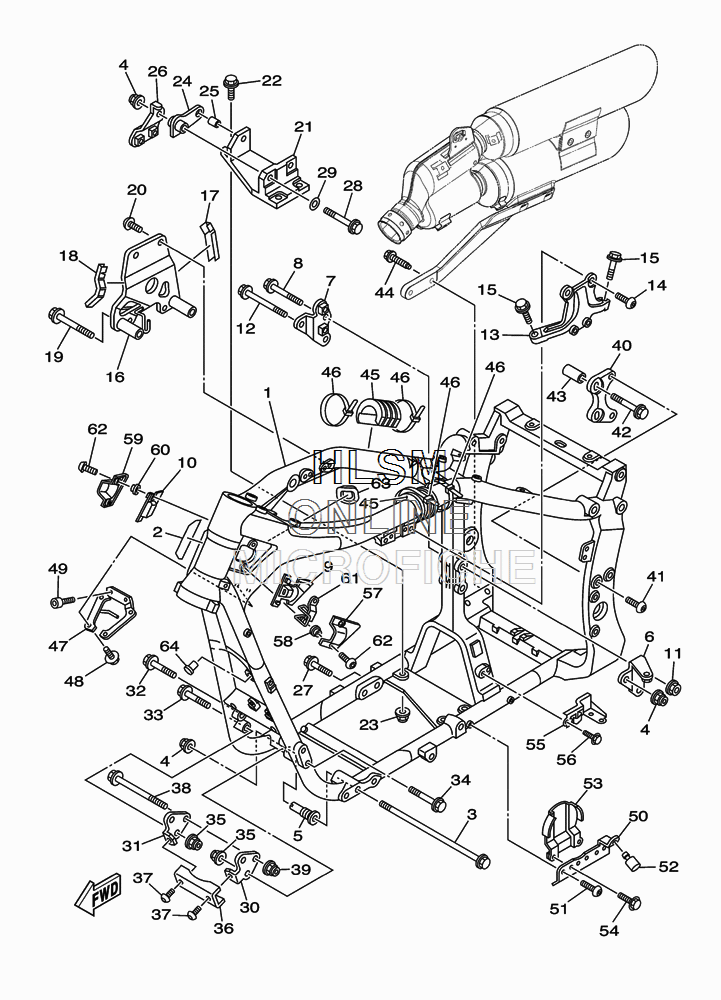

FRAME для Yamaha RAIDER - 2010 года выпуска
-
№АртикулНазвание
-
15C7-21110-01-00 FRAME COMP.FRAME COMP.
-
21D7-24141-00-00 PROTECTOR, FUEL TANKPROTECTOR, FUEL TANK
-
390105-126A6-00 BOLT, FLANGEBOLT, FLANGE
-
495607-12200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
55PX-21495-00-00 BOLT, ENGINE ADJUSTINGBOLT, ENGINE ADJUSTING
-
61D7-21315-00-00 STAY, ENGINE 2STAY, ENGINE 2
-
75PX-21316-00-00 STAY, ENGINE 3STAY, ENGINE 3
-
890105-10170-00 BOLT, FLANGEBOLT, FLANGE
-
95C7-2112C-00-00 DAMPER 2DAMPER 2
-
105C7-2112D-00-00 DAMPER 3DAMPER 3
-
1195607-10200-00 NUT, U FLANGENUT, U FLANGE
-
1290105-12309-00 BOLT, FLANGEBOLT, FLANGE
-
135C7-21317-00-00 STAY, ENGINE 3STAY, ENGINE 3
-
1490111-10003-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
1590105-12041-00 BOLT, FLANGEBOLT, FLANGE
-
165C7-21319-00-00 STAY, ENGINE 6STAY, ENGINE 6
-
171D7-21669-00-00 SEALSEAL
-
185C7-21268-00-00 SEALSEAL
-
1990105-12067-00 BOLT, FLANGEBOLT, FLANGE
-
2090111-10030-00 BOLT,HEX. SOCKET BUTTONBOLT,HEX. SOCKET BUTTON
-
211D7-21318-00-00 STAY, ENGINE 5STAY, ENGINE 5
-
2295817-10030-00 BOLT, FLANGEBOLT, FLANGE
-
2395607-10200-00 NUT, U FLANGENUT, U FLANGE
-
241D7-2142G-00-00 STAY 1STAY 1
-
2590387-12033-00 COLLARCOLLAR
-
261D7-21387-00-00 STAY, ENGINE 7STAY, ENGINE 7
-
2795817-10045-00 BOLT, FLANGEBOLT, FLANGE
-
2890101-12025-00 BOLTBOLT
-
2990201-126A7-00 WASHER, PLATEWASHER, PLATE
-
301D7-2142H-01-00 STAY 2STAY 2
-
311D7-2142J-01-00 STAY 3STAY 3
-
3290105-10049-00 BOLT, FLANGEBOLT, FLANGE
-
3390105-10060-00 BOLT, FLANGEBOLT, FLANGE
-
3490105-10167-00 BOLT, FLANGEBOLT, FLANGE
-
3590185-10008-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
361D7-2115L-00-00 BRACKET, MEMBER 1BRACKET, MEMBER 1
-
3790111-08039-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
3890105-12016-00 BOLT, FLANGEBOLT, FLANGE
-
3990185-12002-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
401D7-2137F-00-00 STAY 1STAY 1
-
4190111-10009-00 BOLT,HEX. SOCKET BUTTONBOLT,HEX. SOCKET BUTTON
-
4295817-10075-00 BOLT, FLANGEBOLT, FLANGE
-
431D7-21116-01-00 COLLARCOLLAR
-
4490105-10165-00 BOLT, FLANGEBOLT, FLANGE
-
455C7-24183-00-00 DAMPER, LOCATING 3DAMPER, LOCATING 3
-
463MA-82591-00-00 BANDBAND
-
475C7-2116A-00-00 STAY 1STAY 1
-
4895027-06014-00 BOLT, FLANGEBOLT, FLANGE
-
4991317-06020-00 BOLTBOLT
-
505C7-21343-00-00 BRACKET, HORNBRACKET, HORN
-
5190111-08031-00 BOLT,HEX. SOCKET BUTTONBOLT,HEX. SOCKET BUTTON
-
521D7-27114-00-00 STOPPER, MAIN STANDSTOPPER, MAIN STAND
-
535C7-2317L-00-00 COVER, HORNCOVER, HORN
-
5490105-06078-00 BOLT, FLANGEBOLT, FLANGE
-
555C7-21453-00-00 BRACKET, SWITCHBRACKET, SWITCH
-
5695027-06016-00 BOLT, FLANGEBOLT, FLANGE
-
575C7-2171E-00-00 COVER, SIDE 5COVER, SIDE 5
-
5890387-06210-00 COLLARCOLLAR
-
595C7-2171X-00-00 COVER, SIDE 6COVER, SIDE 6
-
6090387-06192-00 COLLARCOLLAR
-
615C7-2171H-00-00 GUIDEGUIDE
-
6290111-06007-00 BOLT,HEX. SOCKET BUTTONBOLT,HEX. SOCKET BUTTON
-
635C7-21773-00-00 GROMMETGROMMET
-
6490338-16148-00 PLUGPLUG
