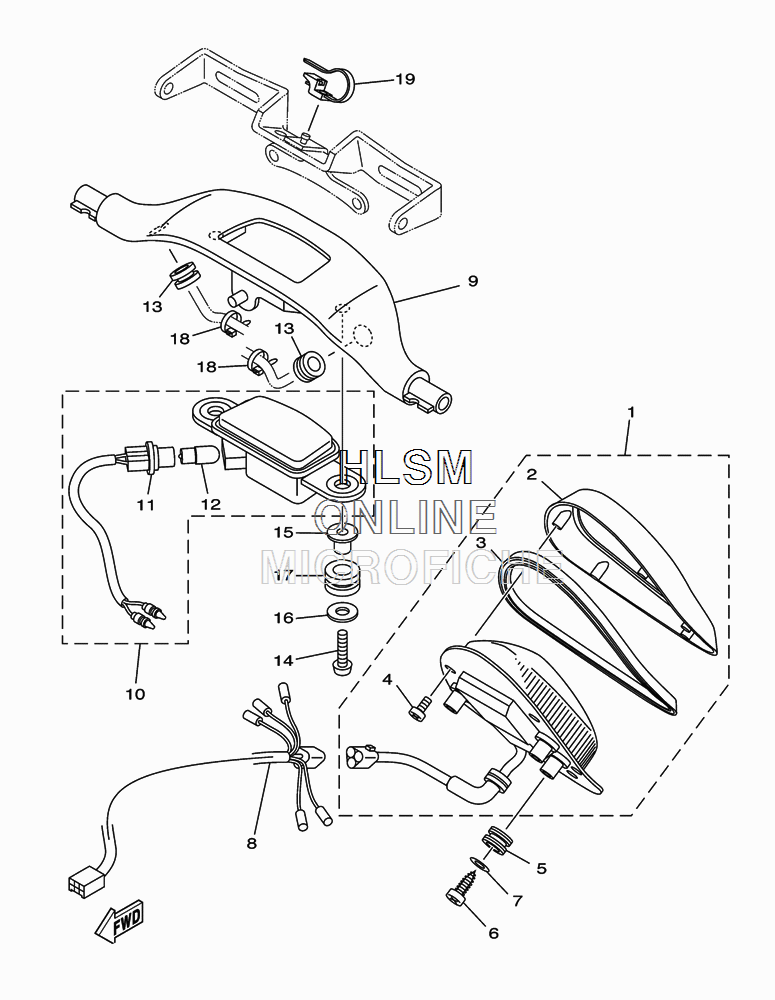

TAILLIGHT для Yamaha ROAD STAR SILVERADO - 2010 года выпуска
-
№АртикулНазвание
-
15VN-84700-00-00 TAILLIGHT ASSYTAILLIGHT ASSY
-
25VN-84716-00-00 COVER, TAILLIGHTCOVER, TAILLIGHT
-
35VN-84723-00-00 GASKET, TAIL LENSGASKET, TAIL LENS
-
45VN-84724-00-00 SCREW, LENS FITTINGSCREW, LENS FITTING
-
55PX-84553-00-00 DAMPERDAMPER
-
697707-50012-00 SCREW, TRUSS HEAD TAPPINGSCREW, TRUSS HEAD TAPPING
-
790201-05036-00 WASHER, PLATEWASHER, PLATE
-
85VN-84717-10-00 CORD, TAILLIGHTCORD, TAILLIGHT
-
95VN-83368-01-00 STAY, FLASHER 1STAY, FLASHER 1
-
105VN-84745-00-00 LICENCE LIGHT UNIT ASSYLICENCE LIGHT UNIT ASSY
-
115VN-8473E-00-00 SOCKET CORD ASSY 2SOCKET CORD ASSY 2
-
125VN-84744-00-00 BULB (12V-5W)BULB (12V-5W)
-
1390480-10517-00 GROMMETGROMMET
-
1492017-06025-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
1590387-07391-00 COLLARCOLLAR
-
1690201-06057-00 WASHER, PLATEWASHER, PLATE
-
1790480-14004-00 GROMMETGROMMET
-
181UA-82591-00-00 CLAMPCLAMP
-
1990464-25002-00 CLAMPCLAMP
