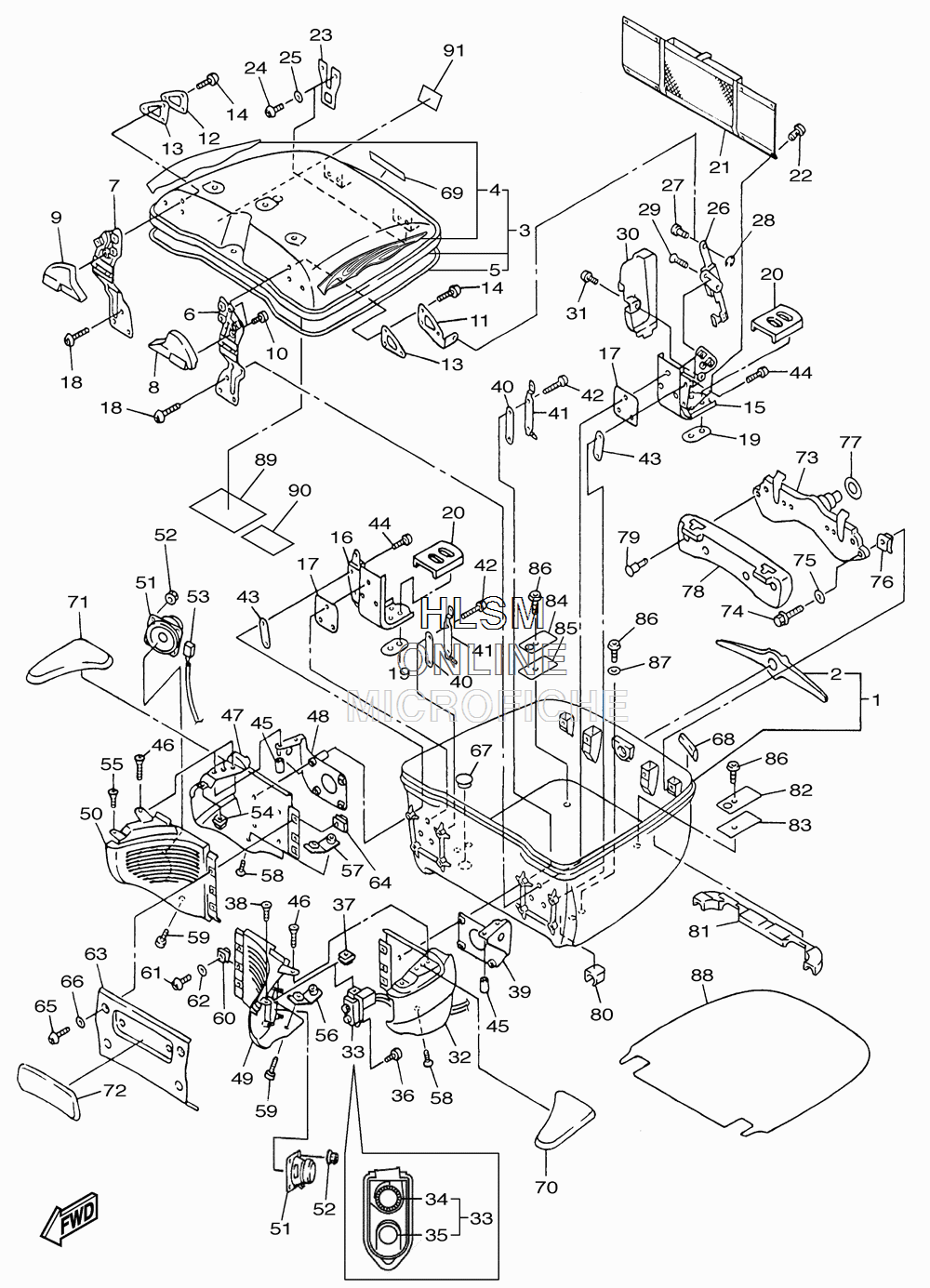

TRAVEL BAG для Yamaha ROYAL STAR VENTURE S - 2010 года выпуска
-
№АртикулНазвание
-
14XY-W2846-00-P0 TRAVEL TRUNK LOWER SET (SMX)TRAVEL TRUNK LOWER SET (SMX)
-
24XY-28445-00-00 EMBLEMEMBLEM
-
34XY-W2847-10-P7 TRAVEL TRUNK UPPER SET (SMX)TRAVEL TRUNK UPPER SET (SMX)
-
41BM-2840H-01-00 GRAPHIC SET, TRAVEL TRUNKGRAPHIC SET, TRAVEL TRUNK
-
54XY-28428-00-00 SEAL 1SEAL 1
-
64XY-2845E-01-00 HINGE 2HINGE 2
-
74XY-2849E-01-00 HINGE 4HINGE 4
-
84XY-2846K-00-P1 COVER, HINGE 1 (SMX)COVER, HINGE 1 (SMX)
-
94XY-2846L-00-P1 COVER, HINGE 2 (SMX)COVER, HINGE 2 (SMX)
-
1097707-40010-00 SCREW, TAPPINGSCREW, TAPPING
-
114XY-28487-00-00 PLATE 2PLATE 2
-
124XY-28497-00-00 PLATE 3PLATE 3
-
134XY-28485-00-00 PLATE, RUBBER 3PLATE, RUBBER 3
-
1492017-05014-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
154XY-28486-01-00 BRACKET 5BRACKET 5
-
164XY-28496-01-00 BRACKET 6BRACKET 6
-
174XY-28484-00-00 PLATE, RUBBER 2PLATE, RUBBER 2
-
1892017-05020-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
194XY-28483-00-00 PLATE, RUBBER 1PLATE, RUBBER 1
-
204XY-2848M-00-00 SEAT 4SEAT 4
-
214XY-2848L-00-00 SEAT 3SEAT 3
-
2290269-05039-00 RIVETRIVET
-
234XY-28488-00-00 HOOKHOOK
-
2492017-05008-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
2590201-05725-00 WASHER, PLATEWASHER, PLATE
-
264XY-2845L-01-00 STOPPER, OPENSTOPPER, OPEN
-
274XY-2842L-00-00 PIN, STOPPERPIN, STOPPER
-
2899001-04600-00 CIRCLIPCIRCLIP
-
2998707-04010-00 SCREW, FLAT HEADSCREW, FLAT HEAD
-
304XY-2843F-00-00 COVER ASSYCOVER ASSY
-
3192017-05010-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
324XY-8816E-01-P7 BASE,REMOCON. (SMX)BASE,REMOCON. (SMX)
-
334XY-88169-01-00 REMOTE CONTROL 1REMOTE CONTROL 1
-
344XY-88137-00-00 KNOBKNOB
-
354XY-88157-00-00 BUTTON 1BUTTON 1
-
3697707-40010-00 SCREW, TAPPINGSCREW, TAPPING
-
3790183-05024-00 NUT, SPRINGNUT, SPRING
-
3898707-05014-00 SCREW, FLAT HEADSCREW, FLAT HEAD
-
394XY-28426-00-00 BRACKET 1BRACKET 1
-
404XY-2848J-00-00 PLATE, RUBBER 8PLATE, RUBBER 8
-
414XY-2841R-00-00 PLATE, BOTTOMPLATE, BOTTOM
-
4292017-06030-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
434XY-2847J-00-00 PLATE, RUBBER 7PLATE, RUBBER 7
-
4492017-05014-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
4590179-05523-00 NUTNUT
-
4698707-05020-00 SCREW, FLAT HEADSCREW, FLAT HEAD
-
474XY-2841L-01-P1 BODY (SMX)BODY (SMX)
-
484XY-28436-00-00 BRACKET 2BRACKET 2
-
494XY-88165-01-P1 GRILLE, SPEAKER 1 (SMX)GRILLE, SPEAKER 1 (SMX)
-
504XY-88175-01-P1 GRILLE, SPEAKER 2 (SMX)GRILLE, SPEAKER 2 (SMX)
-
514XY-88161-00-00 SPEAKER 1SPEAKER 1
-
5295707-05500-00 NUT, FLANGENUT, FLANGE
-
534XY-88176-00-00 CORDCORD
-
5490183-05024-00 NUT, SPRINGNUT, SPRING
-
5598707-05016-00 SCREW, FLAT HEADSCREW, FLAT HEAD
-
564XY-2846H-01-00 PLATE,4PLATE,4
-
574XY-28417-01-00 PLATEPLATE
-
5890152-05009-00 SCREW, COUNTERSUNKSCREW, COUNTERSUNK
-
5990154-05064-00 SCREW, BINDINGSCREW, BINDING
-
6090183-05024-00 NUT, SPRINGNUT, SPRING
-
6198507-05012-00 SCREW, PAN HEADSCREW, PAN HEAD
-
6292907-05600-00 WASHER, PLATEWASHER, PLATE
-
634XY-2844J-00-P7 COVER 4 (SMX)COVER 4 (SMX)
-
6490183-05024-00 NUT, SPRINGNUT, SPRING
-
6592014-05014-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
6690202-05088-00 WASHER, PLATEWASHER, PLATE
-
6790338-24260-00 PLUGPLUG
-
681JK-21268-00-00 SEALSEAL
-
691D6-2153E-00-00 EMBLEM, YAMAHAEMBLEM, YAMAHA
-
704XY-2848N-00-00 SEAT 5SEAT 5
-
714XY-2848P-00-00 SEAT 6SEAT 6
-
724XY-2848R-00-00 SEAT 7SEAT 7
-
734XY-W2841-00-00 LOCK ASS'Y 1LOCK ASS'Y 1
-
7497007-05020-00 BOLTBOLT
-
7592907-05600-00 WASHER, PLATEWASHER, PLATE
-
7690183-05024-00 NUT, SPRINGNUT, SPRING
-
774KN-2475M-00-00 SEALSEAL
-
784XY-28493-00-00 COVER LOCK ASSY 2COVER LOCK ASSY 2
-
7990269-06001-00 RIVETRIVET
-
804XY-2847R-00-00 DAMPER 10DAMPER 10
-
814XY-2847N-00-00 DAMPER 8DAMPER 8
-
824XY-2846P-00-00 PLATE 7PLATE 7
-
834XY-2849J-00-00 PLATE, RUBBER 9PLATE, RUBBER 9
-
844XY-2846R-00-00 PLATE 8PLATE 8
-
854XY-2847T-00-00 PLATE, RUBBER 11PLATE, RUBBER 11
-
8692017-06016-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
8792907-06600-00 WASHER, PLATEWASHER, PLATE
-
884XY-2848H-00-00 SEATSEAT
-
894XY-28446-02-00 LABEL, CAUTIONLABEL, CAUTION
-
904NK-21668-A0-00 LABEL, TIRELABEL, TIRE
-
914LE-21686-A0-00 PLATE, ROUTING 2 (CALIF ONLY)PLATE, ROUTING 2 (CALIF ONLY)
