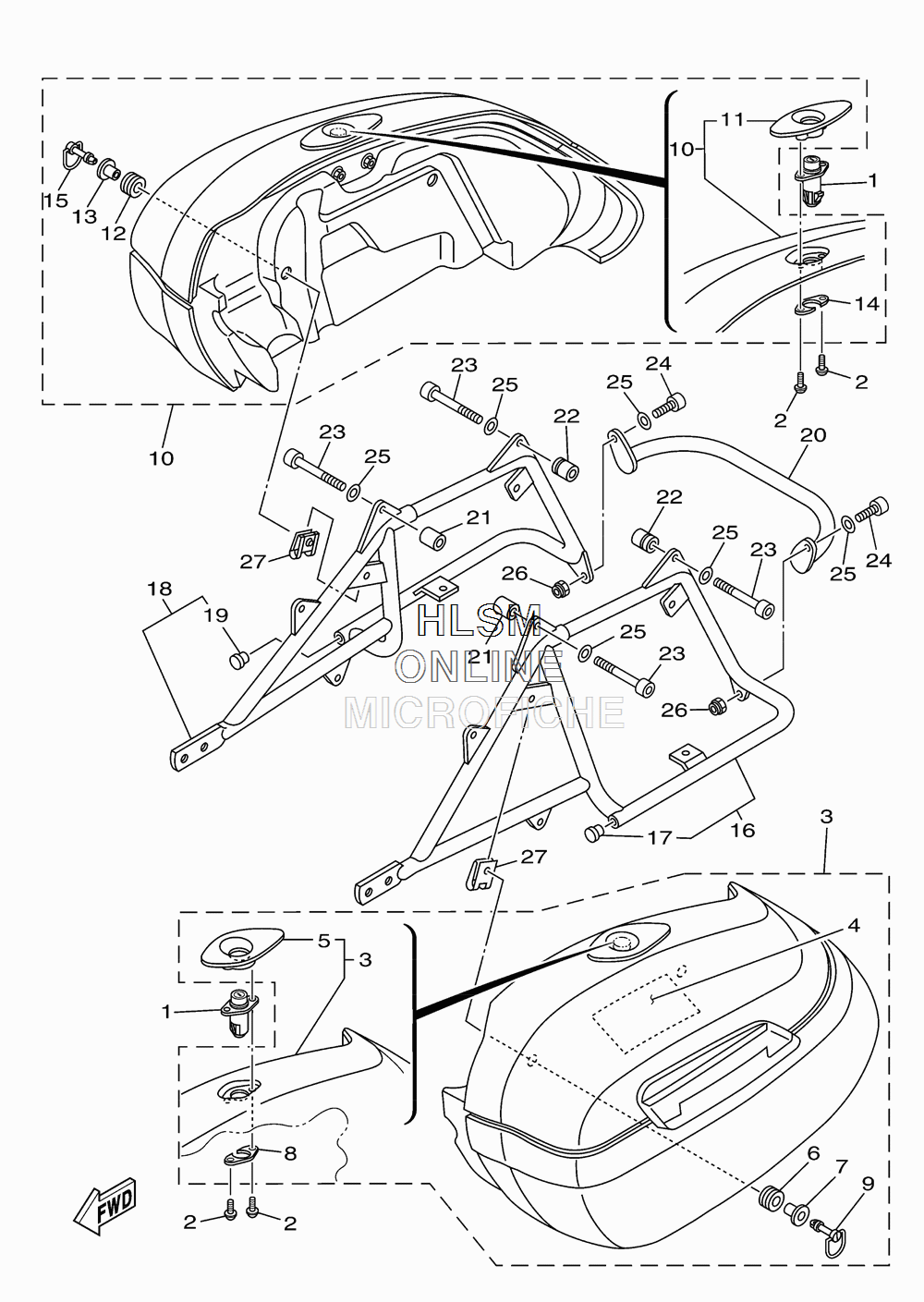

SADDLEBAGS для Yamaha STRATOLINER DELUXE - 2010 года выпуска
-
№АртикулНазвание
-
12C5-28408-01-00 LOCK ASSY 1LOCK ASSY 1
-
292014-05010-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
32C5-F8430-R0-00 SADDLEBAG COMP 1 LEFT SIDE CASE ASSYSADDLEBAG COMP 1 LEFT SIDE CASE ASSY
-
42C5-F844B-R0-00 LID, 1LID, 1
-
52C5-F8493-00-00 COVER LOCK ASSY 2COVER LOCK ASSY 2
-
62C5-F848T-00-00 PLATE, LOCK 1PLATE, LOCK 1
-
72C5-F2480-V0-00 SEAL ASSYSEAL ASSY
-
82C5-F8444-00-00 HINGE, 1HINGE, 1
-
92C5-F5120-V0-00 WASHERWASHER
-
102C5-F849K-00-00 COVER LOCK ASSY 2COVER LOCK ASSY 2
-
112C5-F8440-R0-00 SADDLEBAG COMP 2 RIGHT SIDE BASE ASSYSADDLEBAG COMP 2 RIGHT SIDE BASE ASSY
-
122C5-F844C-R0-00 LID 2LID 2
-
132C5-F845E-00-00 HINGE, 2HINGE, 2
-
142C5-F8421-V0-00 BUMPER, REAR 1BUMPER, REAR 1
