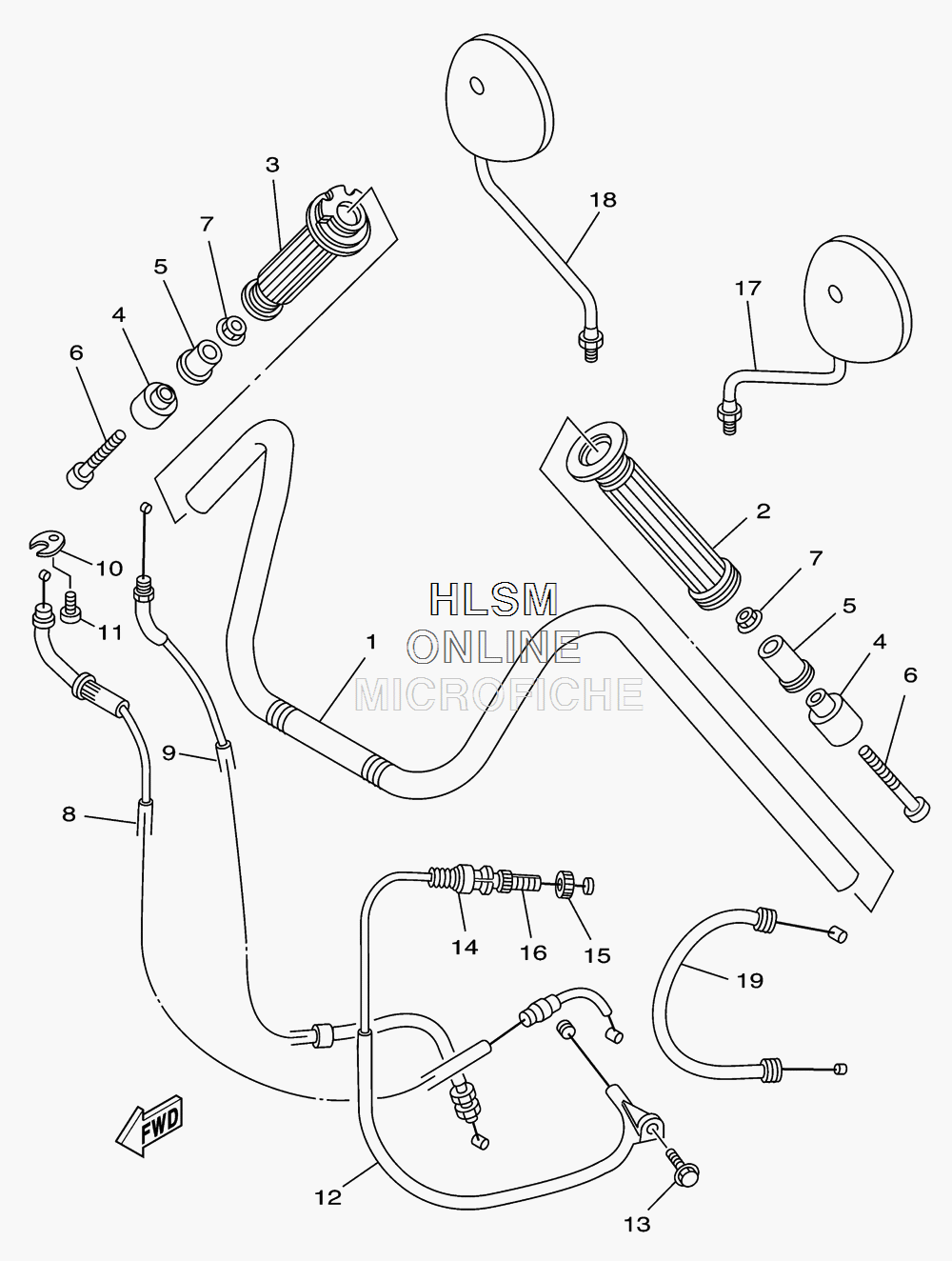

HANDLEBAR W/ CABLES - MIRRORS для Yamaha V STAR 250 - 2010 года выпуска
-
№АртикулНазвание
-
12UJ-26111-01-00 HANDLE BARHANDLE BAR
-
221A-26241-00-00 GRIPGRIP
-
32UJ-26240-01-00 GRIP ASSYGRIP ASSY
-
442N-26246-00-00 END, GRIPEND, GRIP
-
51FW-2622F-01-00 DAMPER, LOCATING 1DAMPER, LOCATING 1
-
691314-06075-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
790179-06403-00 NUT, SPEC'L SHAPENUT, SPEC'L SHAPE
-
82UJ-26311-10-00 CABLE, THROTTLE 1CABLE, THROTTLE 1
-
92UJ-26312-10-00 CABLE, THROTTLE 2CABLE, THROTTLE 2
-
105H0-26393-00-00 HOLDERHOLDER
-
1198507-05008-00 SCREW, PAN HEADSCREW, PAN HEAD
-
122UJ-26335-01-00 CABLE, CLUTCHCABLE, CLUTCH
-
1395027-06012-00 BOLT, FLANGEBOLT, FLANGE
-
141E6-26342-00-00 BOOT, CABLEBOOT, CABLE
-
1590179-08148-00 NUT, SPEC'L SHAPENUT, SPEC'L SHAPE
-
1690123-08046-00 BOLTBOLT
-
173Y1-26290-10-00 BACK MIRROR ASSY (L.H)BACK MIRROR ASSY (L.H)
-
183Y1-26290-00-00 BACK MIRROR ASSY (R.H)BACK MIRROR ASSY (R.H)
-
192UJ-26331-01-00 CABLE, STARTER 1CABLE, STARTER 1
