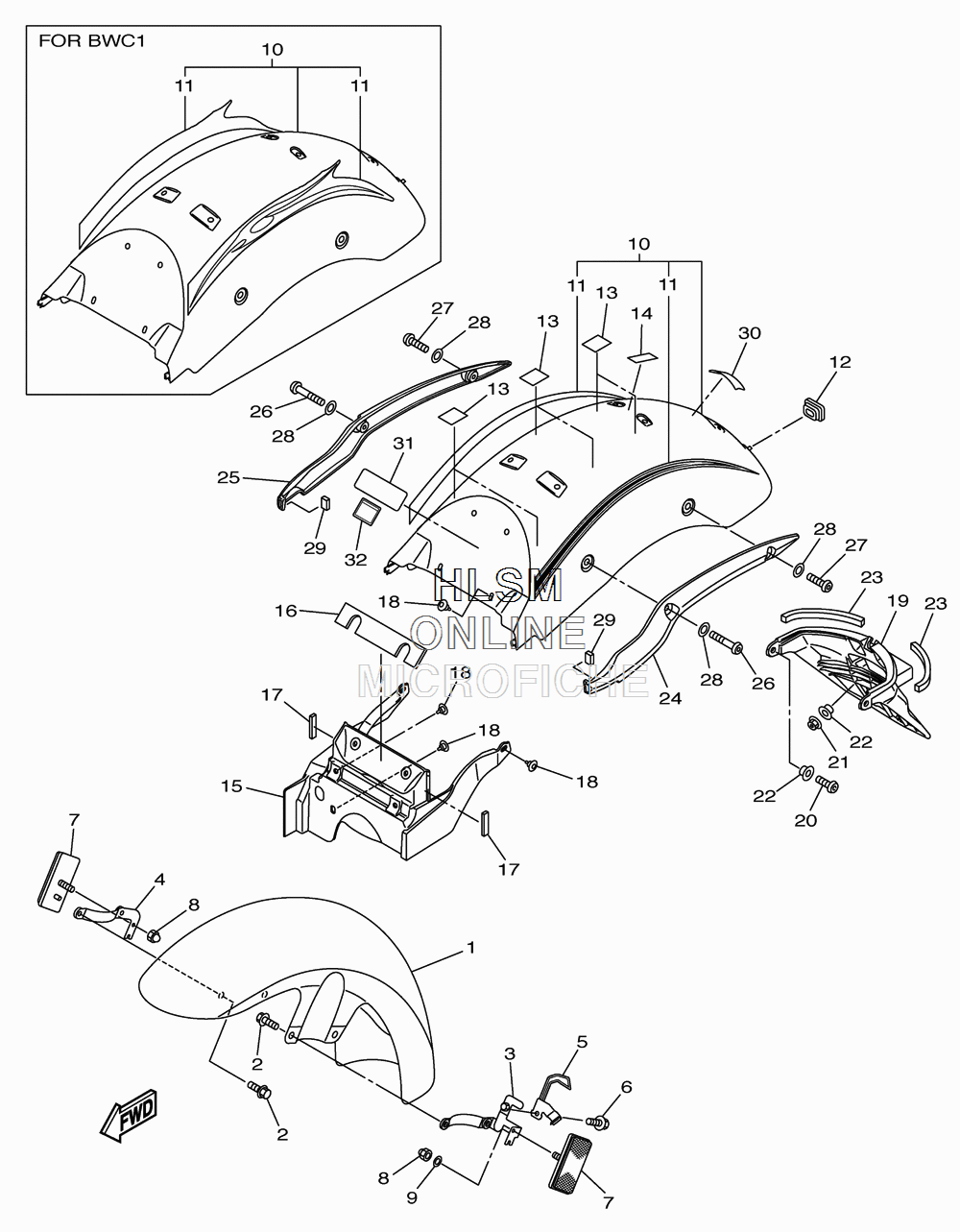

FENDER - FRONT / REAR для Yamaha V STAR 950 - 2010 года выпуска
-
№АртикулНазвание
-
15S7-21510-00-P0 FRONT FENDER COMP. FOR SMXFRONT FENDER COMP. FOR SMX
-
15S7-21510-00-P7 FRONT FENDER COMP. FOR BWC1FRONT FENDER COMP. FOR BWC1
-
295812-08020-00 BOLT, FLANGEBOLT, FLANGE
-
35S7-21587-00-00 STAY 1STAY 1
-
45S7-21588-00-00 STAY 2STAY 2
-
53D8-21597-00-00 HOLDER,WIRE 1HOLDER,WIRE 1
-
695027-06010-00 BOLT, FLANGEBOLT, FLANGE
-
711H-85110-01-00 REFLECTOR ASSYREFLECTOR ASSY
-
890176-05004-00 NUT, CROWNNUT, CROWN
-
990201-051K1-00 WASHER, PLATEWASHER, PLATE
-
105S7-Y2161-20-P0 REAR FENDER COMP. FOR SMXREAR FENDER COMP. FOR SMX
-
105S7-Y2161-30-P7 REAR FENDER COMP. FOR BWC1REAR FENDER COMP. FOR BWC1
-
115S7-2165A-20-00 GRAPHIC SET,REAR FENDER FOR SMXGRAPHIC SET,REAR FENDER FOR SMX
-
115S7-2165A-30-00 GRAPHIC SET,REAR FENDER FOR BWC1GRAPHIC SET,REAR FENDER FOR BWC1
-
1290480-13027-00 GROMMETGROMMET
-
135PX-21669-01-00 SEALSEAL
-
145S7-21669-00-00 SEALSEAL
-
155S7-21629-00-P0 GUARD, MUD FOR SMXGUARD, MUD FOR SMX
-
155S7-21629-00-P7 GUARD, MUD FOR BWC1GUARD, MUD FOR BWC1
-
165S7-21638-00-00 DAMPER 1DAMPER 1
-
175S7-21639-00-00 DAMPER 2DAMPER 2
-
1890269-07077-00 RIVETRIVET
-
195S7-2162R-00-00 FENDER 2FENDER 2
-
2092012-06012-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
2195602-06200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
2290387-07717-00 COLLARCOLLAR
-
234DN-21669-00-00 SEALSEAL
-
245S7-2164F-00-00 STAY 1STAY 1
-
255S7-2164G-00-00 STAY 2STAY 2
-
2692014-08045-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
2792014-08030-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
2892990-08200-00 WASHERWASHER
-
293MA-24181-00-00 DAMPER, LOCATING 1DAMPER, LOCATING 1
-
301D6-2153E-00-00 EMBLEM, YAMAHAEMBLEM, YAMAHA
-
315S7-2176P-10-00 PLATE, EPA (CALIF. ONLY)PLATE, EPA (CALIF. ONLY)
-
315S7-2179W-10-00 PLATE, EPA (EXCEPT CALIF.)PLATE, EPA (EXCEPT CALIF.)
-
325PX-21686-00-00 PLATE, ROUTING 2 (CALIF. ONLY)PLATE, ROUTING 2 (CALIF. ONLY)
