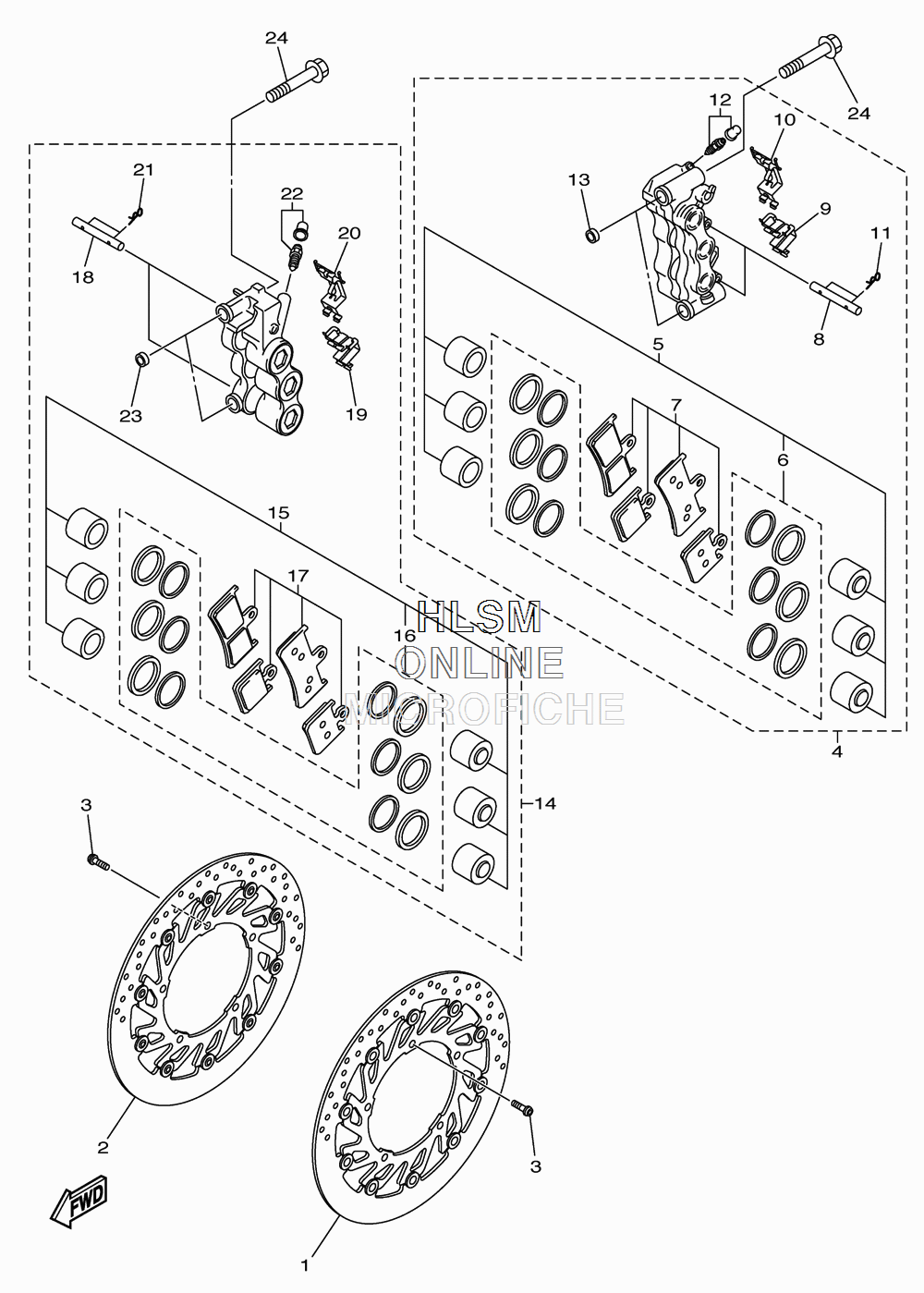

BRAKE - FRONT CALIPER для Yamaha YZF-R1 - 2010 года выпуска
-
№АртикулНазвание
-
114B-2581T-00-00 DISK BRAKE ASSY (LEFT)DISK BRAKE ASSY (LEFT)
-
214B-2581U-00-00 DISK BRAKE ASSY (RIGHT)DISK BRAKE ASSY (RIGHT)
-
390149-06043-00 SCREWSCREW
-
44C8-2580T-10-00 CALIPER ASSY (LEFT)CALIPER ASSY (LEFT)
-
54C8-W0057-00-00 PISTON ASSY, CALIPERPISTON ASSY, CALIPER
-
64C8-W0047-00-00 CALIPER SEAL KITCALIPER SEAL KIT
-
74C8-W0045-00-00 BRAKE PAD KITBRAKE PAD KIT
-
84SV-25924-00-00 PIN, PADPIN, PAD
-
94C8-25919-00-00 SUPPORT, PADSUPPORT, PAD
-
102S3-25919-10-00 SUPPORT, PADSUPPORT, PAD
-
113GM-25925-00-00 CLIPCLIP
-
121J3-W0048-00-00 BLEED SCREW KITBLEED SCREW KIT
-
135VY-2583B-00-00 PIN, KNOCKPIN, KNOCK
-
144C8-2580U-10-00 CALIPER ASSY (RIGHT)CALIPER ASSY (RIGHT)
-
154C8-W0057-00-00 PISTON ASSY, CALIPERPISTON ASSY, CALIPER
-
164C8-W0047-00-00 CALIPER SEAL KITCALIPER SEAL KIT
-
174C8-W0045-00-00 BRAKE PAD KITBRAKE PAD KIT
-
184SV-25924-00-00 PIN, PADPIN, PAD
-
194C8-25919-00-00 SUPPORT, PADSUPPORT, PAD
-
202S3-25919-10-00 SUPPORT, PADSUPPORT, PAD
-
213GM-25925-00-00 CLIPCLIP
-
221J3-W0048-00-00 BLEED SCREW KITBLEED SCREW KIT
-
235VY-2583B-00-00 PIN, KNOCKPIN, KNOCK
-
2490401-10012-00 BOLT, UNIONBOLT, UNION
