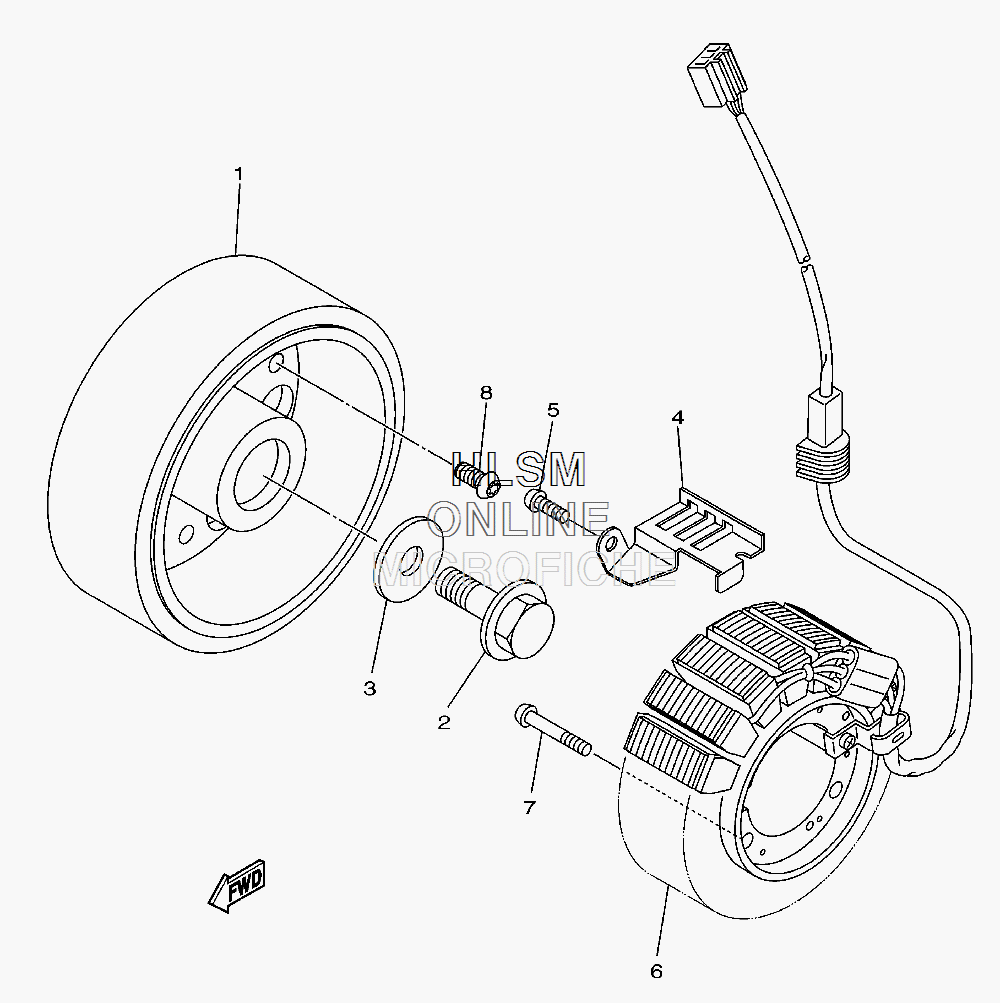

GENERATOR для Yamaha FZ6R (ORANGE) - 2011 года выпуска
-
№АртикулНазвание
-
15VX-81450-00-00 ROTOR ASSYROTOR ASSY
-
290105-126A8-00 BOLT, WASHER BASEDBOLT, WASHER BASED
-
390201-12008-00 WASHER, PLATEWASHER, PLATE
-
45VX-15484-00-00 CLAMP 2CLAMP 2
-
590149-06158-00 SCREWSCREW
-
620S-81410-00-00 STATOR ASSYSTATOR ASSY
-
790149-06093-00 SCREWSCREW
-
890149-08030-00 SCREWSCREW
