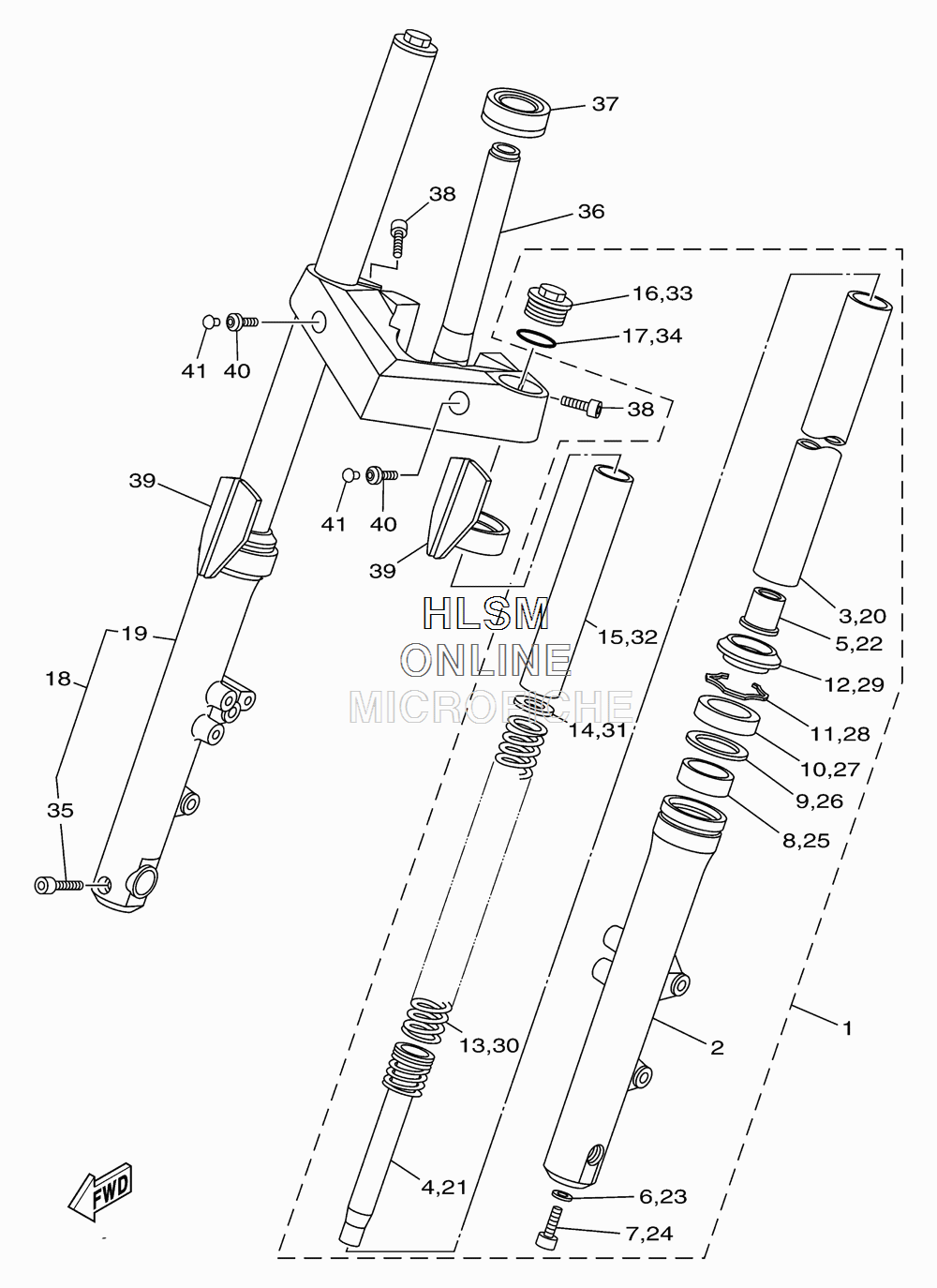

SUSPENSION - FRONT FORK для Yamaha RAIDER S - 2011 года выпуска
-
№АртикулНазвание
-
15C7-23102-00-00 FRONT FORK ASSY (L.H)FRONT FORK ASSY (L.H)
-
25C7-23126-00-00 ...TUBE, OUTER (LEFT)...TUBE, OUTER (LEFT)
-
35C7-23110-00-00 ...INNER TUBE COMP.1...INNER TUBE COMP.1
-
45C7-23170-00-00 ...CYLINDER COMP., FRONT FORK...CYLINDER COMP., FRONT FORK
-
51D7-23173-00-00 ...SPINDLE, TAPER...SPINDLE, TAPER
-
62K8-23158-L0-00 ...GASKET...GASKET
-
73R4-23181-L0-00 ...BOLT, HEXAGON SOCKET HEAD...BOLT, HEXAGON SOCKET HEAD
-
85TJ-23125-50-00 ...METAL, SLIDE 1...METAL, SLIDE 1
-
94SS-23146-L0-00 ...WASHER, OIL SEAL...WASHER, OIL SEAL
-
101D7-23145-00-00 ...OIL SEAL...OIL SEAL
-
114SS-23153-L0-00 ...RING, SNAP...RING, SNAP
-
121D7-23144-00-00 ...SEAL, DUST...SEAL, DUST
-
135C7-23141-00-00 ...SPRING, FRONT FORK...SPRING, FRONT FORK
-
141D7-23149-00-00 ...WASHER, SPRING UPPER...WASHER, SPRING UPPER
-
151D7-23118-00-00 ...SPACER...SPACER
-
161D7-23111-00-00 ...BOLT, CAP...BOLT, CAP
-
171D7-23188-00-00 ...O-RING...O-RING
-
185C7-23103-00-00 FRONT FORK ASSY (R.H)FRONT FORK ASSY (R.H)
-
195C7-23136-00-00 ...TUBE, OUTER (RIGHT)...TUBE, OUTER (RIGHT)
-
205C7-23110-00-00 ...INNER TUBE COMP.1...INNER TUBE COMP.1
-
215C7-23170-00-00 ...CYLINDER COMP., FRONT FORK...CYLINDER COMP., FRONT FORK
-
221D7-23173-00-00 ...SPINDLE, TAPER...SPINDLE, TAPER
-
232K8-23158-L0-00 ...GASKET...GASKET
-
243R4-23181-L0-00 ...BOLT, HEXAGON SOCKET HEAD...BOLT, HEXAGON SOCKET HEAD
-
255TJ-23125-50-00 ...METAL, SLIDE 1...METAL, SLIDE 1
-
264SS-23146-L0-00 ...WASHER, OIL SEAL...WASHER, OIL SEAL
-
271D7-23145-00-00 ...OIL SEAL...OIL SEAL
-
284SS-23153-L0-00 ...RING, SNAP...RING, SNAP
-
291D7-23144-00-00 ...SEAL, DUST...SEAL, DUST
-
305C7-23141-00-00 ...SPRING, FRONT FORK...SPRING, FRONT FORK
-
311D7-23149-00-00 ...WASHER, SPRING UPPER...WASHER, SPRING UPPER
-
321D7-23118-00-00 ...SPACER...SPACER
-
331D7-23111-00-00 ...BOLT, CAP...BOLT, CAP
-
341D7-23188-00-00 ...O-RING...O-RING
-
3591314-08040-00 ...BOLT, HEXAGON SOCKET HEAD...BOLT, HEXAGON SOCKET HEAD
-
365C7-23340-00-00 UNDER BRACKET COMP.UNDER BRACKET COMP.
-
3793332-00096-00 BEARINGBEARING
-
3891314-08025-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
395C7-2331G-00-00 COVERCOVER
-
4090111-08010-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
4190338-08163-00 PLUGPLUG
