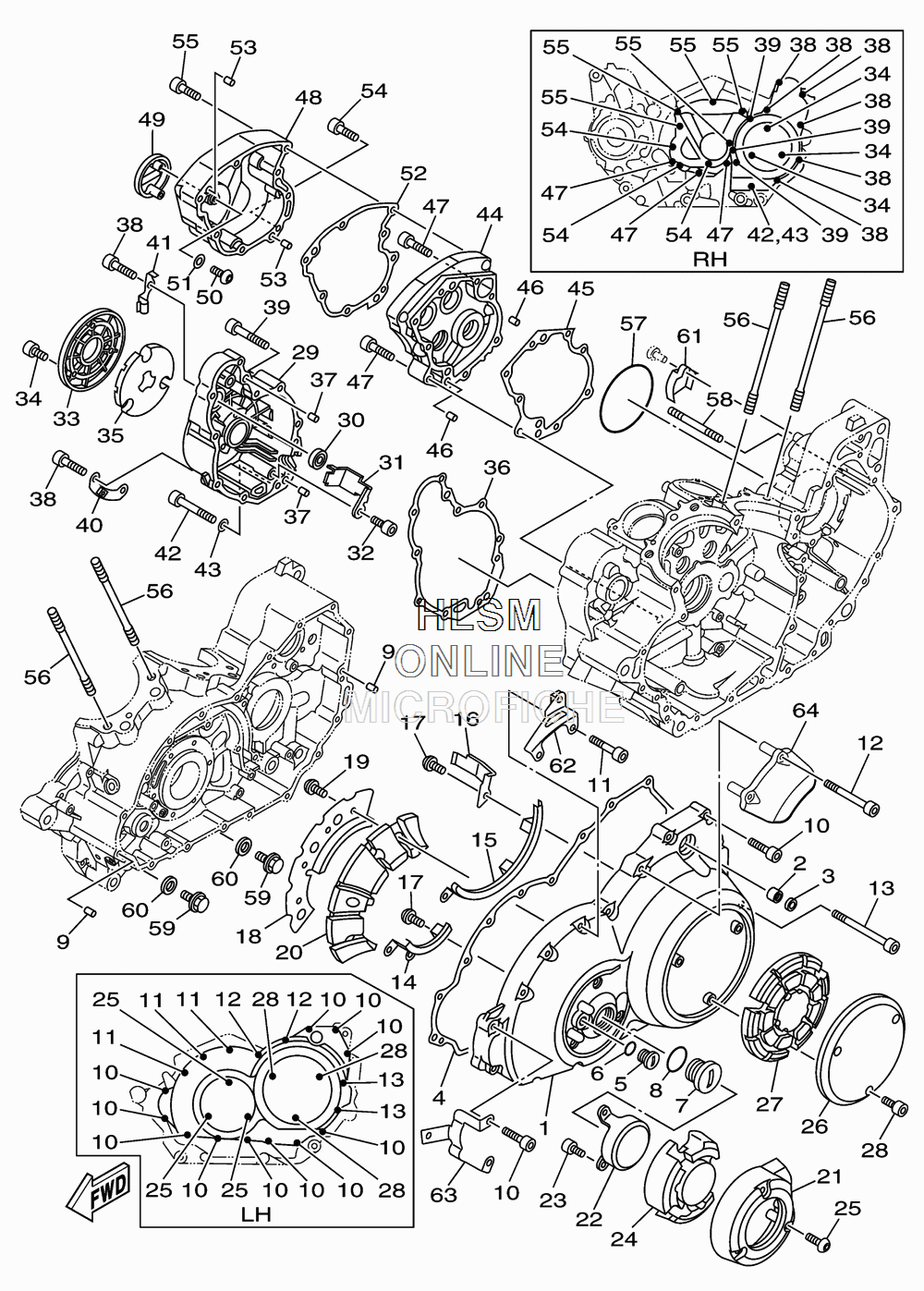

CRANKCASE COVER для Yamaha RAIDER - 2011 года выпуска
-
№АртикулНазвание
-
11D7-15411-10-00 COVER, CRANKCASE 1COVER, CRANKCASE 1
-
293317-11287-00 BEARINGBEARING
-
393102-12224-00 OIL SEAL, SD-TYPEOIL SEAL, SD-TYPE
-
41D7-15451-00-00 GASKET, CRANKCASE COVER 1GASKET, CRANKCASE COVER 1
-
590340-14117-00 PLUG, STRAIGHT SCREWPLUG, STRAIGHT SCREW
-
693210-14369-00 O-RINGO-RING
-
790340-32154-00 PLUG, STRAIGHT SCREWPLUG, STRAIGHT SCREW
-
893210-32172-00 O-RINGO-RING
-
999530-08012-00 PIN, DOWELPIN, DOWEL
-
1091314-06035-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
