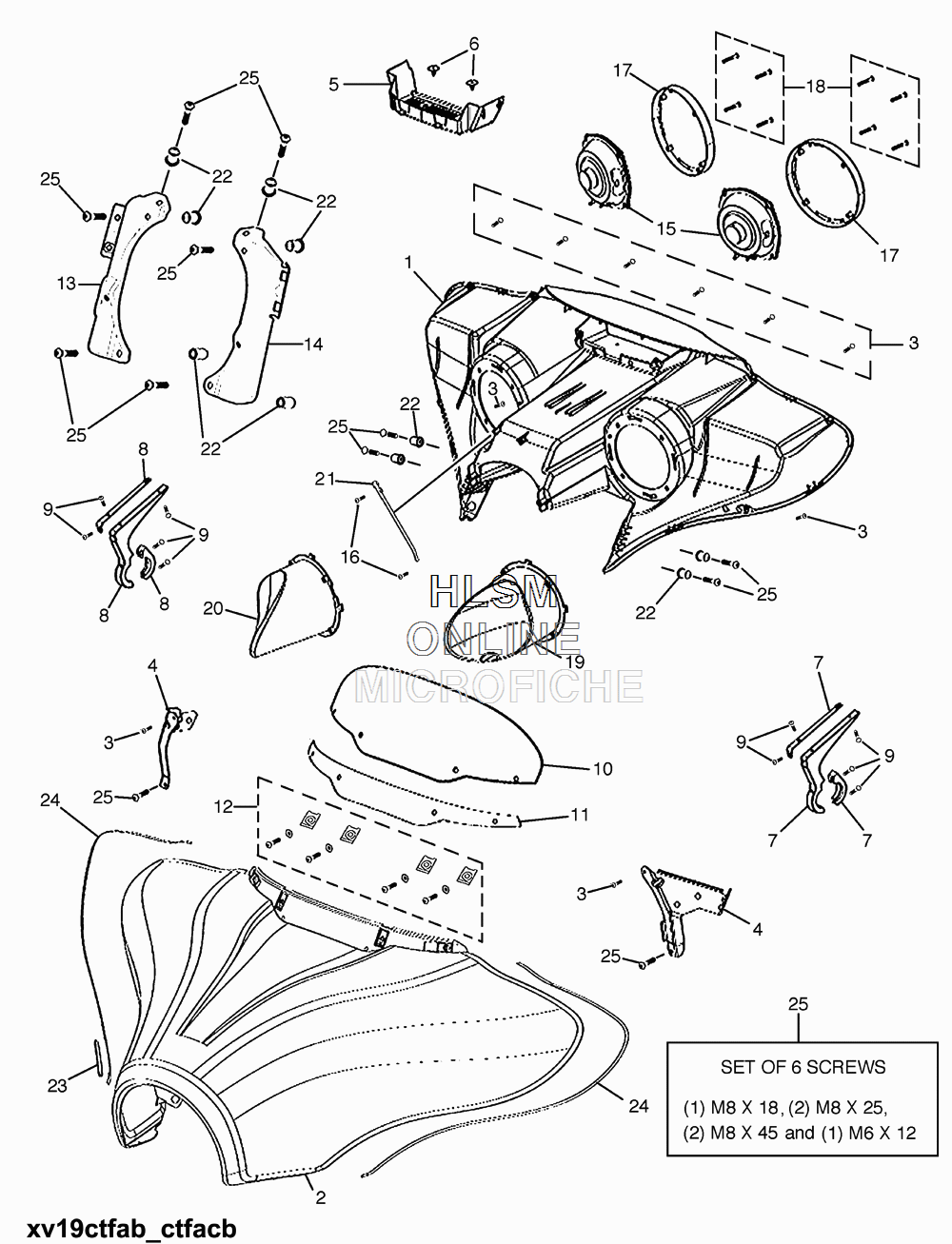

COWLING для Yamaha STRATLOLINER DELUXE - 2011 года выпуска
-
№АртикулНазвание
-
12C5-F830A-V0-00 COWLING BODY ASSYCOWLING BODY ASSY
-
22C5-F8330-V0-00 UPPER COWLING ASSY, 1UPPER COWLING ASSY, 1
-
32C5-F585H-T0-00 SCREW SET (M4 X 16) (10 SCREWS)SCREW SET (M4 X 16) (10 SCREWS)
-
42C5-F2209-V0-00 UPPER BRACKET ASSYUPPER BRACKET ASSY
-
52C5-F7483-V0-00 MATMAT
-
62C5-F722H-V0-00 RETAINERRETAINER
-
72C5-F6223-V0-00 BRACKET, HANDLE 1 (LEFT)BRACKET, HANDLE 1 (LEFT)
-
82C5-F6224-V0-00 BRACKET, HANDLE 2 (RIGHT)BRACKET, HANDLE 2 (RIGHT)
-
92C5-F585H-S0-00 SCREW SET (M5 X 16) (5 SCREWS)SCREW SET (M5 X 16) (5 SCREWS)
-
102C5-F83H0-R0-00 WIND SCREEN ASSYWIND SCREEN ASSY
-
112C5-F2865-V0-00 COVER, FRONTCOVER, FRONT
-
122C5-F585H-R0-00 SCREW SET (4 EA. SCREWS, WASHERS & LOCK NUTS)SCREW SET (4 EA. SCREWS, WASHERS & LOCK NUTS)
-
132C5-F334G-V0-00 BRACKET 1BRACKET 1
-
142C5-F334H-V0-00 BRACKET 2BRACKET 2
-
152C5-H8161-V0-00 SPEAKER, 1SPEAKER, 1
-
162C5-H253U-V0-00 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
172C5-H8163-V0-00 GRILLE, SPEAKER 1GRILLE, SPEAKER 1
-
182C5-F585H-V0-00 SCREW SET (M4 X 30) (4 SCREWS)SCREW SET (M4 X 30) (4 SCREWS)
-
192C5-H8160-V0-00 SPEAKER ENCLOSURE 1SPEAKER ENCLOSURE 1
-
202C5-H8170-V0-00 SPEAKER ENCLOSURE 2SPEAKER ENCLOSURE 2
-
212C5-H2591-V0-00 BANDBAND
-
222C5-F511X-V0-00 COLLAR SET (5 COLLARS)COLLAR SET (5 COLLARS)
-
232C5-F3472-V0-00 PROTECTOR TAPEPROTECTOR TAPE
-
242C5-F8344-V0-00 PROTECTOR TAPEPROTECTOR TAPE
-
252C5-F585H-P0-00 SCREW SET (6 SCREWS)SCREW SET (6 SCREWS)
