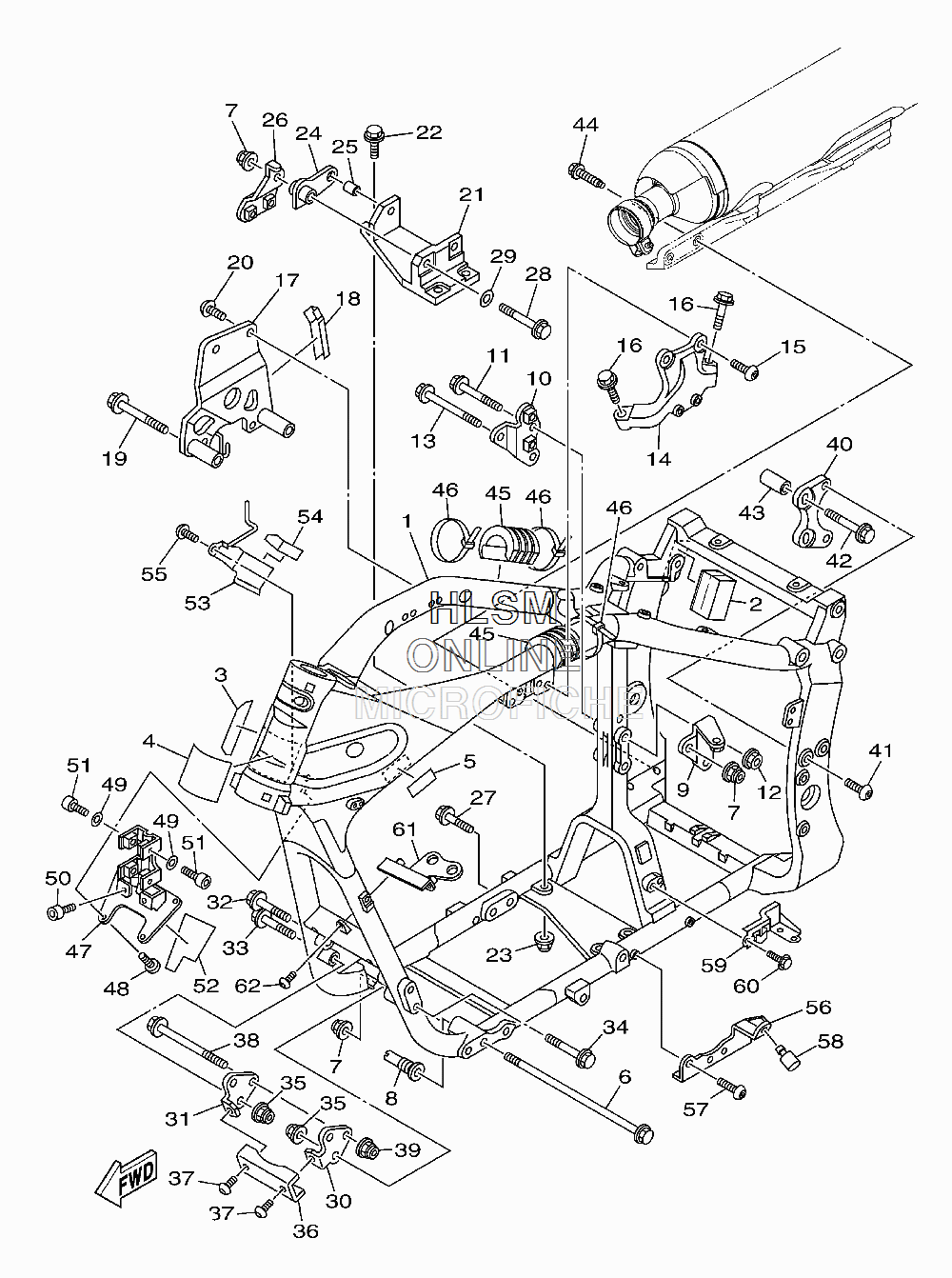

FRAME для Yamaha STRATOLINER DELUXE - 2011 года выпуска
-
№АртикулНазвание
-
11D7-21110-01-00 FRAME COMP.FRAME COMP.
-
21D7-21779-00-00 DAMPER, LOCATING 2DAMPER, LOCATING 2
-
31D7-24141-00-00 PROTECTOR, FUEL TANKPROTECTOR, FUEL TANK
-
41D7-2639G-00-00 SEALSEAL
-
55PX-21268-00-00 SEALSEAL
-
690105-126A6-00 BOLT, WASHER BASEDBOLT, WASHER BASED
-
795607-12200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
85PX-21495-00-00 BOLT, ENGINE ADJUSTINGBOLT, ENGINE ADJUSTING
-
91D7-21315-00-00 STAY, ENGINE 2STAY, ENGINE 2
-
105PX-21316-00-00 STAY, ENGINE 3STAY, ENGINE 3
-
1190105-10170-00 BOLT, FLANGEBOLT, FLANGE
-
1295607-10200-00 NUT, U FLANGENUT, U FLANGE
-
1390105-12309-00 BOLT, FLANGEBOLT, FLANGE
-
141D7-21317-00-00 STAY, ENGINE 3STAY, ENGINE 3
-
1590111-10003-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
1690105-12041-00 BOLT, FLANGEBOLT, FLANGE
-
171D7-21319-00-00 STAY, ENGINE 6STAY, ENGINE 6
-
181D7-21669-00-00 SEALSEAL
-
1990105-12025-00 BOLT, FLANGEBOLT, FLANGE
-
2090111-10003-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
211D7-21318-00-00 STAY, ENGINE 5STAY, ENGINE 5
-
2295817-10030-00 BOLT, FLANGEBOLT, FLANGE
-
2395607-10200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
241D7-2142G-00-00 STAY 1STAY 1
-
2590387-12033-00 COLLARCOLLAR
-
261D7-21387-00-00 STAY, ENGINE 7STAY, ENGINE 7
-
2795817-10045-00 BOLT, FLANGEBOLT, FLANGE
-
2890101-12025-00 BOLTBOLT
-
2990201-126A7-00 WASHER, PLATEWASHER, PLATE
-
301D7-2142H-01-00 STAY 2STAY 2
-
311D7-2142J-01-00 STAY 3STAY 3
-
3290105-10049-00 BOLT, FLANGEBOLT, FLANGE
-
3390105-10060-00 BOLT, FLANGEBOLT, FLANGE
-
3490105-10167-00 BOLT, FLANGEBOLT, FLANGE
-
3590185-10008-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
361D7-2115L-00-00 BRACKET, MEMBER 1BRACKET, MEMBER 1
-
3790111-08039-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
3890105-12016-00 BOLT, FLANGEBOLT, FLANGE
-
3990185-12002-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
401D7-2137F-00-00 STAY 1STAY 1
-
4190111-10009-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
4295817-10075-00 BOLT, FLANGEBOLT, FLANGE
-
431D7-21116-01-00 COLLARCOLLAR
-
4490105-10165-00 BOLT, FLANGEBOLT, FLANGE
-
454YR-24183-01-00 DAMPER, LOCATING 3DAMPER, LOCATING 3
-
463MA-82591-00-00 BANDBAND
-
471D7-21359-00-00 BRACKET, COILBRACKET, COIL
-
4892017-06014-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
4990201-06045-00 WASHER, PLATEWASHER, PLATE
-
5091317-06020-00 BOLTBOLT
-
5191380-06020-00 BOLTBOLT
-
521D7-2139X-00-00 DAMPERDAMPER
-
531D7-21598-00-00 HOLDER, WIRE 2HOLDER, WIRE 2
-
541D7-21269-00-00 SEALSEAL
-
5590111-06010-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
561D7-21343-00-00 BRACKET, HORNBRACKET, HORN
-
5790111-08027-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
581D7-27114-00-00 STOPPER, MAIN STANDSTOPPER, MAIN STAND
-
591D7-21453-00-00 BRACKET, SWITCHBRACKET, SWITCH
-
6095027-06016-00 BOLT, FLANGEBOLT, FLANGE
-
611D7-2136H-00-00 STAY, OIL COOLERSTAY, OIL COOLER
-
6292017-06020-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
