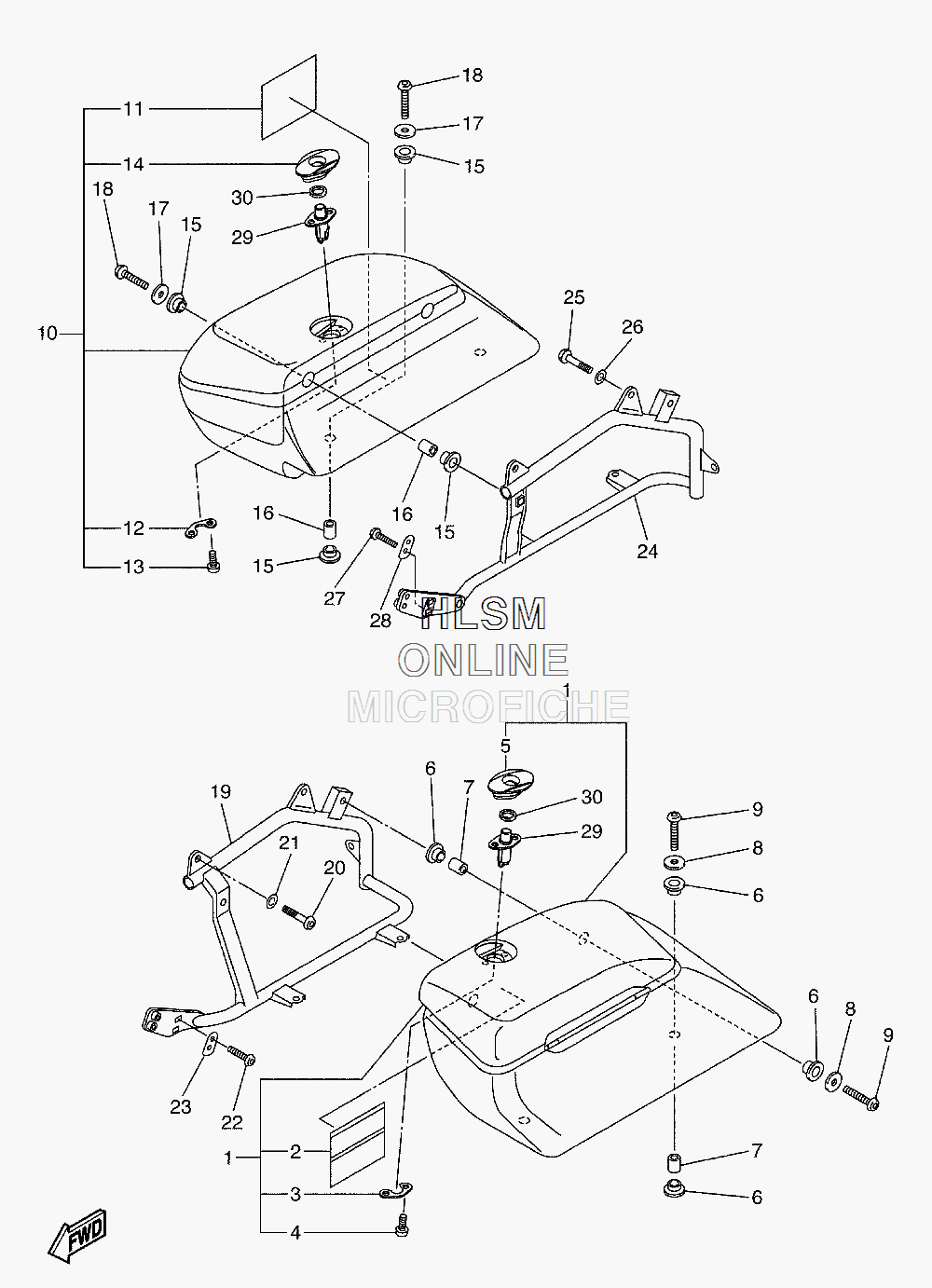

SADDLEBAGS для Yamaha V STAR 1300 TOURER - 2011 года выпуска
-
№АртикулНазвание
-
15S6-F8430-00-00 SADDLEBAG COMP. 1SADDLEBAG COMP. 1
-
25S6-F8446-00-00 ...LABEL, CAUTION...LABEL, CAUTION
-
32C5-F848T-00-00 ...PLATE, LOCK 1...PLATE, LOCK 1
-
492014-05010-00 ...BOLT, BUTTON HEAD...BOLT, BUTTON HEAD
-
55S6-F8493-00-00 ...COVER LOCK ASSY 2...COVER LOCK ASSY 2
-
690480-20004-00 GROMMETGROMMET
-
790387-08077-00 COLLARCOLLAR
-
890201-065G8-00 WASHER, PLATEWASHER, PLATE
-
992012-06025-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
105S6-F8440-00-00 SADDBAG COMP. 2SADDBAG COMP. 2
-
115S6-F8446-00-00 ...LABEL, CAUTION...LABEL, CAUTION
-
122C5-F848T-00-00 ...PLATE, LOCK 1...PLATE, LOCK 1
-
1392014-05010-00 ...BOLT, BUTTON HEAD...BOLT, BUTTON HEAD
-
145S6-F849K-00-00 ...COVER LOCK ASSY 2...COVER LOCK ASSY 2
-
1590480-20004-00 GROMMETGROMMET
-
1690387-08077-00 COLLARCOLLAR
-
1790201-065G8-00 WASHER, PLATEWASHER, PLATE
-
1892012-06025-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
195S6-28473-01-00 FRAME, SADDLEBAG 1FRAME, SADDLEBAG 1
-
2092012-08065-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
2192902-08200-00 WASHERWASHER
-
2290111-08046-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
235S6-28417-00-00 PLATEPLATE
-
245S6-28474-01-00 FRAME, SADDLEBAG 2FRAME, SADDLEBAG 2
-
2592012-08065-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
2692902-08200-00 WASHERWASHER
-
2790111-08046-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
285S6-28417-00-00 PLATEPLATE
-
295S6-28408-00-00 LOCK ASSY 1LOCK ASSY 1
-
305S6-28428-00-00 SEAL 1SEAL 1
