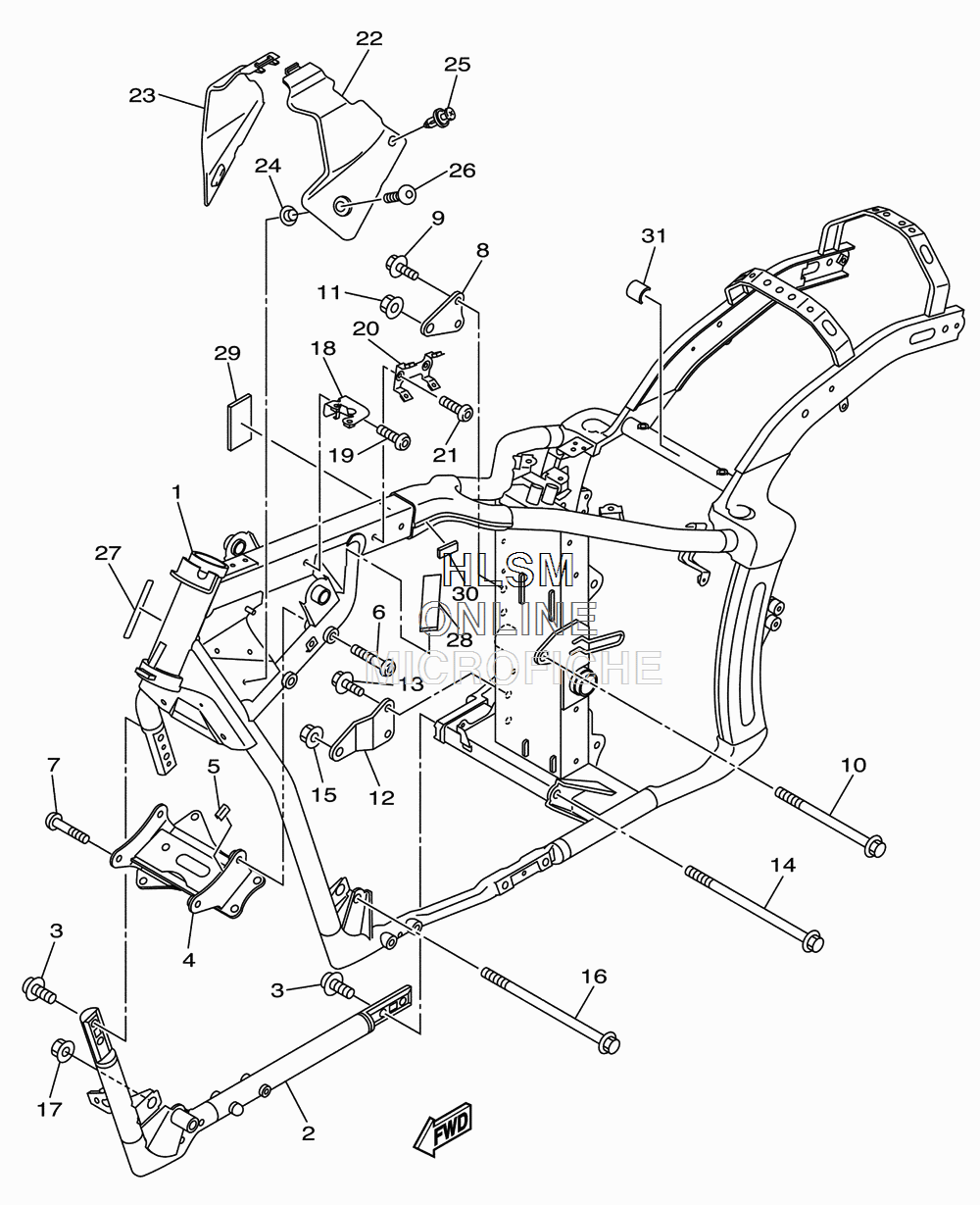

FRAME для Yamaha V STAR 1300 - 2011 года выпуска
-
№АртикулНазвание
-
13D8-21110-40-00 FRAME COMP.FRAME COMP.
-
23D8-21150-11-00 DOWN TUBE COMP 2DOWN TUBE COMP 2
-
390110-10016-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
43D8-21317-10-00 STAY, ENGINE 3STAY, ENGINE 3
-
53MA-27491-00-00 PROTECTORPROTECTOR
-
690111-10028-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
790111-10029-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
83D8-21314-00-00 STAY, ENGINE 5STAY, ENGINE 5
-
990105-10195-00 BOLT, FLANGEBOLT, FLANGE
-
1090105-12043-00 BOLT, FLANGEBOLT, FLANGE
-
1190185-12002-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
123D8-21316-00-00 STAY, ENGINE 3STAY, ENGINE 3
-
1390105-10195-00 BOLT, FLANGEBOLT, FLANGE
-
1490105-12044-00 BOLT, FLANGEBOLT, FLANGE
-
1590185-12002-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
1690105-12045-00 BOLT, FLANGEBOLT, FLANGE
-
1790185-12002-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
183D8-2119W-10-00 BRACKET, LEFT HAND.BRACKET, LEFT HAND.
-
1992012-06012-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
203D8-21359-01-00 BRACKET, COILBRACKET, COIL
-
2191312-06014-00 BOLTBOLT
-
223D8-2171E-01-00 COVER, SIDE 5COVER, SIDE 5
-
233D8-2171X-01-00 COVER, SIDE 6COVER, SIDE 6
-
2490387-06071-00 COLLARCOLLAR
-
2590269-07076-00 RIVET, SPEC'L SHAPERIVET, SPEC'L SHAPE
-
2690111-06061-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
273D8-2117G-00-00 PROTECTORPROTECTOR
-
284XY-2834E-00-00 DAMPER 3DAMPER 3
-
293D8-2113B-00-00 DAMPERDAMPER
-
305H0-8235Y-M0-00 DAMPERDAMPER
-
313MA-27491-00-00 PROTECTORPROTECTOR
