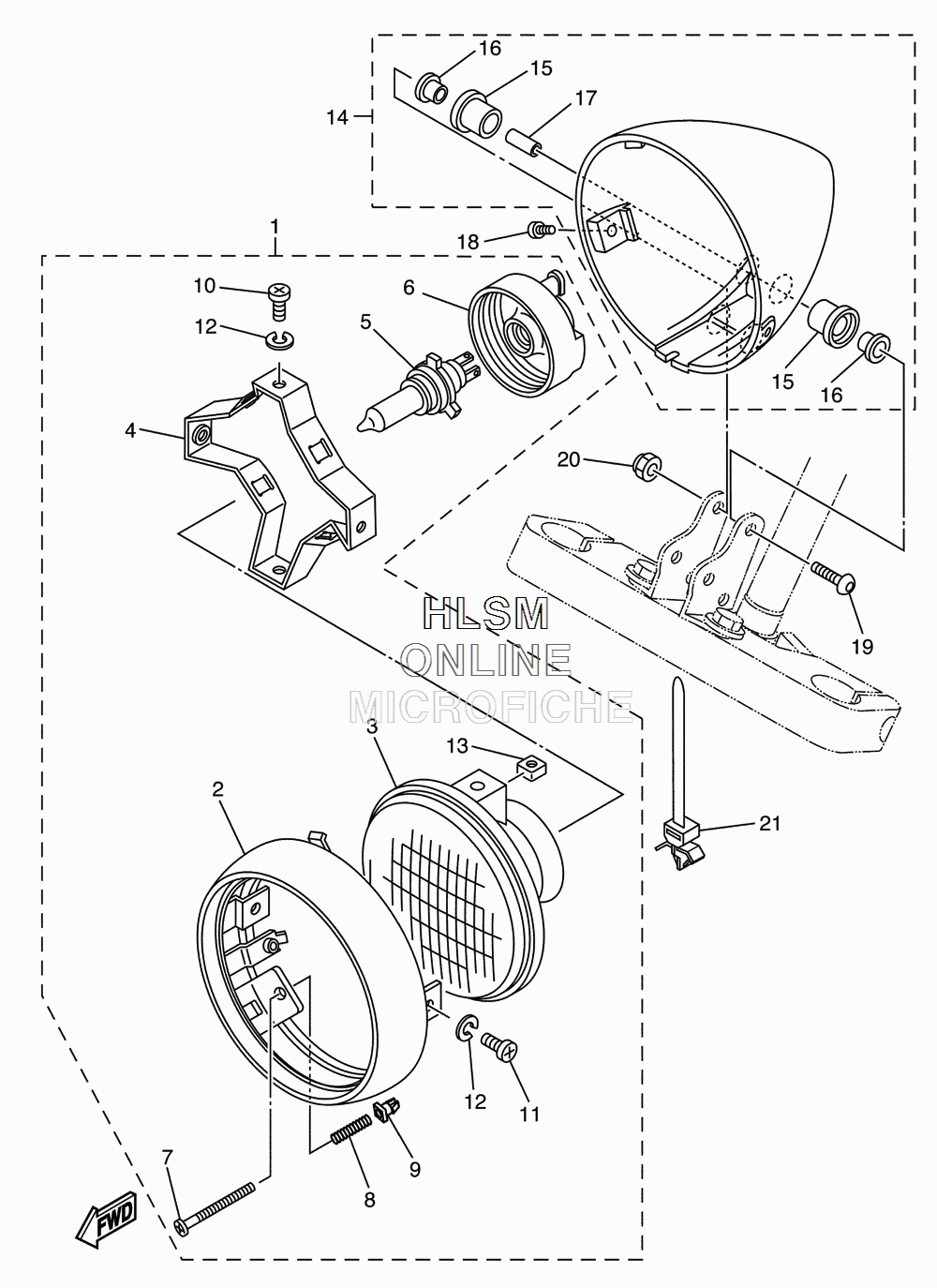

HEADLIGHT для Yamaha V STAR 650 CUSTOM [ XVS65AB/C] (3B6K/3B6L) - 2011 года выпуска
-
№АртикулНазвание
-
15KP-84310-01-00 HEADLIGHT UNIT ASSYHEADLIGHT UNIT ASSY
-
25JX-84315-01-00 ...RIM, HEADLIGHT...RIM, HEADLIGHT
-
35KP-84321-00-00 ...LENS ASSY...LENS ASSY
-
45JX-84316-00-00 ...BRACKET...BRACKET
-
52F9-84314-00-00 ...BULB, H4 12V60/55W...BULB, H4 12V60/55W
-
64JG-84397-00-00 ...COVER, SOCKET...COVER, SOCKET
-
7341-84331-60-00 ...SCREW, RIM ADJUSTING...SCREW, RIM ADJUSTING
-
85G2-84332-60-00 ...SPRING, SCREW...SPRING, SCREW
-
947J-84334-00-00 ...NUT, ADJUSTING...NUT, ADJUSTING
-
104KG-84365-00-00 ...SCREW...SCREW
-
1150W-84333-00-00 ...SCREW...SCREW
-
1292902-06100-00 ...WASHER, SPRING...WASHER, SPRING
-
134KG-84334-00-00 ...NUT, ADJUSTING...NUT, ADJUSTING
-
145JX-84330-00-00 BODY ASSYBODY ASSY
-
1542X-84345-00-00 ...DAMPER, HEADLIGHT...DAMPER, HEADLIGHT
-
161FK-84338-00-00 ...COLLAR, BODY FITTING...COLLAR, BODY FITTING
-
175JX-84388-00-00 ...COLLAR 1...COLLAR 1
-
1890157-05011-00 SCREW, PAN HEADSCREW, PAN HEAD
-
1992014-06045-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
2090176-06047-00 NUT,CAPNUT,CAP
-
2190464-12089-00 CLAMPCLAMP
