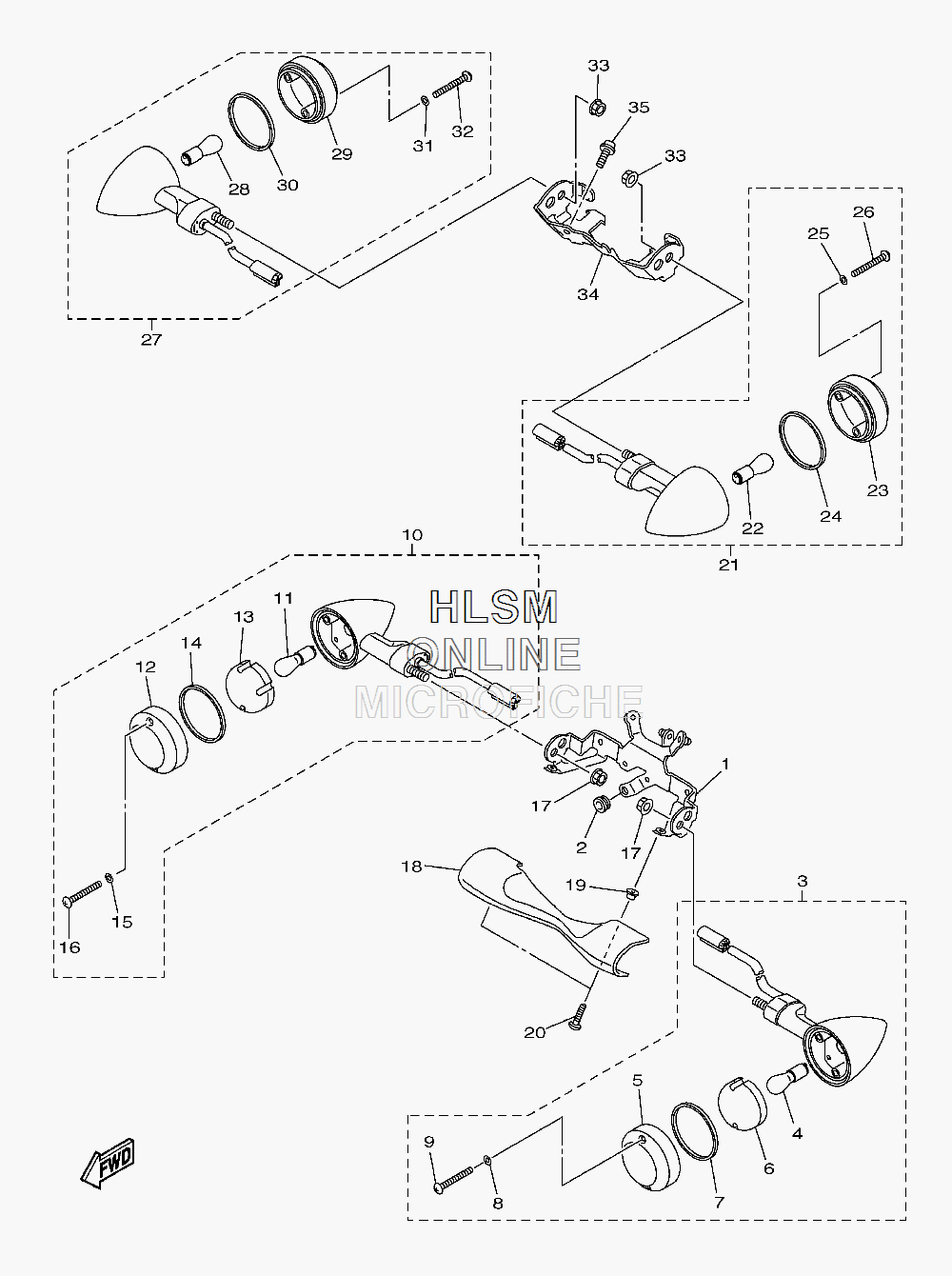

FLASHER LIGHT для Yamaha V STAR 950 TOURER B - 2011 года выпуска
-
№АртикулНазвание
-
15S7-23174-00-00 STAY, HEADLIGHTSTAY, HEADLIGHT
-
290480-13398-00 GROMMETGROMMET
-
33D8-83310-00-00 FRONT FLASHER LIGHT ASSY 1FRONT FLASHER LIGHT ASSY 1
-
41A2-84714-41-00 ...BULB (12V-21/5W)...BULB (12V-21/5W)
-
53D8-83312-00-00 ...LENS, FLASHER...LENS, FLASHER
-
63D8-8333L-00-00 ...LENS, INNER 1...LENS, INNER 1
-
73D8-83313-00-00 ...GASKET, FLASHER LENS...GASKET, FLASHER LENS
-
83D8-83348-00-00 ...WASHER...WASHER
-
997702-40630-00 ...SCREW, TAPPING...SCREW, TAPPING
-
103D8-83320-00-00 FRONT FLASHER LIGHT ASSY 2FRONT FLASHER LIGHT ASSY 2
-
111A2-84714-41-00 ...BULB (12V-21/5W)...BULB (12V-21/5W)
-
123D8-83312-00-00 ...LENS, FLASHER...LENS, FLASHER
-
133D8-8333L-00-00 ...LENS, INNER 1...LENS, INNER 1
-
143D8-83313-00-00 ...GASKET, FLASHER LENS...GASKET, FLASHER LENS
-
153D8-83348-00-00 ...WASHER...WASHER
-
1697702-40630-00 ...SCREW, TAPPING...SCREW, TAPPING
-
1795702-10500-00 NUT, FLANGENUT, FLANGE
-
183D8-23122-10-00 COVER, OUTER 1COVER, OUTER 1
-
1990387-06255-00 COLLARCOLLAR
-
2090111-05037-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
213D8-83330-00-00 REAR FLASHER LIGHT ASSY 1REAR FLASHER LIGHT ASSY 1
-
223D8-83311-00-00 ...BULB, FLASHER (12V21W)...BULB, FLASHER (12V21W)
-
233D8-83312-00-00 ...LENS, FLASHER...LENS, FLASHER
-
243D8-83313-00-00 ...GASKET, FLASHER LENS...GASKET, FLASHER LENS
-
253D8-83348-00-00 ...WASHER...WASHER
-
2697702-40630-00 ...SCREW, TAPPING...SCREW, TAPPING
-
273D8-83340-00-00 REAR FLASHER LIGHT ASSY 2REAR FLASHER LIGHT ASSY 2
-
283D8-83311-00-00 ...BULB, FLASHER (12V21W)...BULB, FLASHER (12V21W)
-
293D8-83312-00-00 ...LENS, FLASHER...LENS, FLASHER
-
303D8-83313-00-00 ...GASKET, FLASHER LENS...GASKET, FLASHER LENS
-
313D8-83348-00-00 ...WASHER...WASHER
-
3297702-40630-00 ...SCREW, TAPPING...SCREW, TAPPING
-
3395702-10500-00 NUT, FLANGENUT, FLANGE
-
345S7-83368-00-00 STAY, FLASHER 1STAY, FLASHER 1
-
3590110-06276-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
