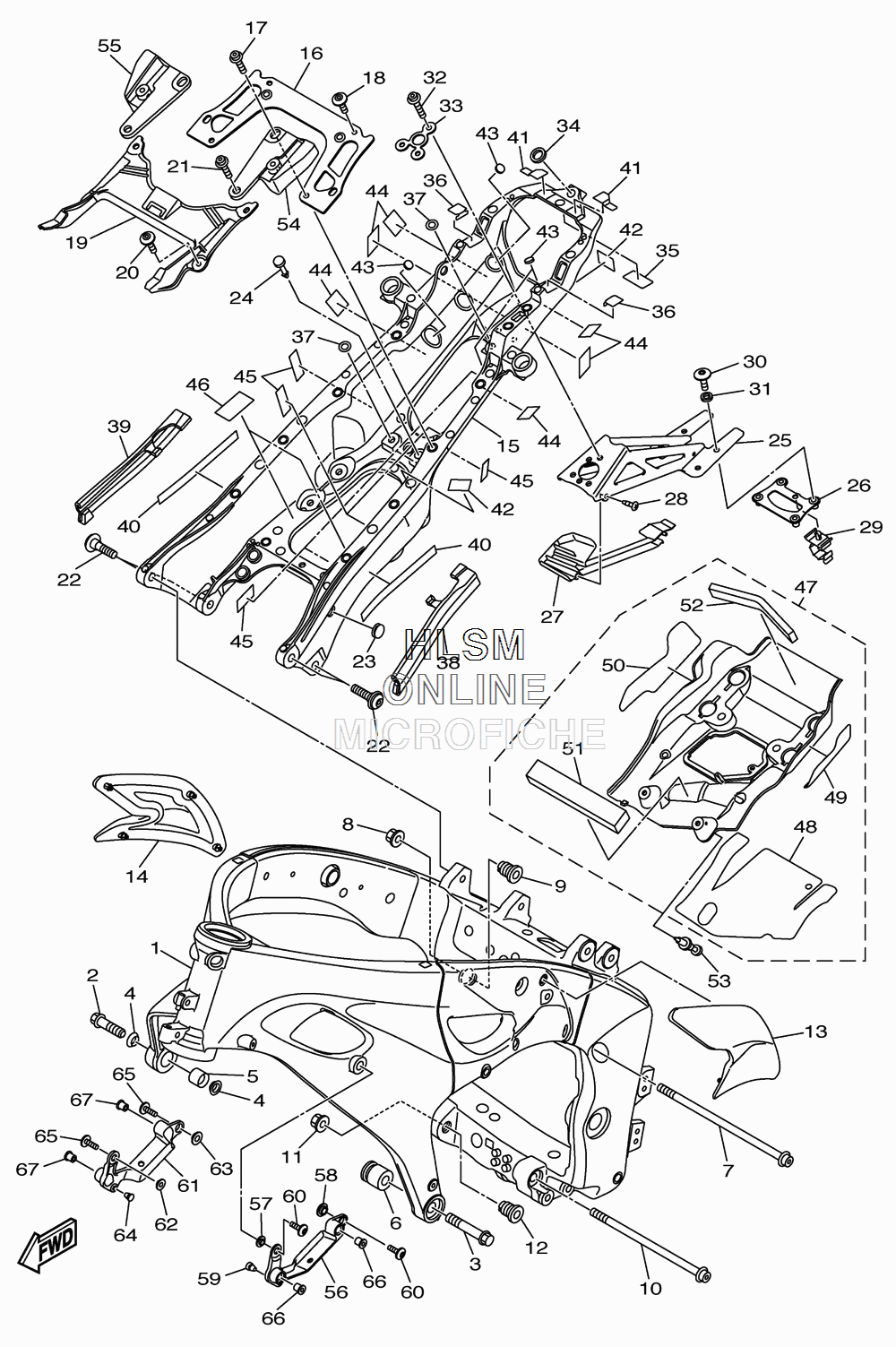

FRAME для Yamaha YZF-R1 (DEEP RED) - 2011 года выпуска
-
№АртикулНазвание
-
114B-21110-00-00 FRAME COMP. (EXCEPT CALIF.)FRAME COMP. (EXCEPT CALIF.)
-
114B-21110-20-00 FRAME COMP. (CALIF. ONLY)FRAME COMP. (CALIF. ONLY)
-
290105-12062-00 BOLT, FLANGEBOLT, FLANGE
-
395817-12080-00 BOLT, FLANGEBOLT, FLANGE
-
414B-21414-00-00 BOSS, ENGINE MOUNTBOSS, ENGINE MOUNT
-
514B-21424-00-00 BOSS, ENGINE MOUNTBOSS, ENGINE MOUNT
-
614B-2141R-00-00 BOSSBOSS
-
790110-10024-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
890179-10028-00 NUTNUT
-
914B-21495-00-00 BOLT, ENGINE ADJUSTINGBOLT, ENGINE ADJUSTING
-
1090110-10023-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
1190179-10028-00 NUTNUT
-
1214B-21495-00-00 BOLT, ENGINE ADJUSTINGBOLT, ENGINE ADJUSTING
-
1314B-24121-00-00 SEAT, KNEE GRIP 1SEAT, KNEE GRIP 1
-
1414B-24122-00-00 SEAT, KNEE GRIP 2SEAT, KNEE GRIP 2
-
1514B-21190-00-00 REAR FRAME COMP.REAR FRAME COMP.
-
1614B-21131-00-00 BRACKETBRACKET
-
1790109-06015-00 BOLTBOLT
-
1890111-06051-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
1914B-21214-00-00 REINF., FRAME RR.REINF., FRAME RR.
-
2090111-06051-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
2190109-06015-00 BOLTBOLT
-
2214B-2585H-09-00 SCREW, SETSCREW, SET
-
2390338-15004-00 PLUGPLUG
-
2490269-04025-00 RIVET, SPEC'L SHAPERIVET, SPEC'L SHAPE
-
2514B-21640-00-00 REAR STAY COMP.REAR STAY COMP.
-
2614B-21682-00-00 STAY, PLATESTAY, PLATE
-
2714B-2163A-00-00 COVER, REAR FENDER 1COVER, REAR FENDER 1
-
2897702-50016-00 SCREW, TAPPINGSCREW, TAPPING
-
2990464-14228-00 CLAMPCLAMP
-
3090111-06129-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
3190387-061Y1-00 COLLARCOLLAR
-
3290110-06156-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
3314B-21615-00-00 WASHER, SPECIAL 1WASHER, SPECIAL 1
-
3413S-21746-00-00 DAMPERDAMPER
-
3514B-22873-00-00 SEAL 1SEAL 1
-
3614B-22874-00-00 SEAL 2SEAL 2
-
3713S-2173M-00-00 SEAL 3SEAL 3
-
3814B-22876-00-00 SEAL 4SEAL 4
-
3914B-22877-00-00 SEAL, 5SEAL, 5
-
4013S-21567-00-00 TAPE, 2TAPE, 2
-
4114B-22879-00-00 SEAL, 7SEAL, 7
-
4214B-28425-00-00 DAMPER 3DAMPER 3
-
4314B-28217-00-00 DAMPER 1DAMPER 1
-
4414B-28227-00-00 DAMPER 2DAMPER 2
-
4514B-28237-00-00 DAMPER 3DAMPER 3
-
4614B-28435-00-00 DAMPER 4DAMPER 4
-
4714B-2110N-20-00 COVER ASSY 2COVER ASSY 2
-
4814B-2112B-00-00 ...SEAT 1...SEAT 1
-
4914B-2113C-00-00 ...SHEET 2...SHEET 2
-
5014B-2113D-00-00 ...SHEET 3...SHEET 3
-
5190520-15001-00 ...DAMPER, PLATE...DAMPER, PLATE
-
5290520-15004-00 ...DAMPER, PLATE...DAMPER, PLATE
-
5390269-06016-00 RIVETRIVET
-
5414B-2172E-10-00 STAY, SIDE COVER 1STAY, SIDE COVER 1
-
5514B-2174E-10-00 STAY, SIDE COVER 2STAY, SIDE COVER 2
-
5614B-2836F-00-00 BRACKET 3BRACKET 3
-
5790387-06217-00 COLLARCOLLAR
-
5890560-08251-00 SPACERSPACER
-
5990338-06018-00 PLUG, SPEC'L SHAPEPLUG, SPEC'L SHAPE
-
6090111-06051-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
6114B-2836G-00-00 BRACKET 4BRACKET 4
-
6290387-06217-00 COLLARCOLLAR
-
6390560-08251-00 SPACERSPACER
-
6490338-06018-00 PLUG, SPEC'L SHAPEPLUG, SPEC'L SHAPE
-
6590111-06051-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
6690179-05523-00 NUT,SPEC'L SHAPENUT,SPEC'L SHAPE
-
6790179-05523-00 NUT,SPEC'L SHAPENUT,SPEC'L SHAPE
