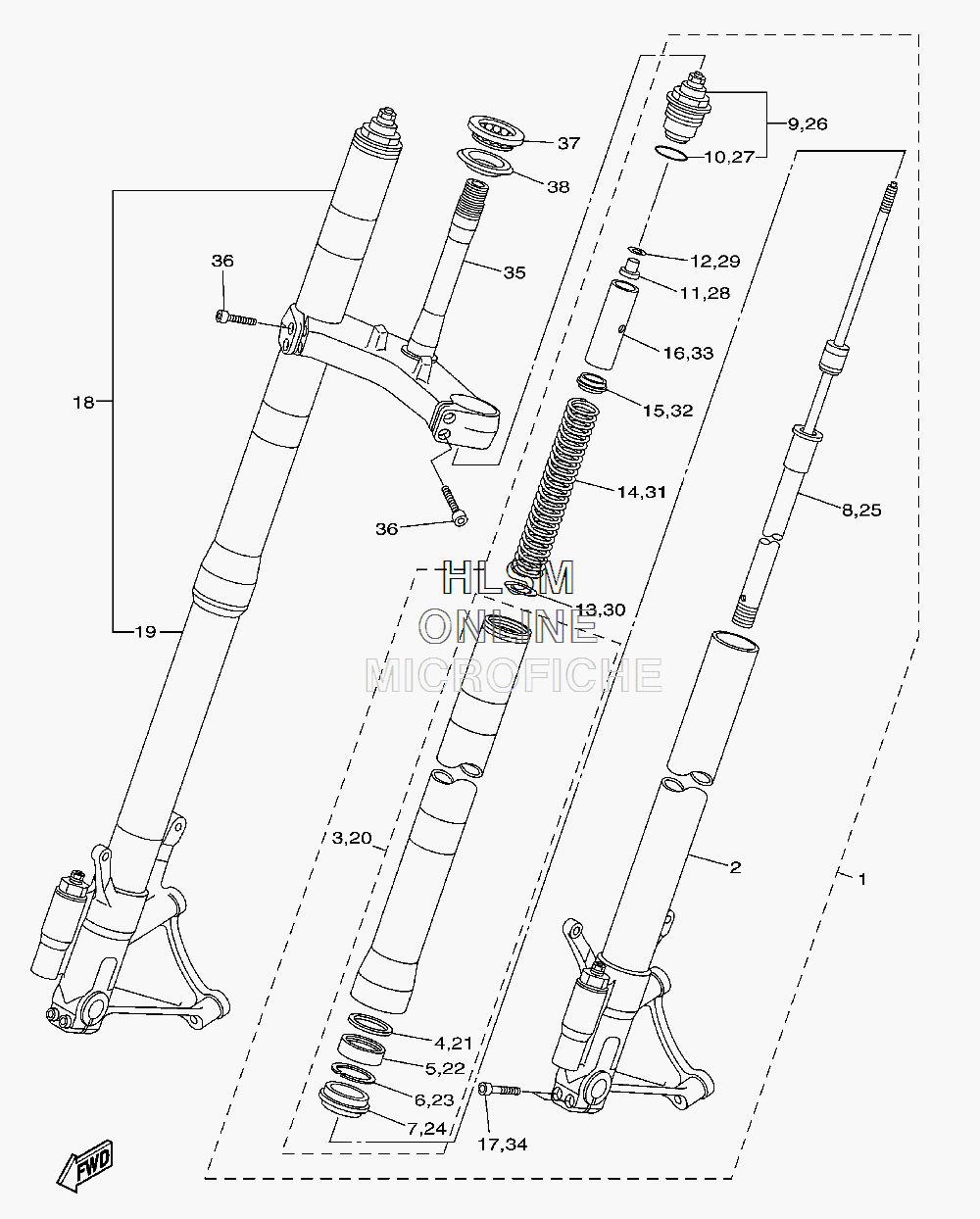

SUSPENSION - FRONT FORK для Yamaha YZF-R6 (BLACK METALLIC/PURPLISH BLUE) - 2011 года выпуска
-
№АртикулНазвание
-
113S-23102-02-00 FRONT FORK ASSY (L.H) (DPBMC)FRONT FORK ASSY (L.H) (DPBMC)
-
113S-23102-12-00 FRONT FORK ASSY (L.H) (SMX)FRONT FORK ASSY (L.H) (SMX)
-
213S-23110-02-00 ...INNER TUBE COMP. 1...INNER TUBE COMP. 1
-
313S-23106-00-00 ...OUTER TUBE COMP. (DPBMC)...OUTER TUBE COMP. (DPBMC)
-
313S-23106-10-00 ...OUTER TUBE COMP. (SMX)...OUTER TUBE COMP. (SMX)
-
43VD-23115-00-00 ......GUIDE, COVER UPPER......GUIDE, COVER UPPER
-
55VU-23145-00-00 ......OIL SEAL......OIL SEAL
-
63VD-23156-00-00 ......RING, SNAP......RING, SNAP
-
73VD-23144-00-00 ......SEAL, DUST......SEAL, DUST
-
813S-23170-00-00 ...CYLINDER COMP, FRONT FORK...CYLINDER COMP, FRONT FORK
-
913S-23111-00-00 ...BOLT, CAP...BOLT, CAP
-
1093210-41N50-00 ...O-RING...O-RING
-
1113S-23393-00-00 ...NUT, SPECIAL...NUT, SPECIAL
-
1213S-2332N-00-00 ...PLATE, VALVE 2...PLATE, VALVE 2
-
132C0-23143-00-00 ...SEAT, SPRING LOWER...SEAT, SPRING LOWER
-
1413S-23141-00-00 ...SPRING, FRONT FORK...SPRING, FRONT FORK
-
1513S-23142-00-00 ...SEAT, SPRING UPPER...SEAT, SPRING UPPER
-
1613S-23118-00-00 ...SPACER...SPACER
-
1791314-08040-00 ...BOLT, HEXAGON SOCKET HEAD...BOLT, HEXAGON SOCKET HEAD
-
1813S-23103-02-00 FRONT FORK ASSY (R.H) (DPBMC)FRONT FORK ASSY (R.H) (DPBMC)
-
1813S-23103-12-00 FRONT FORK ASSY (R.H) (SMX)FRONT FORK ASSY (R.H) (SMX)
-
1913S-23120-02-00 ...INNER TUBE COMP. 2...INNER TUBE COMP. 2
-
2013S-23106-00-00 ......OUTER TUBE COMP. (DPBMC)......OUTER TUBE COMP. (DPBMC)
-
2013S-23106-10-00 ......OUTER TUBE COMP. (SMX)......OUTER TUBE COMP. (SMX)
-
213VD-23115-00-00 ......GUIDE, COVER UPPER......GUIDE, COVER UPPER
-
225VU-23145-00-00 ......OIL SEAL......OIL SEAL
-
233VD-23156-00-00 ......RING, SNAP......RING, SNAP
-
243VD-23144-00-00 ......SEAL, DUST......SEAL, DUST
-
2513S-23170-00-00 ...CYLINDER COMP, FRONT FORK...CYLINDER COMP, FRONT FORK
-
2613S-23111-00-00 ...BOLT, CAP...BOLT, CAP
-
2793210-41N50-00 ...O-RING...O-RING
-
2813S-23393-00-00 ...NUT, SPECIAL...NUT, SPECIAL
-
2913S-2332N-00-00 ...PLATE, VALVE 2...PLATE, VALVE 2
-
302C0-23143-00-00 ...SEAT, SPRING LOWER...SEAT, SPRING LOWER
-
3113S-23141-00-00 ...SPRING, FRONT FORK...SPRING, FRONT FORK
-
3213S-23142-00-00 ...SEAT, SPRING UPPER...SEAT, SPRING UPPER
-
3313S-23118-00-00 ...SPACER...SPACER
-
3491314-08040-00 ...BOLT, HEXAGON SOCKET HEAD...BOLT, HEXAGON SOCKET HEAD
-
3513S-23340-00-00 UNDER BRACKET COMP.UNDER BRACKET COMP.
-
3691314-08030-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
3793399-99957-00 BEARINGBEARING
-
383FV-23462-00-00 SEAL, STEERINGSEAL, STEERING
