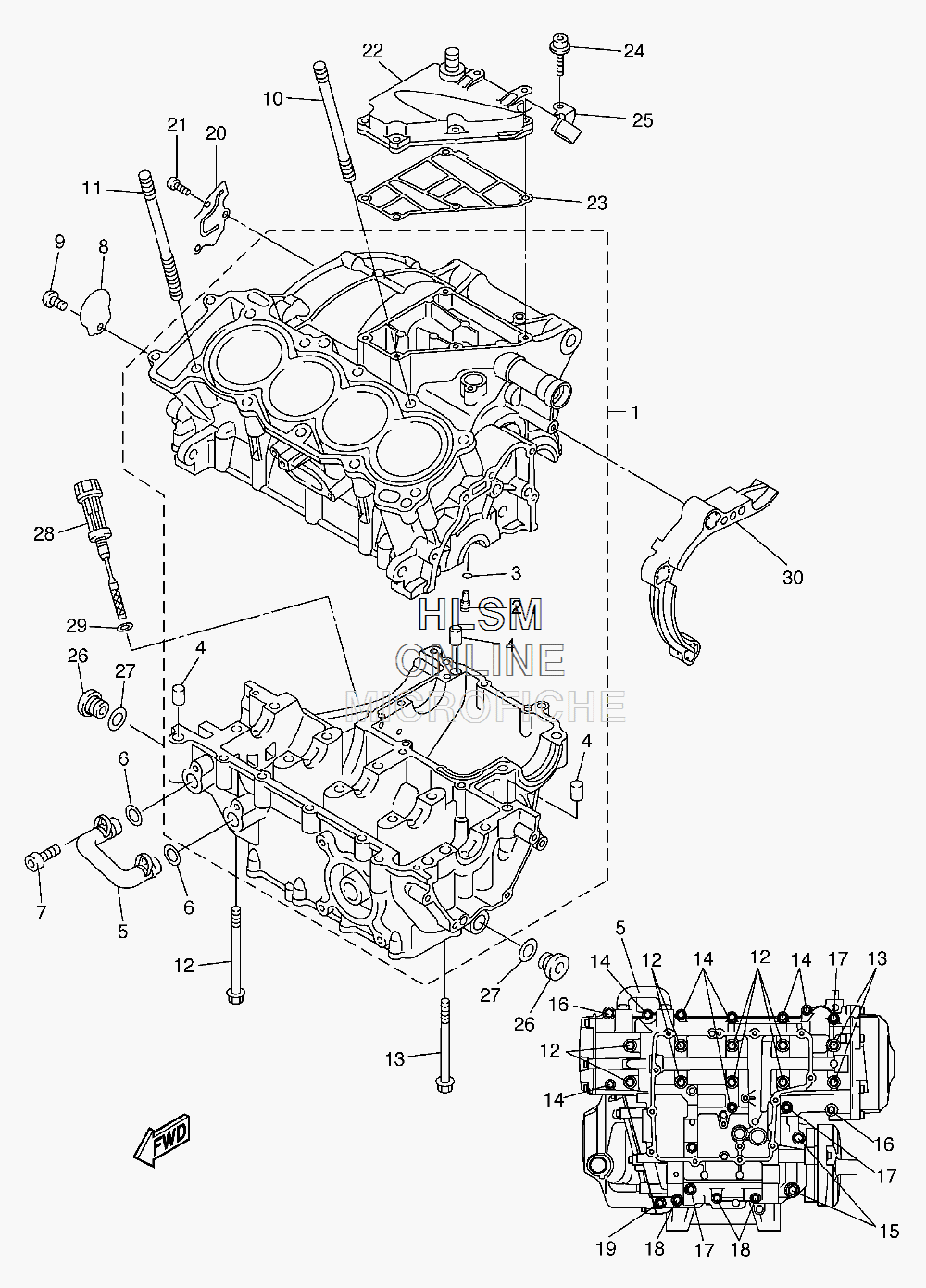

CRANKCASE для Yamaha YZF-R6 (DEEP RED) - 2011 года выпуска
-
№АртикулНазвание
-
12C0-15100-01-00 CRANKCASE ASSYCRANKCASE ASSY
-
25EB-15155-00-00 ...NOZZLE 3...NOZZLE 3
-
393210-04092-00 ...O-RING...O-RING
-
499530-10014-00 ...PIN, DOWEL...PIN, DOWEL
-
513S-13418-00-00 PIPE, OIL 2PIPE, OIL 2
-
693210-14579-00 O-RINGO-RING
-
790110-06161-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
813S-15189-00-00 PLUGPLUG
-
990149-06082-00 SCREWSCREW
-
1090116-10025-00 BOLT, STUDBOLT, STUD
-
1190116-10026-00 BOLT, STUDBOLT, STUD
-
1290119-08083-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
1390119-08084-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
1495812-06055-00 BOLT, FLANGEBOLT, FLANGE
-
1595812-08065-00 BOLT, FLANGEBOLT, FLANGE
-
1690109-06100-00 BOLTBOLT
-
1795812-06065-00 BOLT, FLANGEBOLT, FLANGE
-
1895812-06045-00 BOLT, FLANGEBOLT, FLANGE
-
1995812-06030-00 BOLT, FLANGEBOLT, FLANGE
-
202C0-11165-00-00 PLATE, BREATHERPLATE, BREATHER
-
2190149-06082-00 SCREWSCREW
-
222C0-15413-02-00 COVERCOVER
-
232C0-15462-01-00 GASKET, CRANKCASE COVER 3GASKET, CRANKCASE COVER 3
-
2490110-06326-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
252C0-24136-00-00 CLAMP 2 (CALIF. ONLY)CLAMP 2 (CALIF. ONLY)
-
252C0-24136-10-00 CLAMP 2CLAMP 2
-
2636Y-15189-00-00 PLUGPLUG
-
2793210-16325-00 O-RINGO-RING
-
282C0-15362-00-00 PLUG, OIL LEVELPLUG, OIL LEVEL
-
2993210-09165-00 O-RINGO-RING
-
302C0-15377-00-00 GUIDE, INLETGUIDE, INLET
