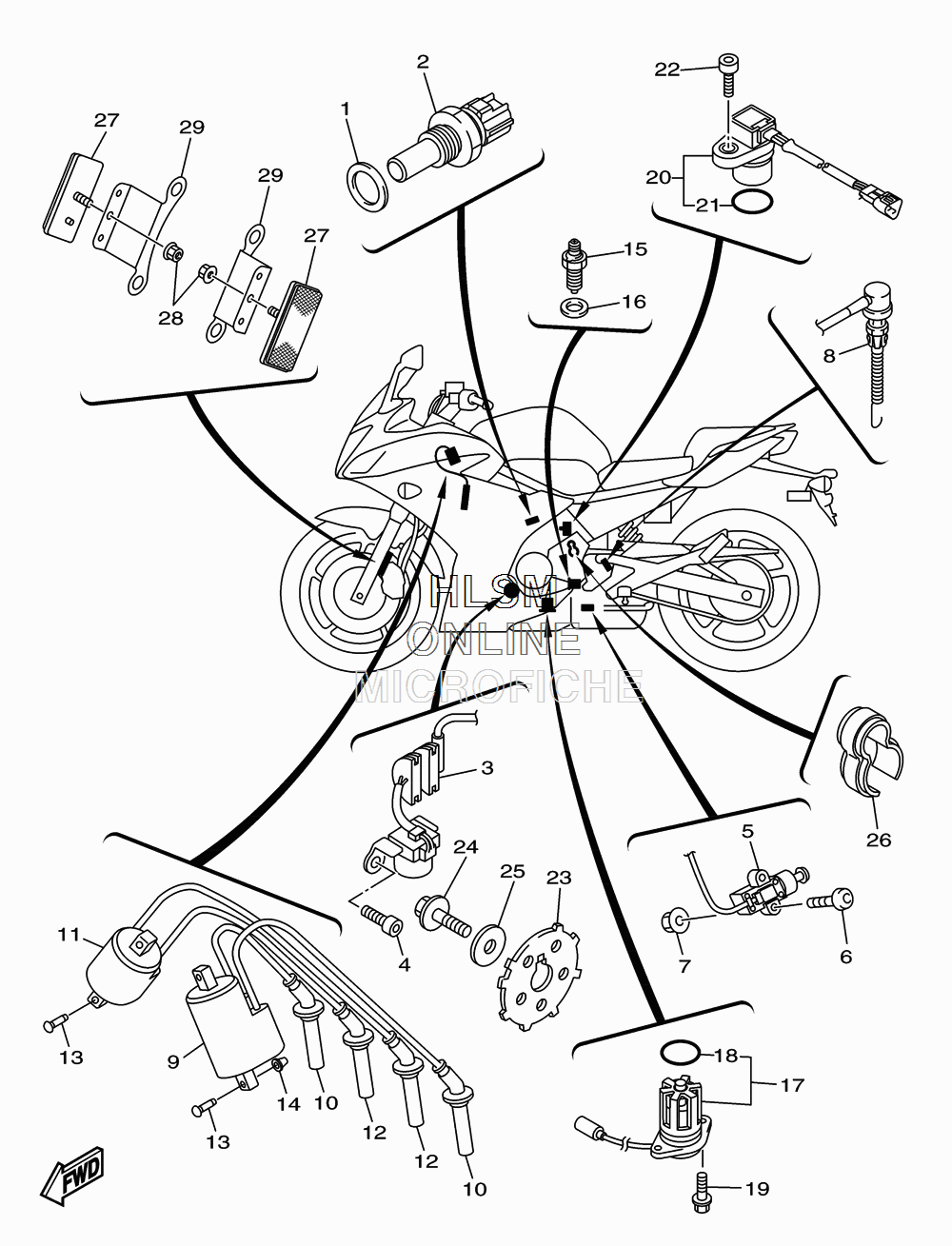

ELECTRICAL для Yamaha FZ6R (BLACK METALLIC X) - 2012 года выпуска
-
№АртикулНазвание
-
190201-12790-00 WASHER, PLATEWASHER, PLATE
-
28CC-85790-01-00 THERMOSENSOR ASSYTHERMOSENSOR ASSY
-
320S-81670-00-00 PICK-UP ASSYPICK-UP ASSY
-
490110-06161-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
520S-82566-60-00 SWITCH, SIDE STANDSWITCH, SIDE STAND
-
692012-05025-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
795602-05200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
820S-82530-00-00 STOP SWITCH ASSYSTOP SWITCH ASSY
-
920S-82310-00-00 IGNITION COIL ASSYIGNITION COIL ASSY
-
1020S-82370-01-00 PLUG CAP ASSYPLUG CAP ASSY
-
1120S-82320-00-00 IGNITION COIL ASSYIGNITION COIL ASSY
-
1220S-82370-01-00 PLUG CAP ASSYPLUG CAP ASSY
-
1397702-60525-00 SCREW, TAPPINGSCREW, TAPPING
-
1490338-08226-00 PLUGPLUG
-
153GB-82540-01-00 NEUTRAL SWITCH ASSYNEUTRAL SWITCH ASSY
-
1690430-10148-00 GASKETGASKET
-
175VX-85720-01-00 OIL LEVEL GAUGE ASSYOIL LEVEL GAUGE ASSY
-
185VY-8A8E0-00-00 ...O-RING...O-RING
-
1990105-06187-00 BOLT, FLANGEBOLT, FLANGE
-
204WM-83755-02-00 SENSOR, SPEEDSENSOR, SPEED
-
214D9-81168-00-00 ...O-RING...O-RING
-
2291312-06016-00 BOLTBOLT
-
2320S-81673-00-00 ROTORROTOR
-
2490105-08113-00 BOLT, FLANGEBOLT, FLANGE
-
2590201-08054-00 WASHER, PLATEWASHER, PLATE
-
2690464-15065-00 CLAMPCLAMP
-
2711H-85110-01-00 REFLECTOR ASSYREFLECTOR ASSY
-
2895602-05200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
2936P-85112-00-00 BRACKET, REFLECTOR 1BRACKET, REFLECTOR 1
