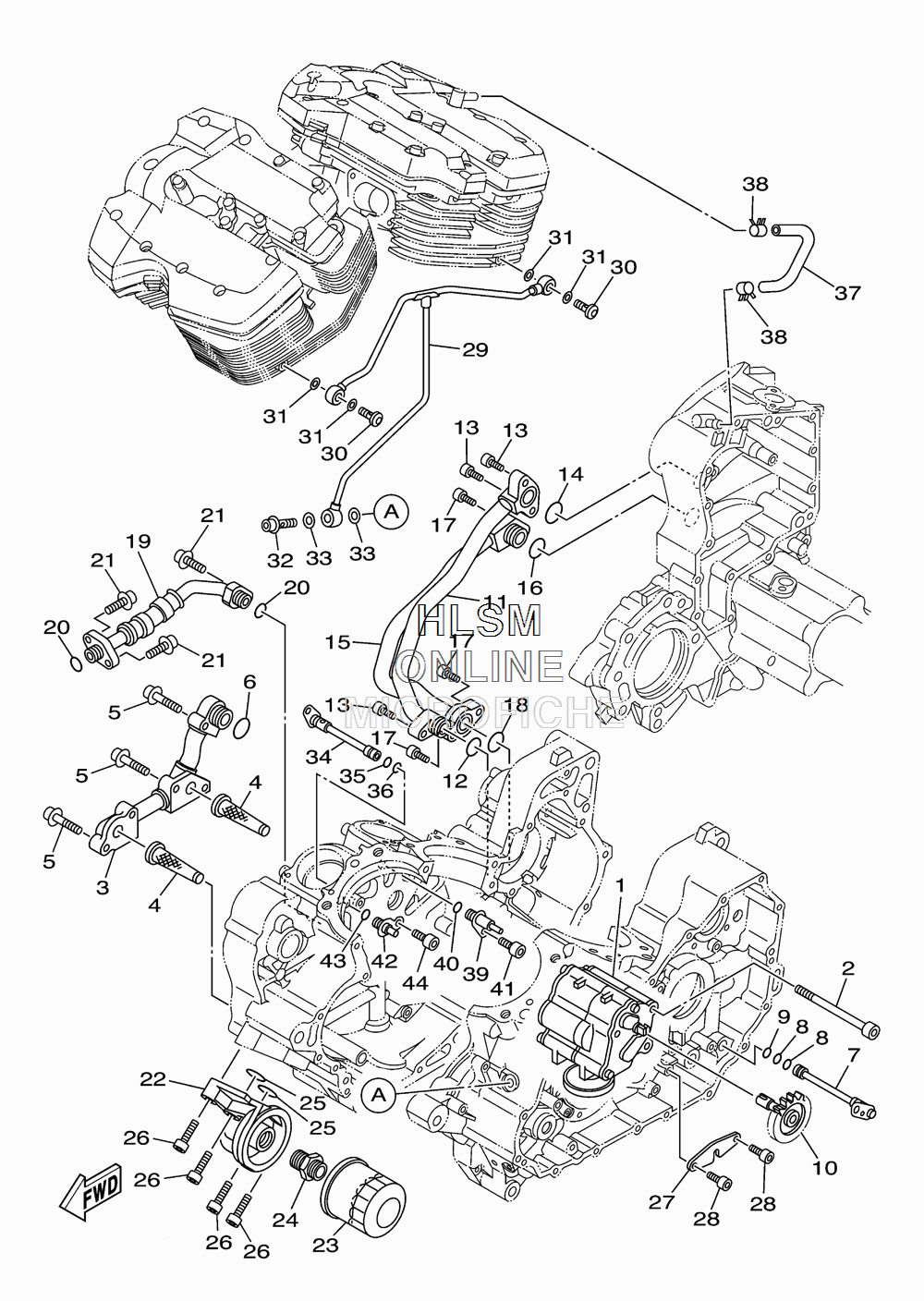

OIL PUMP для Yamaha RAIDER S (BLUE METALLIC X) - 2012 года выпуска
-
№АртикулНазвание
-
11D7-13300-00-00 OIL PUMP ASSYOIL PUMP ASSY
-
290110-08055-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
31D7-13406-00-00 OIL PIPE COMP. 2OIL PIPE COMP. 2
-
41D7-13415-00-00 SEAL, OIL STRAINERSEAL, OIL STRAINER
-
590110-06300-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
693210-21631-00 O-RINGO-RING
-
75C7-13171-00-00 PIPE, DELIVERY 2PIPE, DELIVERY 2
-
893210-09350-00 O-RINGO-RING
-
993210-07435-00 O-RINGO-RING
-
101D7-13360-00-00 DRIVEN GEAR ASSYDRIVEN GEAR ASSY
-
111D7-13416-00-00 PIPE, OIL 1PIPE, OIL 1
-
1293210-18006-00 O-RINGO-RING
-
1391314-06025-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
1493210-21631-00 O-RINGO-RING
-
151D7-13418-00-00 PIPE, OIL 2PIPE, OIL 2
-
1693210-21631-00 O-RINGO-RING
-
1791314-06025-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
1893210-18006-00 O-RINGO-RING
-
191D7-13161-00-00 PIPE, DELIVERY 1PIPE, DELIVERY 1
-
2093210-13657-00 O-RINGO-RING
-
2190110-06195-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
225MB-13461-10-00 PLATE, ADAPTORPLATE, ADAPTOR
-
235GH-13440-20-00 ELEMENT ASSY, OIL CLEANERELEMENT ASSY, OIL CLEANER
-
2490401-20008-00 BOLT, UNIONBOLT, UNION
-
2593210-23326-00 O-RINGO-RING
-
2690110-06177-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
274WM-1357N-01-00 PLATE, STOPPER 1PLATE, STOPPER 1
-
2890110-06161-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
291D7-13405-00-00 OIL PIPE COMP. 1OIL PIPE COMP. 1
-
3090401-10175-00 BOLT, UNIONBOLT, UNION
-
3190430-10188-00 GASKETGASKET
-
321D7-13165-00-00 BOLT, BANJOBOLT, BANJO
-
3390430-08119-00 GASKETGASKET
-
341D7-13181-00-00 PIPE, DELIVERY 3PIPE, DELIVERY 3
-
3593210-08003-00 O-RINGO-RING
-
3693210-07435-00 O-RINGO-RING
-
371D7-13464-00-00 HOSE, OIL 1HOSE, OIL 1
-
3890467-120A0-00 CLIPCLIP
-
395C7-13352-00-00 NOZZLENOZZLE
-
4093210-07435-00 O-RINGO-RING
-
4190110-06168-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
425C7-13454-00-00 NOZZLENOZZLE
-
4393210-07435-00 O-RINGO-RING
-
4490110-06168-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
