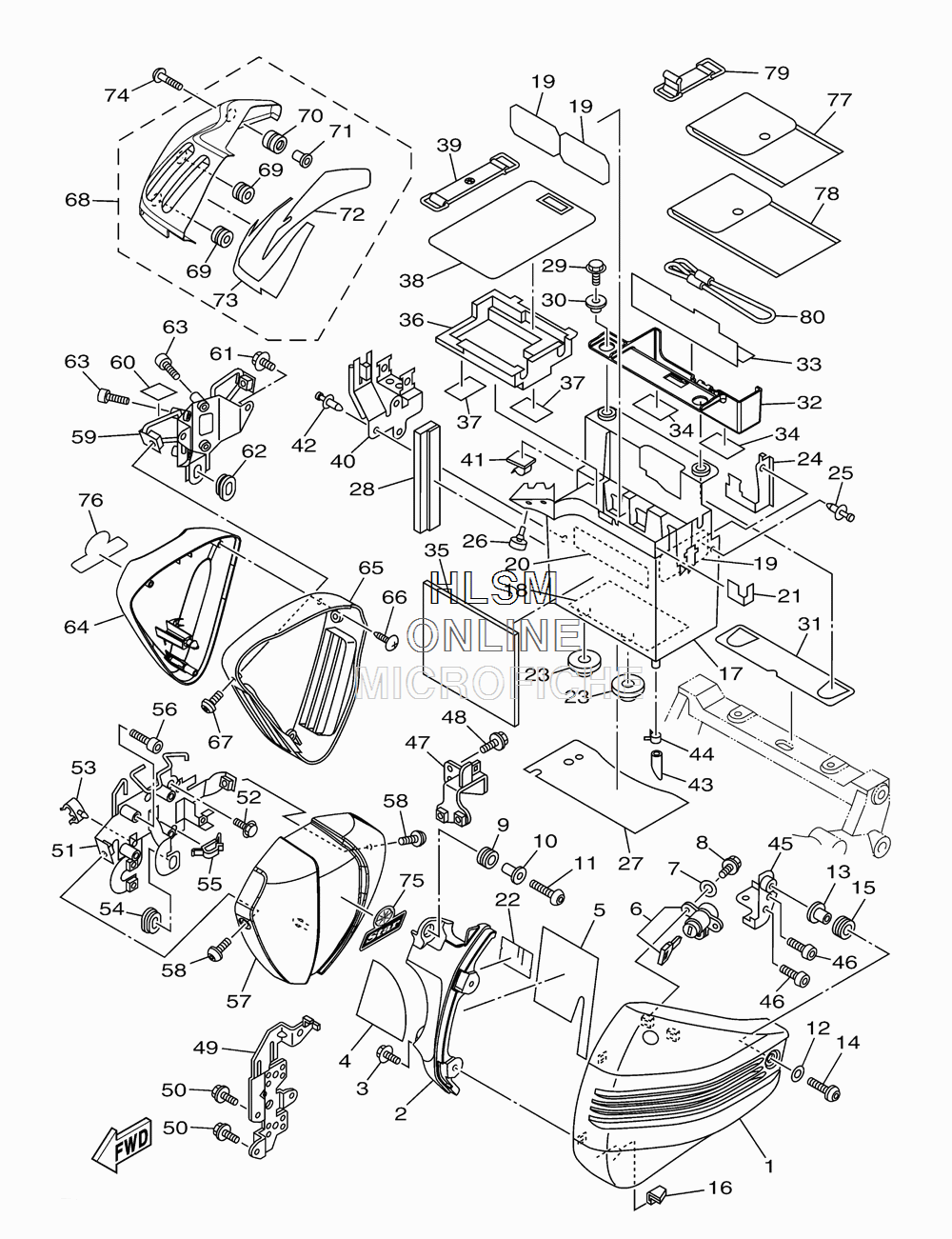

SIDE COVER для Yamaha RAIDER SCL - 2012 года выпуска
-
№АртикулНазвание
-
11D7-21711-00-P1 COVER, SIDE 1 (BLACK METALLIC X)COVER, SIDE 1 (BLACK METALLIC X)
-
11D7-21711-00-PF COVER, SIDE 1 (FOR PBMJ)COVER, SIDE 1 (FOR PBMJ)
-
21D7-2117X-00-00 COVER 9COVER 9
-
390105-06020-00 BOLT, FLANGEBOLT, FLANGE
-
41D7-21735-00-00 SEAL 2SEAL 2
-
51D7-21746-00-00 DAMPERDAMPER
-
65PX-W2470-00-00 ROTOR SETROTOR SET
-
790201-06034-00 WASHER, PLATEWASHER, PLATE
-
890105-06639-00 BOLT, FLANGEBOLT, FLANGE
-
990480-14323-00 GROMMETGROMMET
-
1090387-066Y6-00 COLLARCOLLAR
-
1192014-06020-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
1290201-06M01-00 WASHER, PLATEWASHER, PLATE
-
1390560-06201-00 SPACERSPACER
-
1490149-06023-00 SCREWSCREW
-
1590480-12007-00 GROMMETGROMMET
-
165PX-2171H-00-00 GUIDEGUIDE
-
171D7-2177G-02-00 BOX, BATTERYBOX, BATTERY
-
185C7-21779-00-00 DAMPER, LOCATING 2DAMPER, LOCATING 2
-
195PX-21652-00-00 PROTECTORPROTECTOR
-
205PX-21778-00-00 DAMPER, LOCATING 1DAMPER, LOCATING 1
-
215C7-2173N-00-00 SEAL 4SEAL 4
-
225C7-21735-00-00 SEAL 2SEAL 2
-
2390480-20384-00 GROMMETGROMMET
-
245C7-2172M-00-00 BRACKET 3BRACKET 3
-
2590269-07077-00 RIVETRIVET
-
261D7-2174X-00-00 DAMPERDAMPER
-
271D7-2177N-01-00 DAMPER, LOCATING 4DAMPER, LOCATING 4
-
281D7-21778-00-00 DAMPER, LOCATING 1DAMPER, LOCATING 1
-
2995022-06020-00 BOLT, FLANGEBOLT, FLANGE
-
3090387-06109-00 COLLARCOLLAR
-
315C7-21747-00-00 DAMPERDAMPER
-
325C7-28173-00-00 BOX, TOOLBOX, TOOL
-
335C7-2174Y-00-00 DAMPERDAMPER
-
343YL-12232-00-00 DAMPERDAMPER
-
351D7-21732-00-00 SEAL 1SEAL 1
-
365PX-82129-00-00 COVER, BATTERYCOVER, BATTERY
-
375JW-2139X-00-00 DAMPERDAMPER
-
385VN-8412H-00-00 STAY SETTINGSTAY SETTING
-
39120-82131-00-00 BAND, BATTERYBAND, BATTERY
-
401D7-2172K-00-00 BRACKET 1BRACKET 1
-
4190464-25160-00 CLAMPCLAMP
-
4290269-07077-00 RIVETRIVET
-
4390445-11027-00 HOSEHOSE
-
4490467-11090-00 CLIPCLIP
-
451D7-2175T-00-00 BRACKET 1BRACKET 1
-
4692012-06016-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
475C7-2172N-00-00 BRACKET 4BRACKET 4
-
4895807-06014-00 BOLT, FLANGEBOLT, FLANGE
-
495PX-2174E-00-00 STAY, SIDE COVER 2STAY, SIDE COVER 2
-
5095022-06012-00 BOLT, FLANGEBOLT, FLANGE
-
515C7-2175V-00-00 BRACKET 3BRACKET 3
-
5295802-08035-00 BOLT, FLANGEBOLT, FLANGE
-
5390464-09130-00 CLAMPCLAMP
-
5490480-01558-00 GROMMETGROMMET
-
5590464-14001-00 CLAMPCLAMP
-
5690110-06213-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
575C7-21731-01-00 COVER, SIDE 3COVER, SIDE 3
-
5890149-06302-00 SCREWSCREW
-
591D7-2175W-00-00 BRACKET 4BRACKET 4
-
605C7-2173M-00-00 SEAL 3SEAL 3
-
6195022-06010-00 BOLT, FLANGEBOLT, FLANGE
-
6290480-01558-00 GROMMETGROMMET
-
6390110-06213-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
645C7-21741-01-00 COVER, SIDE 4COVER, SIDE 4
-
651D7-2171D-00-00 BODYBODY
-
6690167-05077-00 SCREW, TAPPINGSCREW, TAPPING
-
6790149-06022-00 SCREWSCREW
-
685C7-17471-00-P3 PLATE, COVER (BLACK METALLIC X)PLATE, COVER (BLACK METALLIC X)
-
685C7-17471-00-PC PLATE, COVER (FOR PBMJ)PLATE, COVER (FOR PBMJ)
-
6990480-13007-00 ...GROMMET...GROMMET
-
7090480-13006-00 ...GROMMET...GROMMET
-
7190387-07007-00 ...COLLAR...COLLAR
-
725C7-15379-00-00 ...SEAL, CRANKCASE...SEAL, CRANKCASE
-
735C7-15663-00-00 ...SEAL...SEAL
-
7490111-06039-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
7529P-2173D-00-00 EMBLEM 3DEMBLEM 3D
-
7629P-2173D-00-00 EMBLEM 3DEMBLEM 3D
-
775C7-28100-00-00 TOOL KITTOOL KIT
-
785C7-28110-00-00 TOOL KIT, 2TOOL KIT, 2
-
793TJ-82131-00-00 BAND, BATTERYBAND, BATTERY
-
804HC-21398-00-00 HANGER, HELMETHANGER, HELMET
