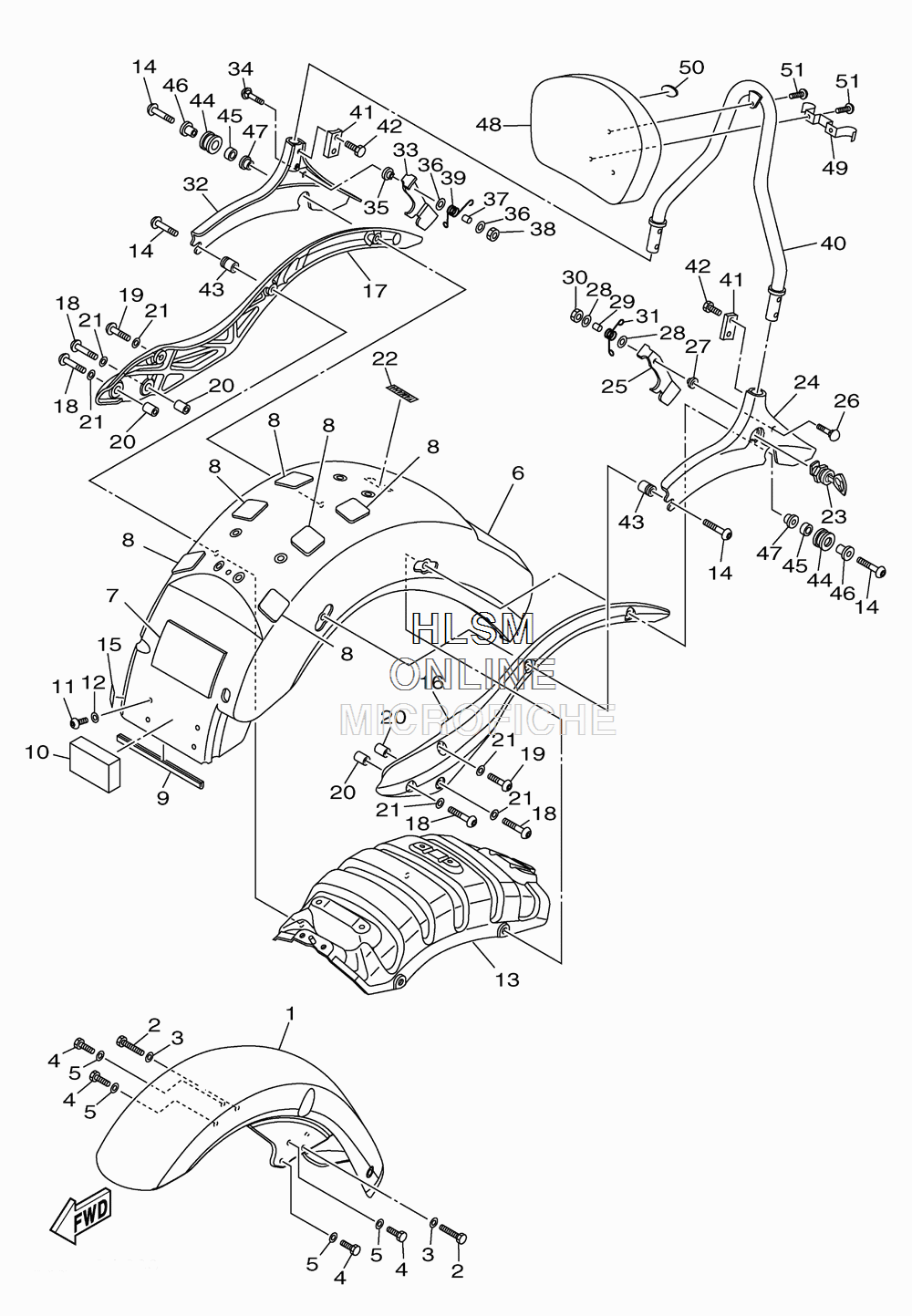

FENDER - FRONT / REAR для Yamaha STRATOLINER S - 2012 года выпуска
-
№АртикулНазвание
-
11D7-YK215-10-P1 FRONT FENDER COMP. (BLACK METALLIC M)FRONT FENDER COMP. (BLACK METALLIC M)
-
297022-08030-00 BOLTBOLT
-
392902-08600-00 WASHER, PLATEWASHER, PLATE
-
497022-08016-00 BOLTBOLT
-
592902-08600-00 WASHER, PLATEWASHER, PLATE
-
61D7-YK216-00-PD REAR FENDER COMP. (BLACK METALLIC M)REAR FENDER COMP. (BLACK METALLIC M)
-
75PX-21779-00-00 DAMPER, LOCATING 2DAMPER, LOCATING 2
-
85PX-21669-01-00 SEALSEAL
-
91D7-24188-00-00 MOLD, FUEL TANKMOLD, FUEL TANK
-
101D7-21639-00-00 DAMPER 2DAMPER 2
-
1190111-06065-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
1290201-06036-00 WASHER, PLATEWASHER, PLATE
-
131D7-21643-00-00 STAY, REARSTAY, REAR
-
1490111-08033-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
153FY-21575-01-00 SEAL 1SEAL 1
-
161D7-21613-00-00 STAY, FENDER 1STAY, FENDER 1
-
171D7-21614-00-00 STAY, FENDER 2STAY, FENDER 2
-
1892014-10050-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
1990111-10025-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
2099530-14016-00 PIN, DOWELPIN, DOWEL
-
2190201-10M63-00 WASHER, PLATEWASHER, PLATE
-
221D6-2153E-00-00 EMBLEM, YAMAHAEMBLEM, YAMAHA
-
232C5-28409-01-00 LOCK ASSY. 2LOCK ASSY. 2
-
242C5-F846H-00-00 PLATE, 4PLATE, 4
-
252C5-F8488-00-00 HOOKHOOK
-
262C5-F844M-00-00 SHAFT 1SHAFT 1
-
272C5-F8467-00-00 SPACERSPACER
-
282C5-F8319-00-00 WASHERWASHER
-
292C5-F849T-00-00 PLATE, GUIDEPLATE, GUIDE
-
3095680-06100-00 NUT, UNUT, U
-
312C5-F8489-00-00 SPRINGSPRING
-
322C5-F847H-00-00 PLATE 5PLATE 5
-
332C5-F8498-00-00 HOOK 2HOOK 2
-
342C5-F844M-00-00 SHAFT 1SHAFT 1
-
352C5-F8467-00-00 SPACERSPACER
-
362C5-F8319-00-00 WASHERWASHER
-
372C5-F849T-00-00 PLATE, GUIDEPLATE, GUIDE
-
3895680-06100-00 NUT, UNUT, U
-
392C5-F848A-00-00 SPRING 2SPRING 2
-
402C5-F8426-00-00 BRACKET 1BRACKET 1
-
412C5-F8417-00-00 PLATEPLATE
-
4297014-08020-00 BOLT, HEXAGONBOLT, HEXAGON
-
432C5-F842L-00-00 PIN, STOPPERPIN, STOPPER
-
442C5-F845L-00-00 STOPPER, OPENSTOPPER, OPEN
-
452C5-F836T-00-00 DAMPER, LOCATING 1DAMPER, LOCATING 1
-
462C5-F8329-00-00 SPACERSPACER
-
472C5-F8425-00-00 DAMPER 3DAMPER 3
-
481D6-2840F-10-00 BACK REST ASSYBACK REST ASSY
-
495GA-2164G-00-00 STAY 2STAY 2
-
505GA-24786-01-00 EMBLEMEMBLEM
-
5192014-06012-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
