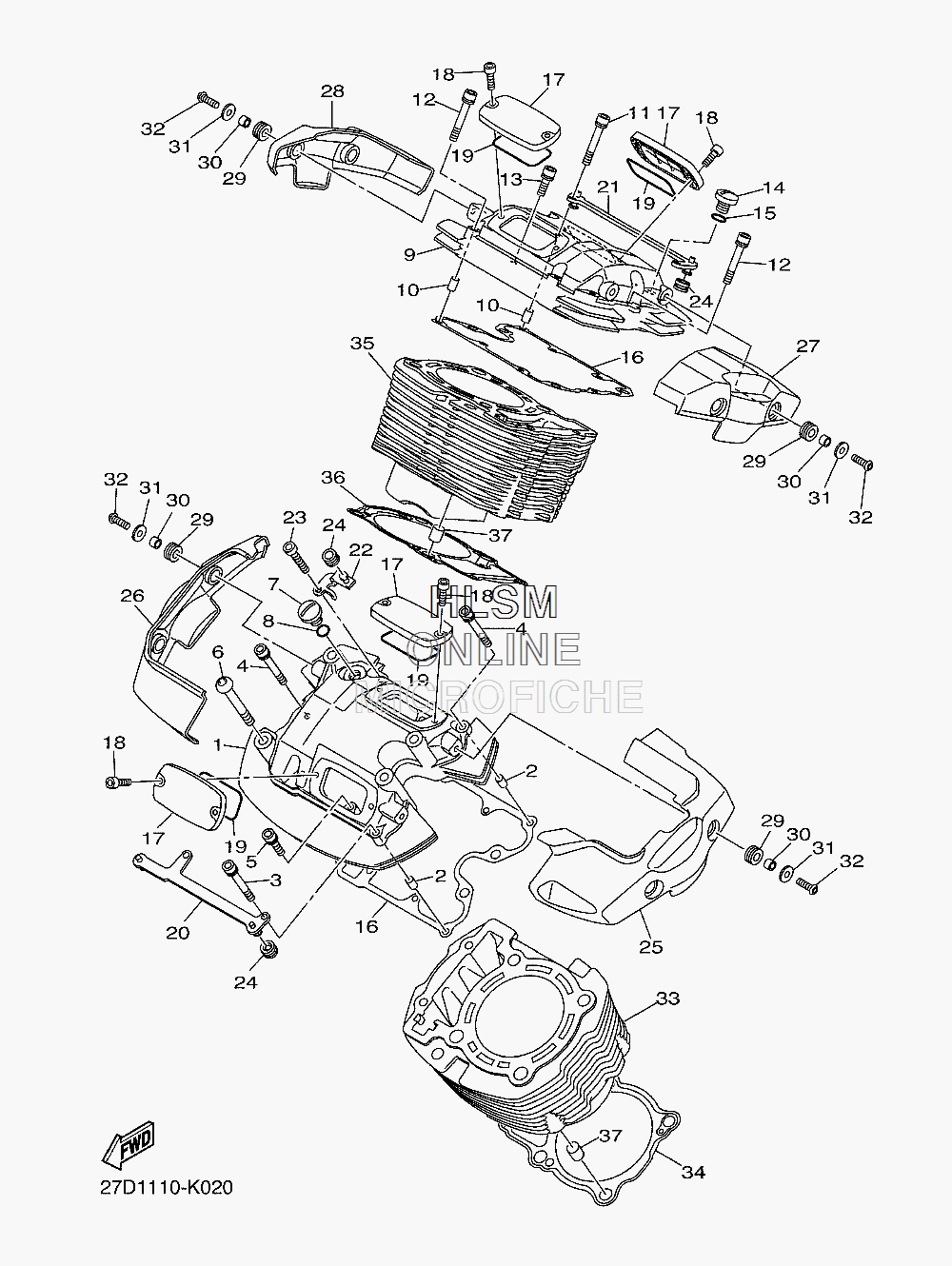

CYLINDER для Yamaha STRYKER (BLACK METALLIC X) - 2012 года выпуска
-
№АртикулНазвание
-
13D8-11191-00-00 COVER, CYLINDER HEAD 1COVER, CYLINDER HEAD 1
-
291808-16023-00 ...PIN, DOWEL...PIN, DOWEL
-
390110-06269-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
490110-06268-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
590110-06267-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
690111-10053-00 BOLT,HEX. SOCKET BUTTONBOLT,HEX. SOCKET BUTTON
-
790340-14117-00 PLUG, STRAIGHT SCREWPLUG, STRAIGHT SCREW
-
893210-14369-00 O-RINGO-RING
-
93D8-11192-00-00 COVER, CYLINDER HEAD 2COVER, CYLINDER HEAD 2
-
1091808-16023-00 ...PIN, DOWEL...PIN, DOWEL
-
1190110-06269-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
1290110-06268-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
1390110-06267-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
1490340-14117-00 PLUG, STRAIGHT SCREWPLUG, STRAIGHT SCREW
-
1593210-14369-00 O-RINGO-RING
-
163D8-11193-00-00 GASKET, HEAD COVER 1GASKET, HEAD COVER 1
-
1727D-11186-00-00 COVER, CYLINDER HEAD SIDE 2COVER, CYLINDER HEAD SIDE 2
-
1891312-06020-00 BOLTBOLT
-
193D8-11196-00-00 GASKET, CYLINDER HEAD SIDEGASKET, CYLINDER HEAD SIDE
-
203D8-1112F-01-00 PLATE 2PLATE 2
-
213D8-1113F-01-00 PLATE 3PLATE 3
-
2227D-1111F-00-00 PLATEPLATE
-
2391312-06050-00 BOLTBOLT
-
2490480-10334-00 GROMMETGROMMET
-
2527D-1111M-00-00 COVER 1COVER 1
-
263D8-1111N-00-00 COVER 2COVER 2
-
273D8-1111P-00-00 COVER 3COVER 3
-
283D8-1111R-00-00 COVER 4COVER 4
-
2990480-13022-00 GROMMETGROMMET
-
3090387-06207-00 COLLARCOLLAR
-
3190201-06088-00 WASHER, PLATEWASHER, PLATE
-
3290111-06038-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
333D8-11311-00-00 CYLINDER 1CYLINDER 1
-
343D8-11351-00-00 GASKET, CYLINDERGASKET, CYLINDER
-
353D8-11321-00-00 CYLINDER 2CYLINDER 2
-
363D8-11352-00-00 GASKET, CYLINDER 2GASKET, CYLINDER 2
-
3799530-08016-00 PIN, DOWELPIN, DOWEL
