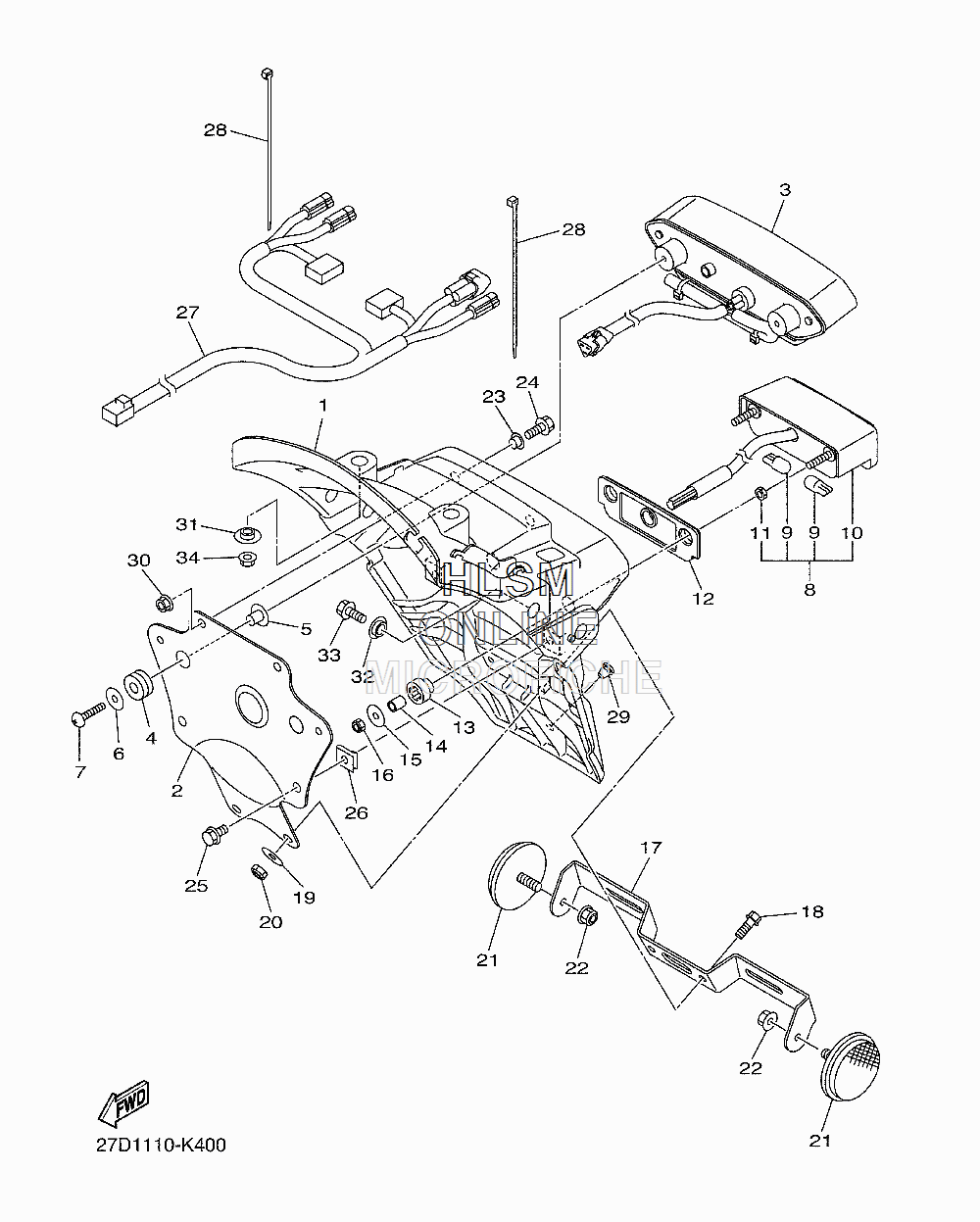

TAILLIGHT для Yamaha STRYKER (YELLOWISH RED COCKTAIL) - 2012 года выпуска
-
№АртикулНазвание
-
127D-84711-00-00 BASE, TAILLIGHTBASE, TAILLIGHT
-
227D-2117E-00-00 BRACKET, TAILLIGHTBRACKET, TAILLIGHT
-
327D-84710-00-00 TAILLIGHT UNIT ASSYTAILLIGHT UNIT ASSY
-
490480-14052-00 GROMMETGROMMET
-
590387-06271-00 COLLARCOLLAR
-
690201-05033-00 WASHER, PLATEWASHER, PLATE
-
797702-50025-00 SCREW, TAPPINGSCREW, TAPPING
-
827D-84745-00-00 LICENSE LIGHT UNIT ASSYLICENSE LIGHT UNIT ASSY
-
95PX-84744-00-00 ...BULB (12V-2CP)...BULB (12V-2CP)
-
105PX-84749-00-00 ...BODY, LICENSE LIGHT...BODY, LICENSE LIGHT
-
115PX-84748-00-00 ...NUT, SPECIAL...NUT, SPECIAL
-
125PX-84742-00-00 SEAT, BASESEAT, BASE
-
133F9-84553-00-00 DAMPERDAMPER
-
1490387-06241-00 COLLARCOLLAR
-
1590201-05025-00 WASHER, PLATEWASHER, PLATE
-
1695602-05100-00 NUT, UNUT, U
-
175C7-84751-00-00 BRACKET, LICENSEBRACKET, LICENSE
-
1895027-06016-00 BOLT, FLANGEBOLT, FLANGE
-
1990201-06380-00 WASHER PLAINWASHER PLAIN
-
2095607-06100-00 NUT, UNUT, U
-
21449-85131-02-00 REFLECTOR, REAR 1REFLECTOR, REAR 1
-
2295602-05200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
2390387-0611K-00 COLLARCOLLAR
-
2495802-06016-00 BOLT, FLANGEBOLT, FLANGE
-
2595807-06012-00 BOLT, FLANGEBOLT, FLANGE
-
2690183-06053-00 NUT, SPRINGNUT, SPRING
-
2727D-84717-00-00 CORD, TAILLIGHTCORD, TAILLIGHT
-
285Y9-12491-00-00 CLAMP 1CLAMP 1
-
2990338-06018-00 PLUGPLUG
-
3095707-06500-00 NUT, FLANGENUT, FLANGE
-
3190387-06153-00 COLLARCOLLAR
-
3290560-08251-00 SPACERSPACER
-
3390105-06066-00 BOLT, FLANGEBOLT, FLANGE
-
3495602-06200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
