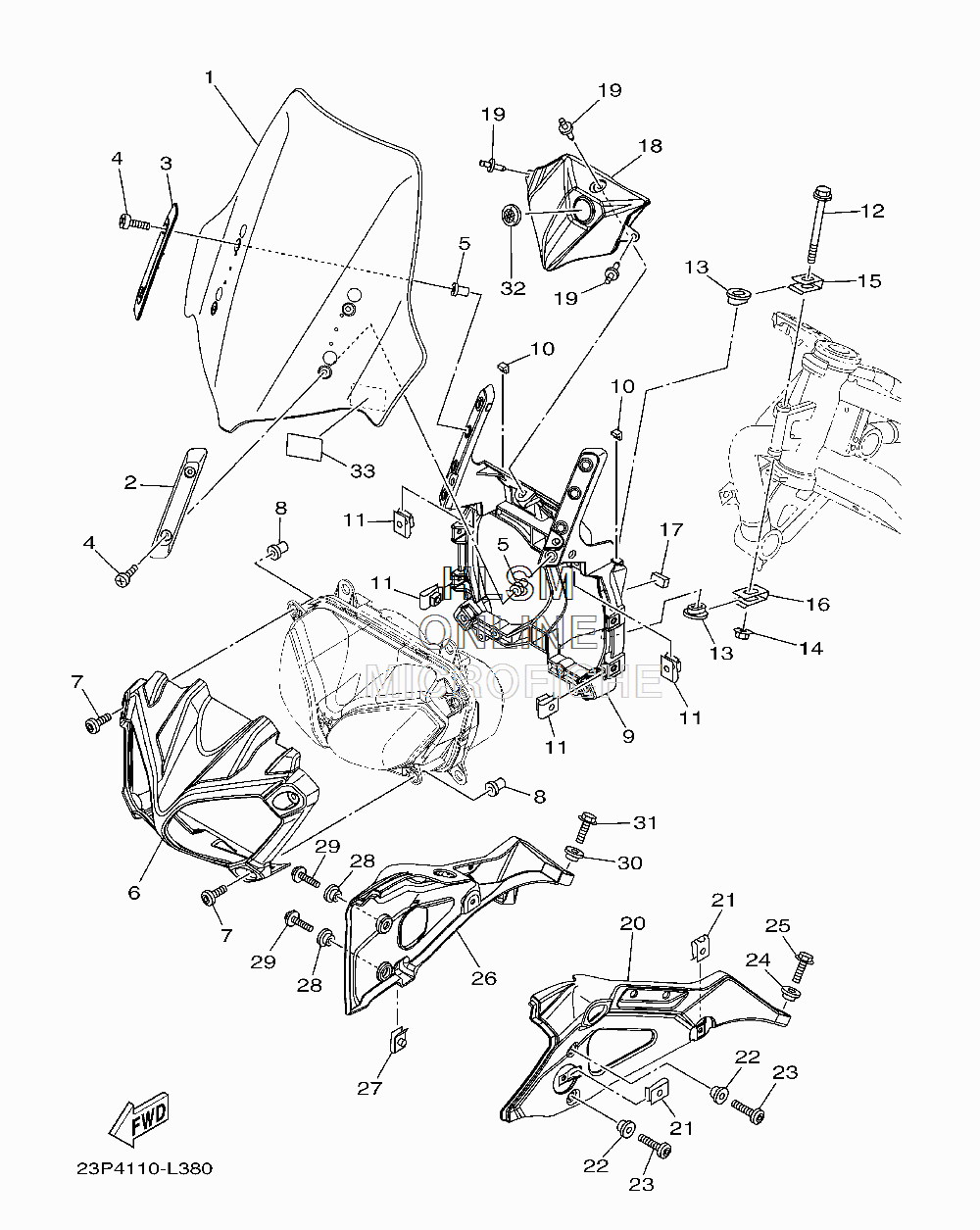

WINDSHIELD для Yamaha SUPER TENERE - 2012 года выпуска
-
№АртикулНазвание
-
123P-28380-00-00 WINDSCREEN ASSYWINDSCREEN ASSY
-
223P-28323-00-00 WASHER, LEG SHIELD (RIGHT)WASHER, LEG SHIELD (RIGHT)
-
323P-28324-00-00 WASHER, LEG SHIELD (LEFT)WASHER, LEG SHIELD (LEFT)
-
498907-05020-00 SCREW, BINDSCREW, BIND
-
590179-05003-00 NUTNUT
-
623P-2835G-00-00 BODY, FRONT UPPER 1BODY, FRONT UPPER 1
-
790111-06038-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
890179-06520-00 NUTNUT
-
923P-28356-00-00 STAY 1STAY 1
-
1090520-02005-00 DAMPER, PLATEDAMPER, PLATE
-
1190183-060A1-00 NUT, SPRINGNUT, SPRING
-
1290105-085A5-00 BOLT, FLANGEBOLT, FLANGE
-
135PS-28373-01-00 COLLARCOLLAR
-
1495707-08500-00 NUT, FLANGENUT, FLANGE
-
1523P-28336-00-00 PLATEPLATE
-
1623P-28397-00-00 PLATE 2PLATE 2
-
1723P-28344-00-00 TAPETAPE
-
1823P-83559-00-00 COVER, METERCOVER, METER
-
1990269-06001-00 RIVETRIVET
-
2023P-2837L-00-00 PANEL, CONSOLE 1PANEL, CONSOLE 1
-
2190183-060A6-00 NUT, SPRINGNUT, SPRING
-
2290387-06048-00 COLLARCOLLAR
-
2390149-06104-00 SCREWSCREW
-
2490387-08080-00 COLLARCOLLAR
-
2595822-08016-00 BOLT, FLANGEBOLT, FLANGE
-
2623P-2837M-00-00 PANEL, CONSOLE 2PANEL, CONSOLE 2
-
2790183-060A6-00 NUT, SPRINGNUT, SPRING
-
2890387-06048-00 COLLARCOLLAR
-
2990149-06104-00 SCREWSCREW
-
3090387-08080-00 COLLARCOLLAR
-
3195822-08016-00 BOLT, FLANGEBOLT, FLANGE
-
324KN-2836B-10-00 TUNING FORK MARKTUNING FORK MARK
-
334B5-2815K-00-00 LABEL, NOTICE WINDSHIELD 1LABEL, NOTICE WINDSHIELD 1
