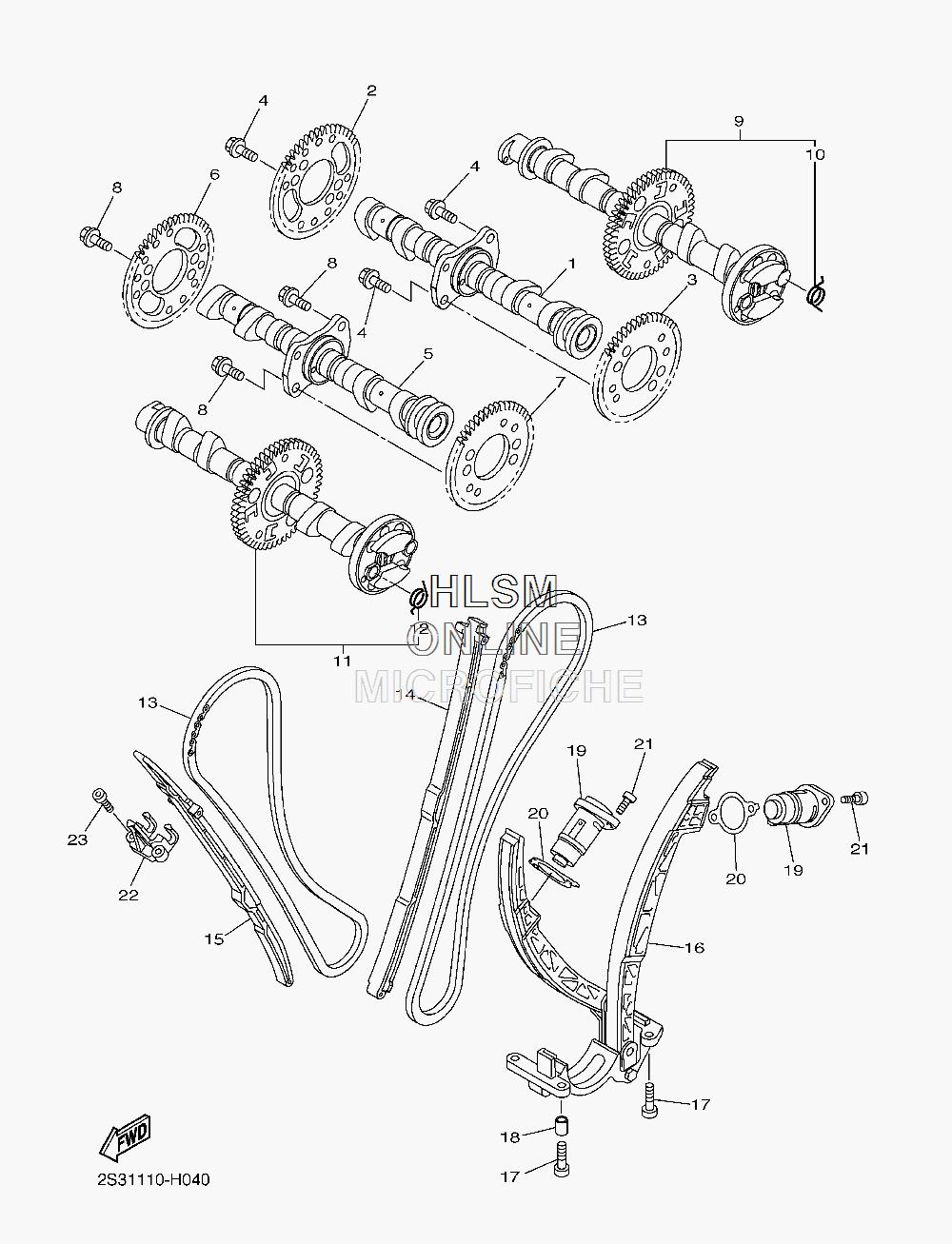

CAMSHAFT W/ CHAIN для Yamaha V MAX - 2012 года выпуска
-
№АртикулНазвание
-
12S3-W1217-00-00 CAMSHAFT SUB ASSY 1CAMSHAFT SUB ASSY 1
-
22S3-12176-00-00 SPROCKET, CAM CHAINSPROCKET, CAM CHAIN
-
32S3-11554-00-00 GEAR 3GEAR 3
-
490105-07006-00 BOLT, FLANGEBOLT, FLANGE
-
52S3-W1217-00-00 CAMSHAFT SUB ASSY 1CAMSHAFT SUB ASSY 1
-
62S3-12176-00-00 SPROCKET, CAM CHAINSPROCKET, CAM CHAIN
-
72S3-11554-00-00 GEAR 3GEAR 3
-
890105-07006-00 BOLT, FLANGEBOLT, FLANGE
-
92S3-12180-00-00 CAMSHAFT ASSY 2CAMSHAFT ASSY 2
-
102S3-12287-00-00 ...SPRING, DECOMPRESSION...SPRING, DECOMPRESSION
-
112S3-12180-10-00 CAMSHAFT ASSY 2CAMSHAFT ASSY 2
-
122S3-12287-00-00 ...SPRING, DECOMPRESSION...SPRING, DECOMPRESSION
-
1394591-49134-00 CHAINCHAIN
-
142S3-12251-00-00 DAMPER, CHAIN 1DAMPER, CHAIN 1
-
152S3-12253-00-00 DAMPER, CHAIN 3DAMPER, CHAIN 3
-
162S3-12250-00-00 CHAIN DAMPER ASSYCHAIN DAMPER ASSY
-
1791312-06025-00 BOLTBOLT
-
1899530-08012-00 PIN, DOWELPIN, DOWEL
-
192S3-12210-01-00 TENSIONER ASSY, CAM CHAINTENSIONER ASSY, CAM CHAIN
-
202S3-12213-00-00 GASKET, TENSIONER CASEGASKET, TENSIONER CASE
-
2190110-06193-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
222S3-12231-00-00 GUIDE, STOPPER 1GUIDE, STOPPER 1
-
2390110-06174-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
