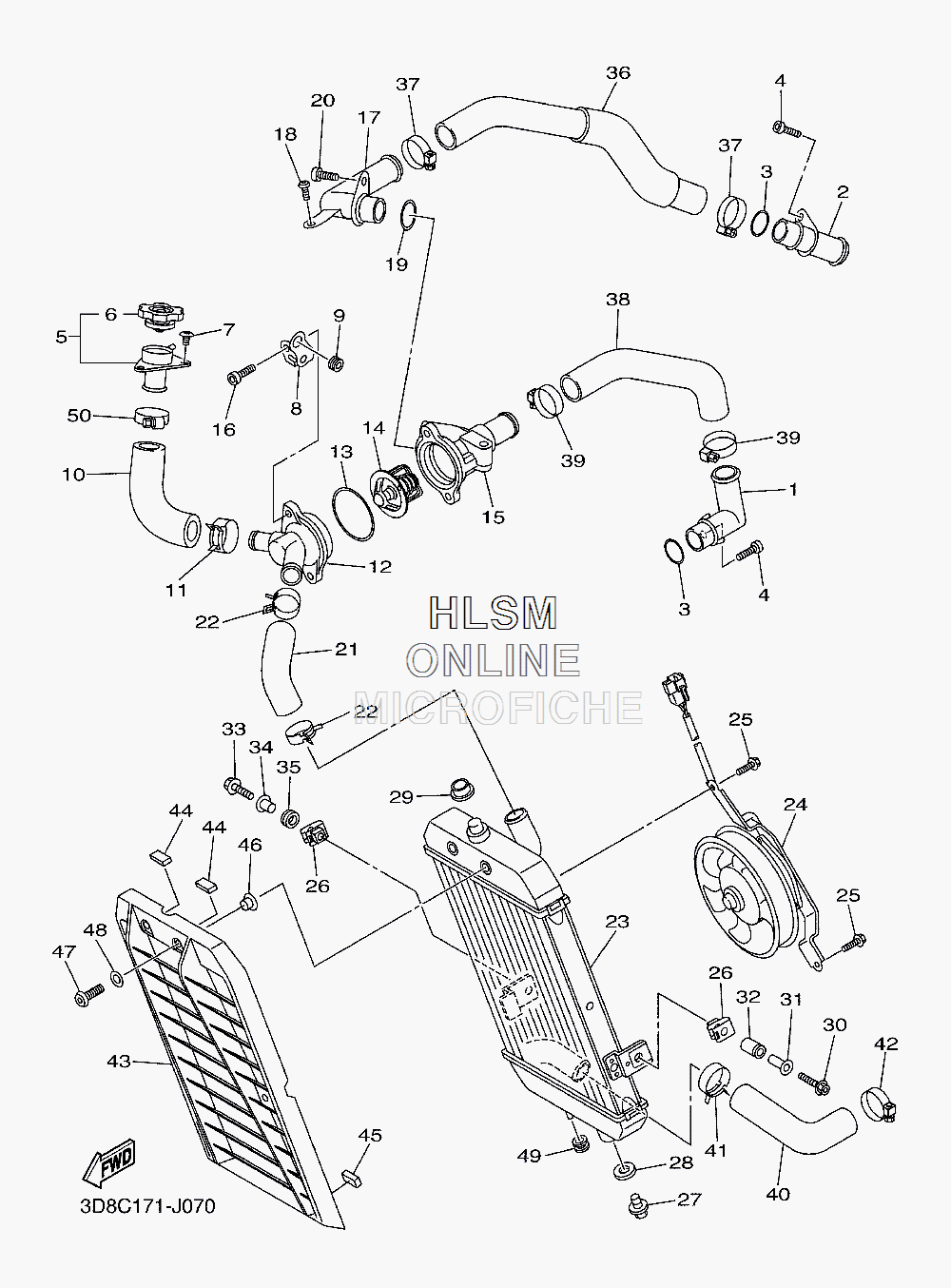

RADIATOR для Yamaha V STAR 1300 TOURER - 2012 года выпуска
-
№АртикулНазвание
-
13D8-12481-00-00 PIPE 1PIPE 1
-
23D8-12482-00-00 PIPE 2PIPE 2
-
393210-18417-00 O-RINGO-RING
-
491312-06014-00 BOLTBOLT
-
54NK-12590-00-00 CONDUCTION ASSYCONDUCTION ASSY
-
63XP-12462-00-00 ...CAP, RADIATOR...CAP, RADIATOR
-
790111-06083-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
83D8-1244E-00-00 BRACKET 1BRACKET 1
-
990480-10517-00 GROMMETGROMMET
-
103D8-12589-10-00 HOSE 6HOSE 6
-
1190467-230A1-00 CLIPCLIP
-
123D8-12413-10-00 COVER, THERMOSTATCOVER, THERMOSTAT
-
1393210-49046-00 O-RINGO-RING
-
141AE-12410-00-00 THERMOSTAT ASSYTHERMOSTAT ASSY
-
153D8-12417-10-00 HOUSING, THERMOSTATHOUSING, THERMOSTAT
-
1691312-06020-00 BOLTBOLT
-
173D8-12476-00-00 PIPE 6PIPE 6
-
1892012-06010-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
1993210-18417-00 O-RINGO-RING
-
2090110-06187-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
213D8-12579-00-00 HOSE 4HOSE 4
-
2290467-280A1-00 CLIPCLIP
-
233D8-12461-10-00 RADIATOR COMPRADIATOR COMP
-
243D8-12405-10-00 BLOWER ASSYBLOWER ASSY
-
253D8-12675-00-00 BOLT, BLOWER HOLDINGBOLT, BLOWER HOLDING
-
263D8-12535-00-00 PLATEPLATE
-
271AA-12561-00-00 PLUG, DRAIN COCKPLUG, DRAIN COCK
-
281AA-12435-00-00 GASKETGASKET
-
2990480-20003-00 GROMMETGROMMET
-
3090110-06261-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
3190387-0614X-00 COLLARCOLLAR
-
324XY-12465-00-00 DAMPER, RADIATORDAMPER, RADIATOR
-
3390110-06263-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
3490387-065G0-00 COLLARCOLLAR
-
3590480-19283-00 GROMMETGROMMET
-
363D8-12576-00-00 HOSE 1HOSE 1
-
3790450-28014-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
383D8-12578-00-00 HOSE 3HOSE 3
-
3990450-28014-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
403D8-12588-00-00 HOSE 5HOSE 5
-
4190467-280A1-00 CLIPCLIP
-
4290450-35001-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
433D8-12467-00-00 COVER, RADIATORCOVER, RADIATOR
-
443D8-21541-00-00 DAMPER 1DAMPER 1
-
453D8-12465-00-00 DAMPER, RADIATORDAMPER, RADIATOR
-
4690387-08076-00 COLLARCOLLAR
-
4790111-06041-00 BOLT,HEX. SOCKET BUTTONBOLT,HEX. SOCKET BUTTON
-
4890201-06096-00 WASHER, PLATEWASHER, PLATE
-
4990480-08003-00 GROMMETGROMMET
-
5090450-28014-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
