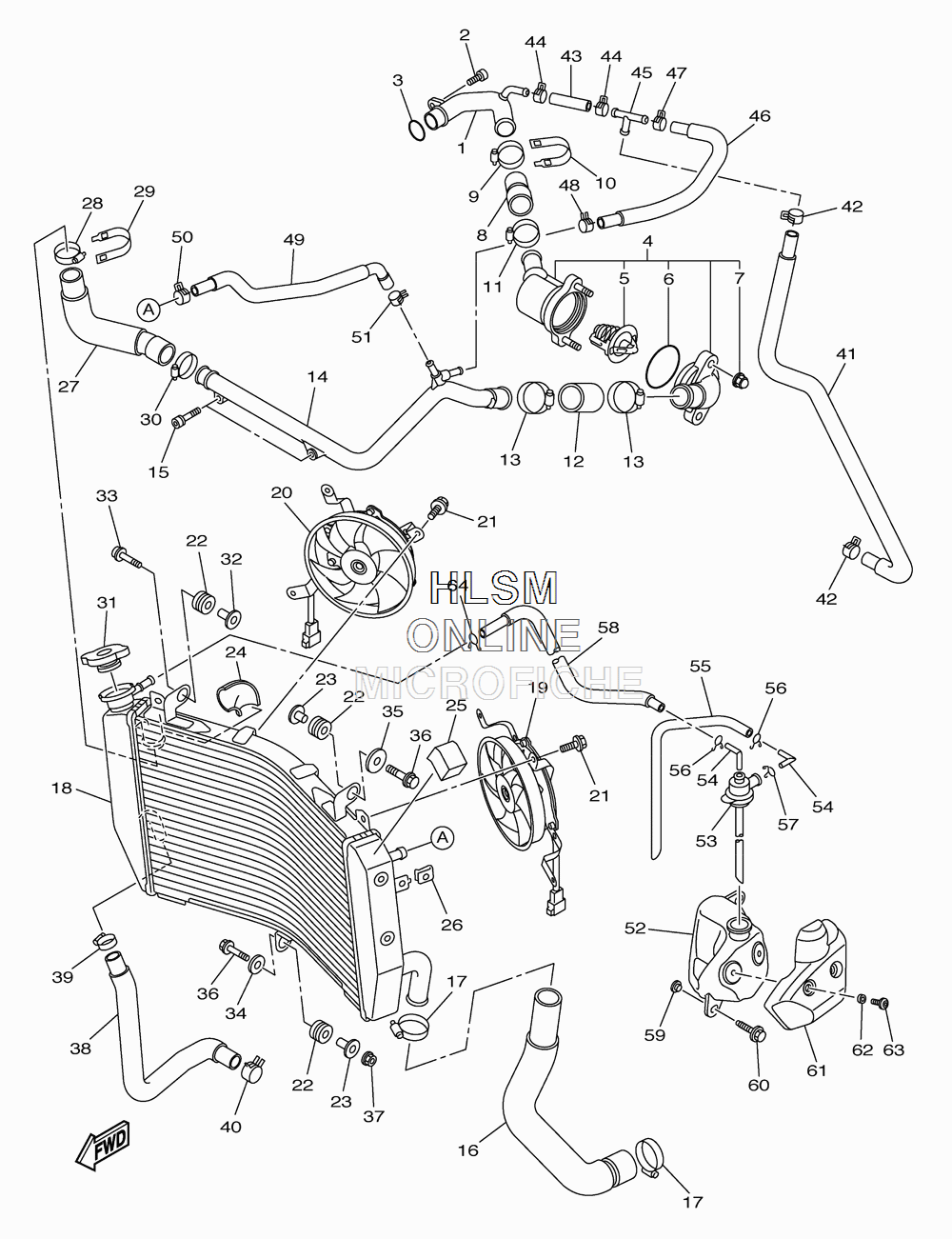

RADIATOR для Yamaha YZF-R1 - 2012 года выпуска
-
№АртикулНазвание
-
114B-12485-00-00 PIPE 5PIPE 5
-
290110-06182-00 BOLT (4MY)BOLT (4MY)
-
393210-235A1-00 O-RINGO-RING
-
414B-12410-00-00 THERMOSTAT ASSYTHERMOSTAT ASSY
-
55LP-12411-00-00 ...THERMOSTAT...THERMOSTAT
-
693210-49046-00 ...O-RING...O-RING
-
790176-06014-00 ...NUT, CROWN...NUT, CROWN
-
84C8-12579-00-00 HOSE 4HOSE 4
-
990450-35001-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
105GV-1246E-00-00 COVER 2COVER 2
-
1190450-38040-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
1214B-12579-00-00 HOSE 4HOSE 4
-
1390450-38040-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
1414B-12482-00-00 PIPE 2PIPE 2
-
1590110-06256-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
1614B-12578-00-00 HOSE 3HOSE 3
-
1790450-35001-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
1814B-12461-00-00 RADIATOR COMPRADIATOR COMP
-
191KB-12405-00-00 BLOWER ASSYBLOWER ASSY
-
201KB-12405-10-00 BLOWER ASSYBLOWER ASSY
-
215GJ-12675-00-00 BOLT, BLOWER HOLDINGBOLT, BLOWER HOLDING
-
2290480-15363-00 GROMMETGROMMET
-
2390387-0614M-00 COLLARCOLLAR
-
2414B-12465-00-00 DAMPER, RADIATORDAMPER, RADIATOR
-
2513S-12688-00-00 DAMPER, SHROUD 7DAMPER, SHROUD 7
-
265SL-12671-00-00 NUT 1NUT 1
-
2714B-12551-00-00 HOSE 7HOSE 7
-
2890450-35001-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
295GV-1246E-00-00 COVER 2COVER 2
-
3090450-38040-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
315SL-12462-00-00 CAP, RADIATORCAP, RADIATOR
-
3290387-0614M-00 COLLARCOLLAR
-
3391317-06030-00 BOLT,HEX SKT HEADBOLT,HEX SKT HEAD
-
3490201-06071-00 WASHER, PLATEWASHER, PLATE
-
3590201-06074-00 WASHER, PLATEWASHER, PLATE
-
3695827-06030-00 BOLT, FLANGEBOLT, FLANGE
-
3795607-06200-00 NUT-UNUT-U
-
3814B-12589-00-00 HOSE 6HOSE 6
-
3990450-22017-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
4090467-200A0-00 CLIPCLIP
-
4114B-1243A-00-00 HOSE 1HOSE 1
-
4290467-11090-00 CLIP,SCISSORCLIP,SCISSOR
-
4314B-1243E-00-00 HOSE 2HOSE 2
-
4490467-11090-00 CLIP,SCISSORCLIP,SCISSOR
-
4590413-07023-00 WAY 3WAY 3
-
4614B-1244G-00-00 HOSE, 4HOSE, 4
-
4790467-11090-00 CLIP,SCISSORCLIP,SCISSOR
-
4890467-11044-00 CLIPCLIP
-
4914B-12552-00-00 HOSE 8HOSE 8
-
5090467-11090-00 CLIP,SCISSORCLIP,SCISSOR
-
5190467-11044-00 CLIPCLIP
-
5214B-21871-00-00 TANK, RECOVERYTANK, RECOVERY
-
5314B-21875-00-00 CAPCAP
-
5426H-21828-00-00 ELBOWELBOW
-
5590445-08036-00 HOSEHOSE
-
5690467-08003-00 CLIPCLIP
-
5790467-10M04-00 CLIPCLIP
-
5814B-1243F-00-00 HOSE, 3HOSE, 3
-
5990387-06681-00 COLLARCOLLAR
-
6090119-06177-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
6114B-2172W-00-00 COVERCOVER
-
6290387-06372-00 COLLARCOLLAR
-
6390111-06119-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
6490467-08075-00 CLIP,SCISSORCLIP,SCISSOR
