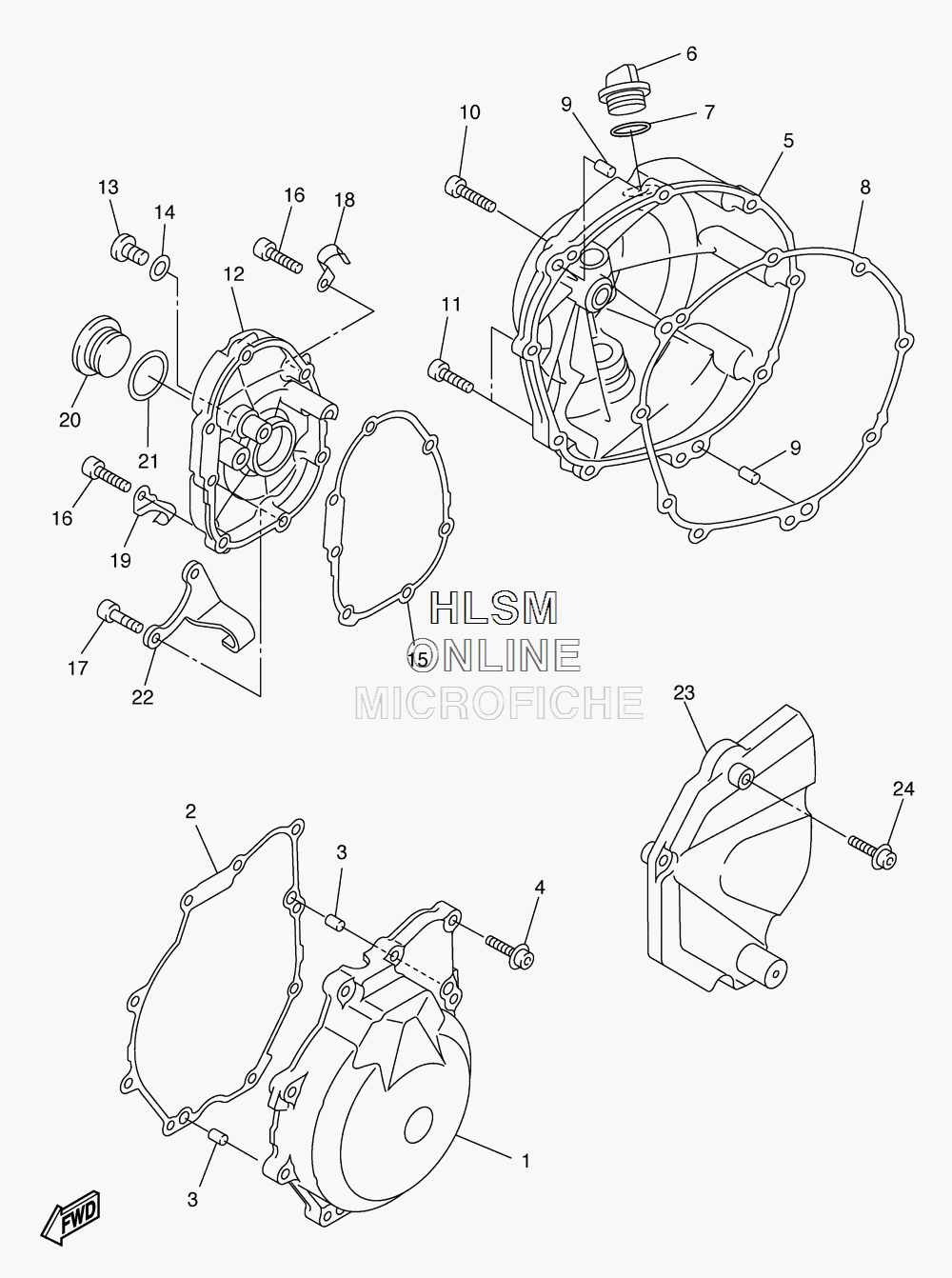

CRANKCASE COVER для Yamaha YZF-R6 (BLUISH WHITE COCKTAIL) - 2012 года выпуска
-
№АртикулНазвание
-
12C0-15411-01-00 COVER, CRANKCASE 1COVER, CRANKCASE 1
-
22C0-15451-01-00 GASKET, CRANKCASE COVER 1GASKET, CRANKCASE COVER 1
-
399530-08012-00 PIN, DOWELPIN, DOWEL
-
490110-06326-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
52C0-15421-00-00 COVER, CRANKCASE 2COVER, CRANKCASE 2
-
63F9-15362-10-00 PLUG, OIL LEVELPLUG, OIL LEVEL
-
793210-27194-00 O-RINGO-RING
-
82C0-15461-01-00 GASKET, CRANKCASE COVER 2GASKET, CRANKCASE COVER 2
-
993608-17263-00 PIN, DOWELPIN, DOWEL
-
1090110-06323-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
1190110-06324-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
122C0-15416-00-00 COVER, OIL PUMPCOVER, OIL PUMP
-
1392014-08014-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
1490430-08143-00 GASKETGASKET
-
152C0-15456-01-00 GASKET, OIL PUMP COVER 1GASKET, OIL PUMP COVER 1
-
1690110-06331-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
1790110-06326-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
1890465-08395-00 CLAMPCLAMP
-
192C0-21823-00-00 CLAMP, HOSECLAMP, HOSE
-
2090340-32004-00 PLUG, STRAIGHT SCREWPLUG, STRAIGHT SCREW
-
2193210-32172-00 O-RINGO-RING
-
222C0-15441-00-00 HOLDER, CLUTCH CABLEHOLDER, CLUTCH CABLE
-
232C0-15418-00-00 COVER, CHAIN CASECOVER, CHAIN CASE
-
2490110-06060-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
