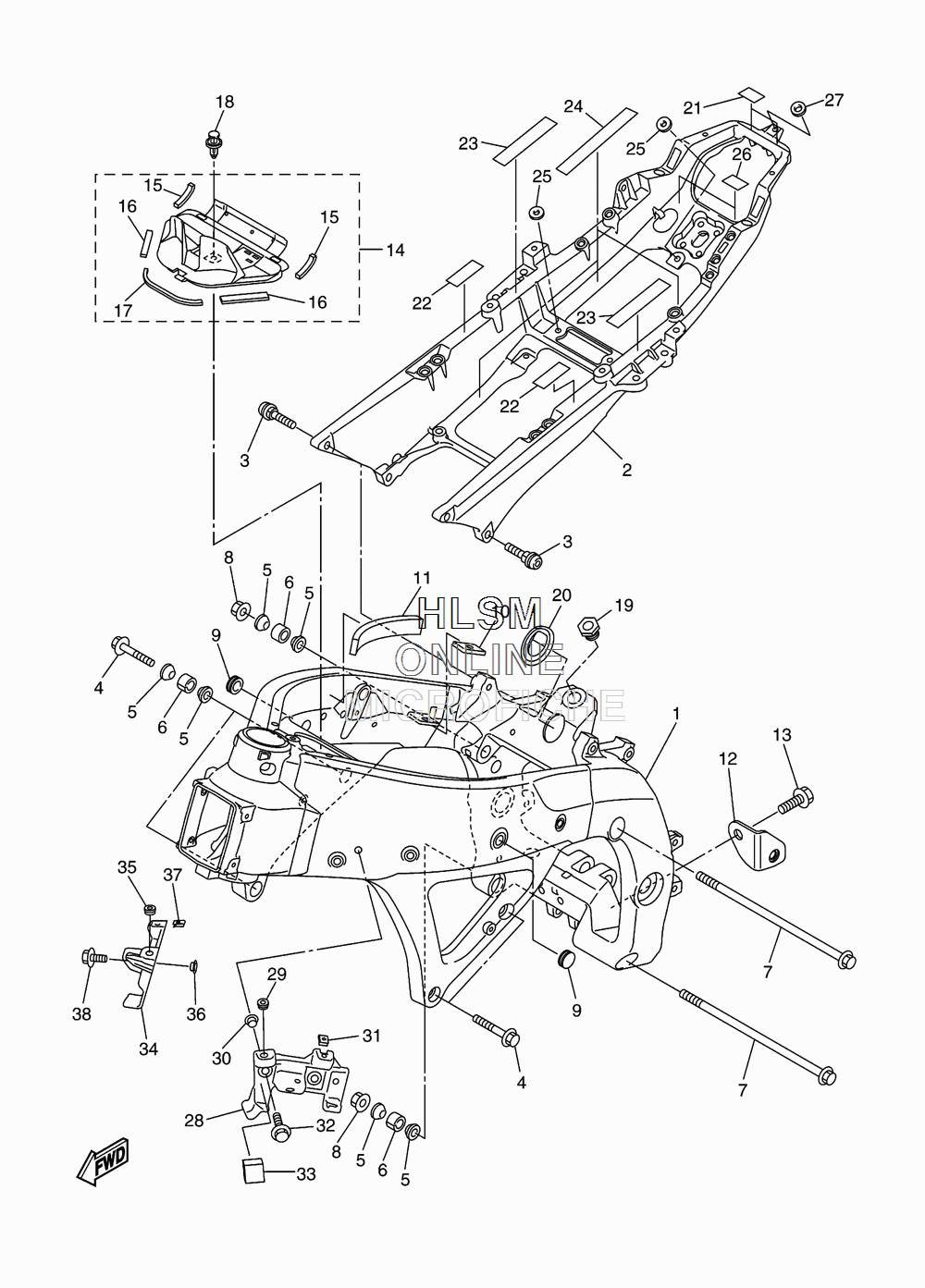

FRAME для Yamaha YZF-R6 WORLD GP 50TH ANNIVERSARY - 2012 года выпуска
-
№АртикулНазвание
-
113S-21110-10-00 FRAME COMP.FRAME COMP.
-
213S-21190-10-00 REAR FRAME COMP.REAR FRAME COMP.
-
313S-2585H-00-00 SCREW,SETSCREW,SET
-
495024-10040-00 BOLT, FLANGE (SMALL HEAD)BOLT, FLANGE (SMALL HEAD)
-
513S-21414-00-00 BOSS, ENGINE MOUNTBOSS, ENGINE MOUNT
-
613S-21424-00-00 BOSS, ENGINE MOUNTBOSS, ENGINE MOUNT
-
790105-12228-00 BOLT, FLANGEBOLT, FLANGE
-
890179-12004-00 NUTNUT
-
990338-15004-00 PLUGPLUG
-
102C0-24182-00-00 DAMPER, LOCATING 2DAMPER, LOCATING 2
-
112C0-21486-00-00 DAMPER 2DAMPER 2
-
1213S-21435-00-00 BRACKET, MUFFLER 1BRACKET, MUFFLER 1
-
1390105-08171-00 BOLT, FLANGEBOLT, FLANGE
-
1413S-2110M-00-00 COVER ASSY 1COVER ASSY 1
-
1513S-2174X-00-00 ...DAMPER...DAMPER
-
162C0-2174Y-00-00 ...DAMPER...DAMPER
-
172C0-21746-00-00 ...DAMPER...DAMPER
-
1890269-07010-00 RIVETRIVET
-
192C0-22241-00-00 BOLT 1BOLT 1
-
202C0-21279-00-00 PLUG, BLINDPLUG, BLIND
-
212C0-21566-00-00 TAPE 1TAPE 1
-
222C0-21567-00-00 TAPE 2TAPE 2
-
2313S-21566-00-00 TAPE 1TAPE 1
-
2413S-21567-00-00 TAPE 2TAPE 2
-
2513S-2111D-00-00 SEAL 1SEAL 1
-
262C0-21566-00-00 TAPE 1TAPE 1
-
2713S-21746-00-00 DAMPERDAMPER
-
2813S-2833A-00-00 BRACKET 7BRACKET 7
-
2990480-10003-00 GROMMETGROMMET
-
3090387-06048-00 COLLARCOLLAR
-
3190183-05076-00 NUT, SPRINGNUT, SPRING
-
3295802-06020-00 BOLT, FLANGEBOLT, FLANGE
-
3313S-12679-00-00 DAMPER, SHROUD 6DAMPER, SHROUD 6
-
3413S-2833E-00-00 BRACKET 8BRACKET 8
-
3590480-10003-00 GROMMETGROMMET
-
3690387-06048-00 COLLARCOLLAR
-
3790183-05076-00 NUT, SPRINGNUT, SPRING
-
3895802-06020-00 BOLT, FLANGEBOLT, FLANGE
