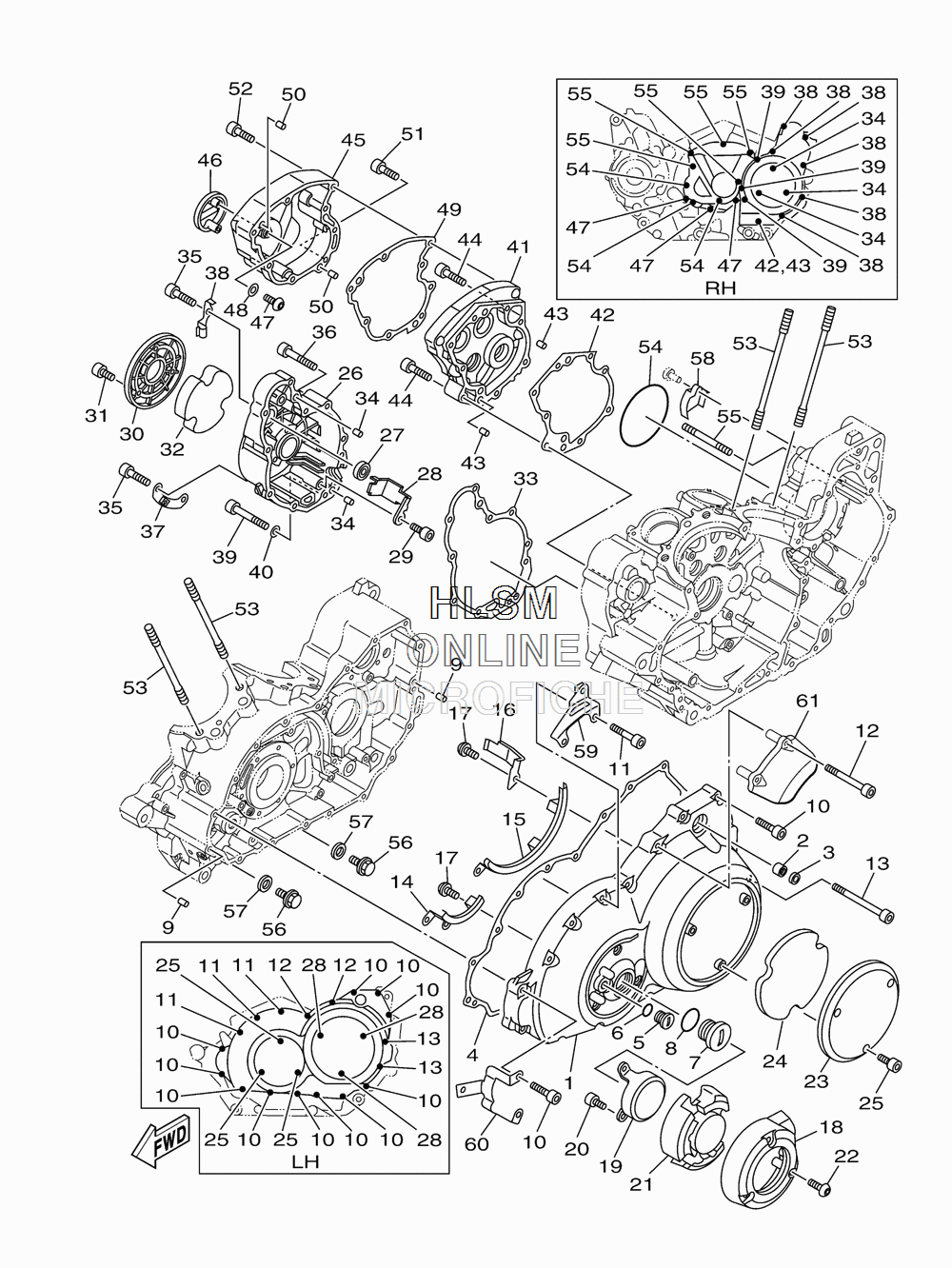

CRANKCASE COVER для Yamaha RAIDER - 2013 года выпуска
-
№АртикулНазвание
-
11D7-15411-10-00 COVER, CRANKCASE 1COVER, CRANKCASE 1
-
293317-11287-00 BEARINGBEARING
-
393102-12224-00 OIL SEAL, SD-TYPEOIL SEAL, SD-TYPE
-
41D7-15451-00-00 GASKET, CRANKCASE COVER 1GASKET, CRANKCASE COVER 1
-
590340-14117-00 PLUG, STRAIGHT SCREWPLUG, STRAIGHT SCREW
-
693210-14369-00 O-RINGO-RING
-
790340-32154-00 PLUG, STRAIGHT SCREWPLUG, STRAIGHT SCREW
-
893210-32172-00 O-RINGO-RING
-
999530-08012-00 PIN, DOWELPIN, DOWEL
-
1091314-06035-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
1191314-06045-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
1291314-06080-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
1391314-06100-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
141D7-15142-00-00 GUIDE 1GUIDE 1
-
151D7-15143-00-00 GUIDEGUIDE
-
165C7-15484-00-00 CLAMP 2CLAMP 2
-
1790149-06069-00 SCREWSCREW
-
181D7-15423-10-00 COVER 2COVER 2
-
195C7-15425-00-00 COVER, GENERATOR 2COVER, GENERATOR 2
-
2091312-05010-00 BOLTBOLT
-
211D7-15316-00-00 DAMPER 1DAMPER 1
-
2292014-06040-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
231D7-15415-10-00 COVER, GENERATORCOVER, GENERATOR
-
241D7-1542A-10-00 DAMPER 1DAMPER 1
-
2590110-06254-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
261D7-15421-00-00 COVER, CRANKCASE 2COVER, CRANKCASE 2
-
2793306-00006-00 BEARINGBEARING
-
284WM-15377-00-00 GUIDE, INLETGUIDE, INLET
-
2990149-06158-00 SCREWSCREW
-
301D7-15492-10-00 COVERCOVER
-
3190110-05013-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
321D7-15326-10-00 DAMPER 2DAMPER 2
-
331D7-15461-00-00 GASKET, CRANKCASE COVER 2GASKET, CRANKCASE COVER 2
-
3499530-08012-00 PIN, DOWELPIN, DOWEL
-
3591314-06035-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
3691314-06055-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
371D7-26298-00-00 PLATE, MIRROR FITTING 1PLATE, MIRROR FITTING 1
-
381D7-2612E-00-00 BRACKETBRACKET
-
3991314-06065-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
4090430-06014-00 GASKETGASKET
-
411D7-15430-01-00 CRANKCASE COVER ASSY 3CRANKCASE COVER ASSY 3
-
421D7-15462-00-00 GASKET, CRANKCASE COVER 3GASKET, CRANKCASE COVER 3
-
4399530-08012-00 PIN, DOWELPIN, DOWEL
-
4490110-06299-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
451D7-15429-10-00 COVER, SHIFTERCOVER, SHIFTER
-
461D7-15427-00-00 COVER, CAP 2COVER, CAP 2
-
4790149-06069-00 SCREWSCREW
-
4890430-06014-00 GASKETGASKET
-
491D7-12286-00-00 GASKET, DECOMPRESSIONGASKET, DECOMPRESSION
-
5099530-08012-00 PIN, DOWELPIN, DOWEL
-
5191314-06025-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
5291314-06040-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
5390116-12240-00 BOLT, STUDBOLT, STUD
-
5493210-85M32-00 O-RINGO-RING
-
5590116-10028-00 BOLT, STUDBOLT, STUD
-
5690340-14005-00 PLUG, STRAIGHT SCREWPLUG, STRAIGHT SCREW
-
57214-11198-01-00 GASKETGASKET
-
581D7-15413-00-00 COVERCOVER
-
595C7-24364-00-00 STAYSTAY
-
605C7-24396-00-00 PLATE (EXCEPT CALIF.)PLATE (EXCEPT CALIF.)
-
615C7-15499-11-00 PROTECTOR, COVERPROTECTOR, COVER
