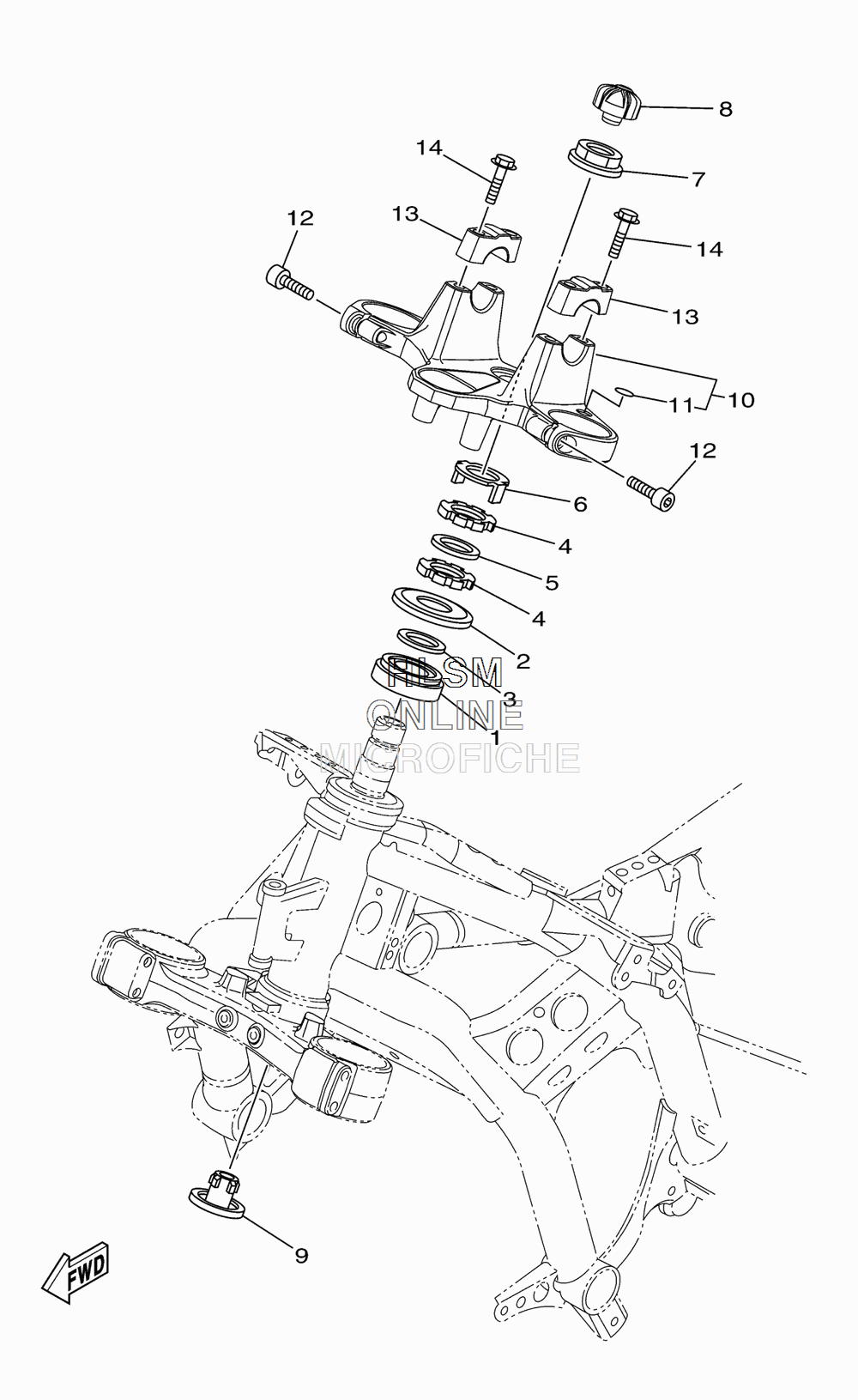

STEERING для Yamaha SUPER TENERE - 2013 года выпуска
-
№АртикулНазвание
-
193332-00078-00 BEARINGBEARING
-
223P-23416-00-00 COVER, BALL RACE 2COVER, BALL RACE 2
-
390201-282R3-00 WASHER, PLATEWASHER, PLATE
-
490179-28650-00 NUT, SPEC'L SHAPENUT, SPEC'L SHAPE
-
590202-28216-00 WASHER, PLATEWASHER, PLATE
-
64GY-23418-00-00 WASHER, SPECIALWASHER, SPECIAL
-
790179-24542-00 NUT, SPEC'L SHAPENUT, SPEC'L SHAPE
-
823P-2319U-00-00 CAPCAP
-
94KM-23123-01-00 COVER, UNDER 1COVER, UNDER 1
-
1023P-23405-00-00 CROWN, HANDLE ASSYCROWN, HANDLE ASSY
-
1114B-2836B-00-00 ...TUNING FORK MARK...TUNING FORK MARK
-
1291312-08030-00 BOLTBOLT
-
1323P-23441-00-00 HOLDER, HANDLE UPPERHOLDER, HANDLE UPPER
-
1495024-08035-00 BOLT, FLANGE (SMALL HEAD)BOLT, FLANGE (SMALL HEAD)
