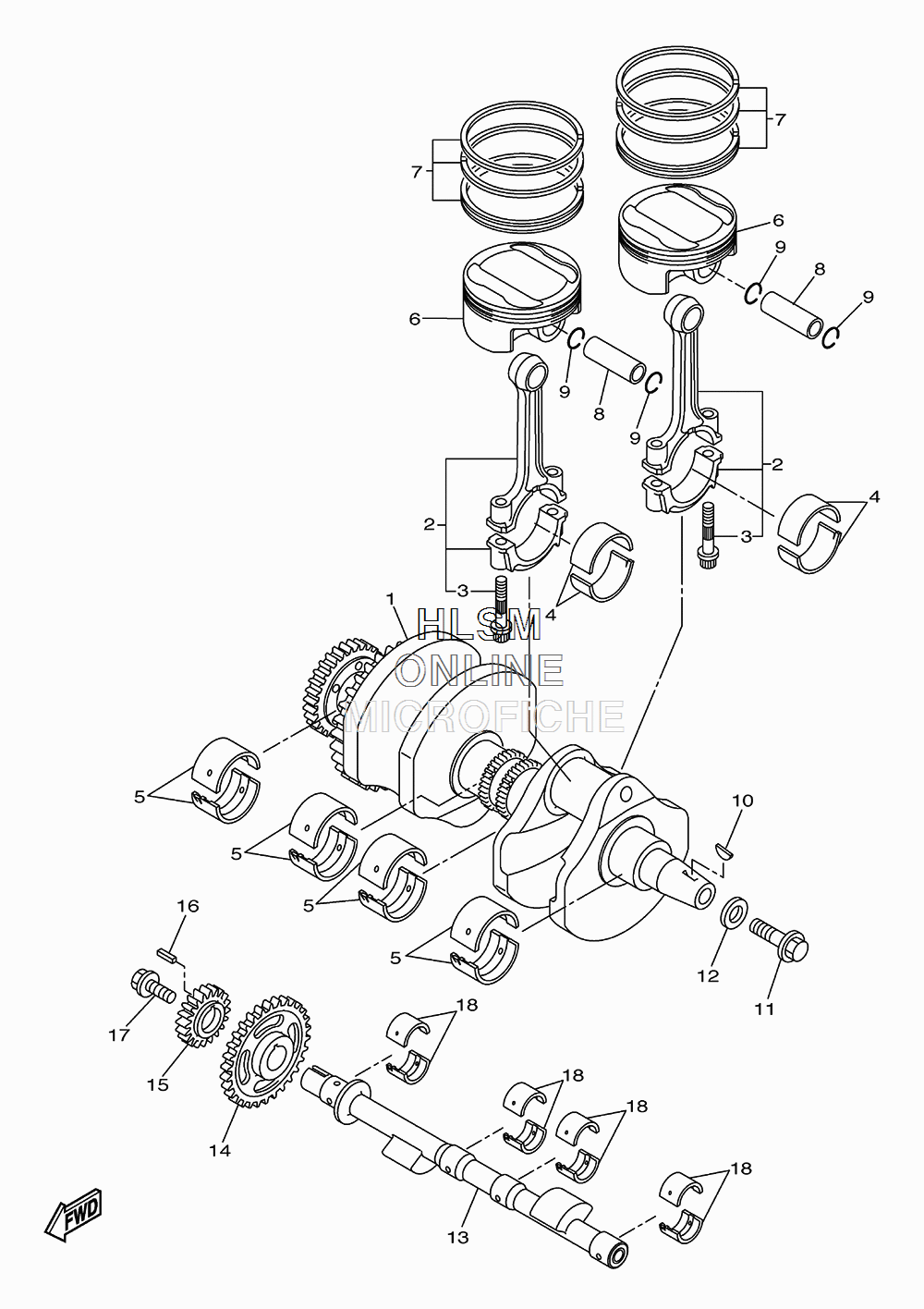

CRANKSHAFT - PISTON для Yamaha V MAX - 2013 года выпуска
-
№АртикулНазвание
-
12S3-11400-00-00 CRANKSHAFT ASSYCRANKSHAFT ASSY
-
22S3-11650-00-00 CONNECTING ROD ASSYCONNECTING ROD ASSY
-
32S3-11654-00-00 ...BOLT, CONNECTING ROD...BOLT, CONNECTING ROD
-
42S3-11656-10-00 PLANE BEARING, CONNECTING ROD (BLACK)PLANE BEARING, CONNECTING ROD (BLACK)
-
42S3-11656-20-00 PLANE BEARING, CONNECTING ROD (BROWN)PLANE BEARING, CONNECTING ROD (BROWN)
-
42S3-11656-30-00 PLANE BEARING, CONNECTING ROD (GREEN)PLANE BEARING, CONNECTING ROD (GREEN)
-
42S3-11656-00-00 PLANE BEARING, CONNECTING ROD (BLUE)PLANE BEARING, CONNECTING ROD (BLUE)
-
52S3-11416-00-00 PLANE BEARING, CRANKSHAFT 1 (BLUE)PLANE BEARING, CRANKSHAFT 1 (BLUE)
-
52S3-11416-20-00 PLANE BEARING, CRANKSHAFT 1 (BROWN)PLANE BEARING, CRANKSHAFT 1 (BROWN)
-
52S3-11416-30-00 PLANE BEARING, CRANKSHAFT 1 (GREEN)PLANE BEARING, CRANKSHAFT 1 (GREEN)
-
52S3-11416-40-00 PLANE BEARING, CRANKSHAFT 1 (YELLOW)PLANE BEARING, CRANKSHAFT 1 (YELLOW)
-
52S3-11416-10-00 PLANE BEARING, CRANKSHAFT 1 (BLACK)PLANE BEARING, CRANKSHAFT 1 (BLACK)
-
62S3-11631-00-00 PISTON (STD)PISTON (STD)
-
72S3-11603-00-00 PISTON RING SET (STD)PISTON RING SET (STD)
-
82S3-11633-00-00 PIN, PISTONPIN, PISTON
-
993450-19095-00 CIRCLIPCIRCLIP
-
1090280-05029-00 KEY, WOODRUFFKEY, WOODRUFF
-
1190105-12005-00 BOLT, WASHER BASEDBOLT, WASHER BASED
-
1290201-12008-00 WASHER, PLATEWASHER, PLATE
-
132S3-11454-00-00 WEIGHT 1WEIGHT 1
-
142S3-11531-00-00 GEAR, BALANCE WEIGHTGEAR, BALANCE WEIGHT
-
152S3-12436-01-00 GEAR, DRIVEGEAR, DRIVE
-
1690282-04056-00 KEY, STRAIGHTKEY, STRAIGHT
-
1790105-10445-00 BOLT, WASHER BASEDBOLT, WASHER BASED
-
182S3-11413-00-00 PLANE BEARING, BALANCE WEIGHT (BLUE)PLANE BEARING, BALANCE WEIGHT (BLUE)
-
182S3-11413-10-00 PLANE BEARING, BALANCE WEIGHT (BLACK)PLANE BEARING, BALANCE WEIGHT (BLACK)
-
182S3-11413-20-00 PLANE BEARING, BALANCE WEIGHT (BROWN)PLANE BEARING, BALANCE WEIGHT (BROWN)
-
182S3-11413-30-00 PLANE BEARING, BALANCE WEIGHT (GREEN)PLANE BEARING, BALANCE WEIGHT (GREEN)
-
182S3-11413-40-00 PLANE BEARING, BALANCE WEIGHT (YELLOW)PLANE BEARING, BALANCE WEIGHT (YELLOW)
