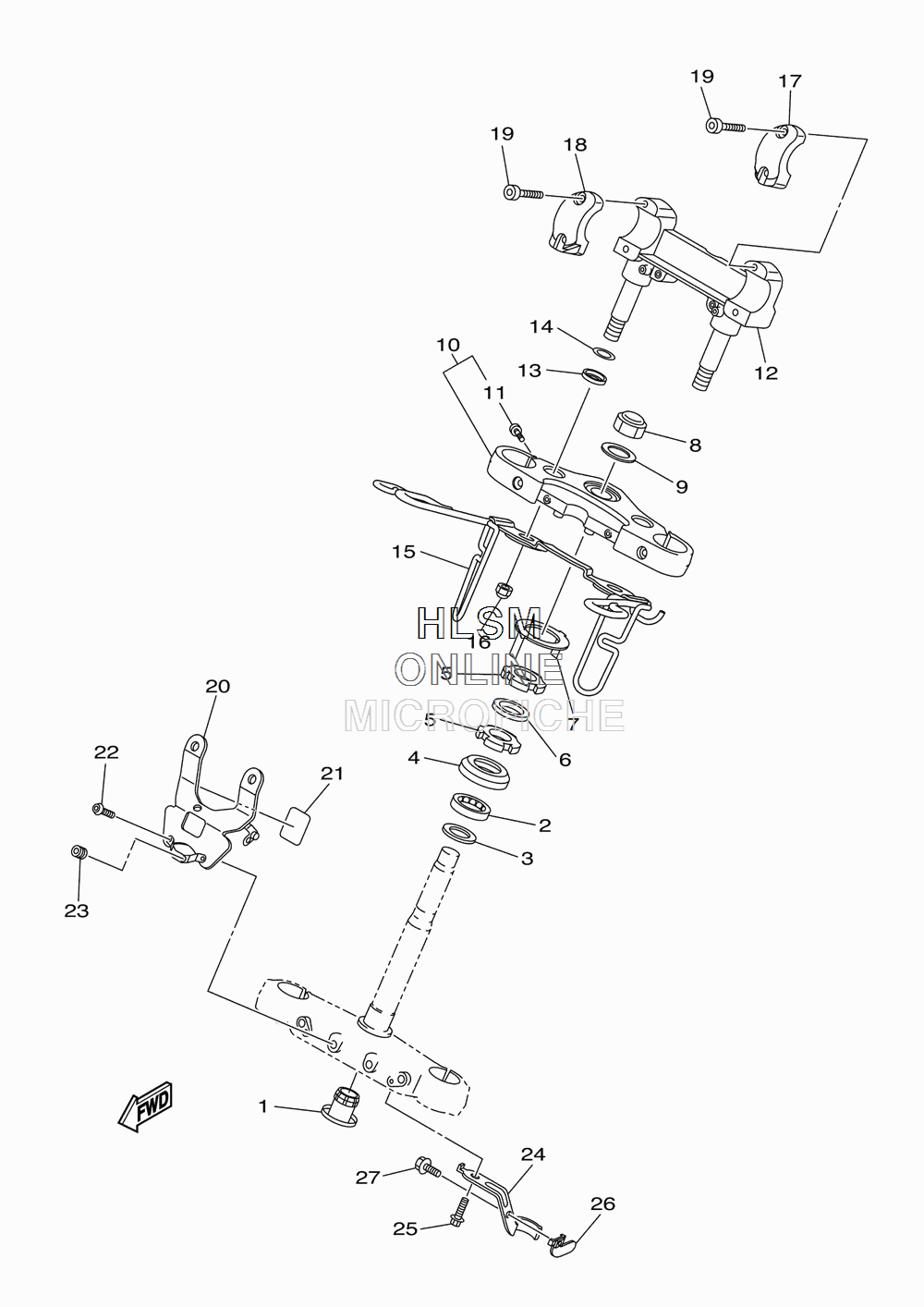

STEERING для Yamaha V STAR 1300 TOURER - 2013 года выпуска
-
№АртикулНазвание
-
14KM-23123-01-00 COVER, UNDER 1COVER, UNDER 1
-
293399-99931-00 BEARING, SPECIALBEARING, SPECIAL
-
390202-24190-00 WASHER, PLATEWASHER, PLATE
-
41W1-23416-00-00 COVER, BALL RACE 2COVER, BALL RACE 2
-
590179-25004-00 NUTNUT
-
690202-26142-00 WASHER, PLATEWASHER, PLATE
-
726H-23418-01-00 WASHER, SPECIALWASHER, SPECIAL
-
890176-22002-00 NUT, CROWNNUT, CROWN
-
990201-220T0-00 WASHER, PLATEWASHER, PLATE
-
103D8-Y2343-01-00 CROWN, HANDLECROWN, HANDLE
-
1191314-08030-00 ...BOLT, HEXAGON SOCKET HEAD...BOLT, HEXAGON SOCKET HEAD
-
123D8-23442-00-00 HOLDER, HANDLE LOWERHOLDER, HANDLE LOWER
-
133DM-23445-00-00 DAMPERDAMPER
-
1490201-14220-00 WASHER, PLATEWASHER, PLATE
-
153D8-23389-20-00 GUIDE, CABLEGUIDE, CABLE
-
1690176-12052-00 NUT, CROWNNUT, CROWN
-
173D8-23441-00-00 HOLDER, HANDLE UPPERHOLDER, HANDLE UPPER
-
183D8-2344A-00-00 HOLDER, HANDLE UPPER 1HOLDER, HANDLE UPPER 1
-
1991312-08025-00 BOLT, SOCKETBOLT, SOCKET
-
203D8-23174-10-00 STAY, HEADLIGHTSTAY, HEADLIGHT
-
213D8-23844-00-00 SEALSEAL
-
2292012-08020-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
2390480-13567-00 GROMMETGROMMET
-
243D8-25886-00-00 HOLDER, BRAKE HOSEHOLDER, BRAKE HOSE
-
2590105-06135-00 BOLT, FLANGEBOLT, FLANGE
-
263D8-25887-00-00 HOLDER, BRAKE HOSEHOLDER, BRAKE HOSE
-
2795027-06010-00 BOLT, FLANGEBOLT, FLANGE
